3. Reconnect transmitter battery pack and reinstall radio back
cover and cover screws.
After making a limit the throttle stick travel you have to recalibrate
the transmitter stick in the software menu, see section "Calibration
of Proportional Controls”.
E
D
5
5
1
A
C
B
2
3

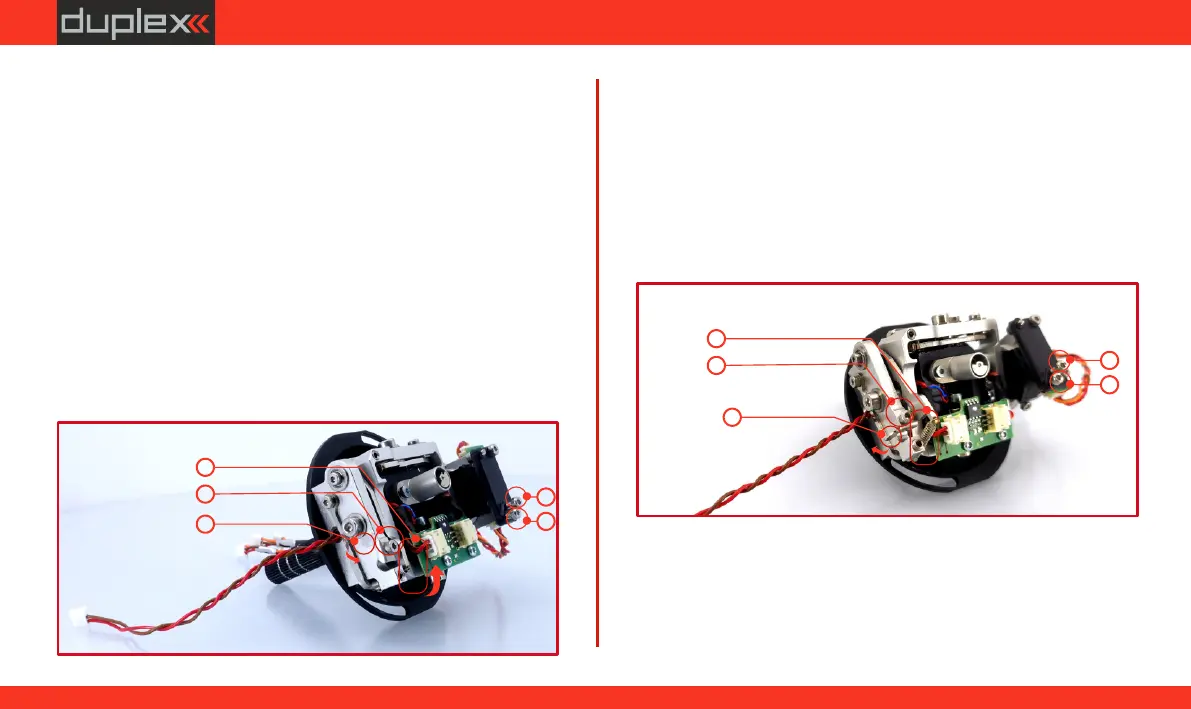

5.1.6 Changing the transmitter mode
The transmitter is equiped with universal multimode gimbals. Both
gimbals are identical and can be adjusted mechanically for modes 1-
5. After mechanical adjustment it is necessary to set a specific
transmitter mode in the menu System –> Configuration –> Stick
mode 1-4.
To change the quad sticks settings, unscrew the back cover of the
transmitter
and disconnect the battery connector.
A. Setting the quad stick into the mode without locking
the middle position - gas
1.A. Loosen the screw
2.C. Lift the lever B so as it is possible to arrest the lock
3. Turn the lock C 90° in the direction of the arrow and arrest the lever
B in the upper position.
4.A. Tighten the screw
5.DE Tightening the the screws and sets the desired arresting with
steps and smooth brake.
B. Setting the multi-mode gimbal into the mode with
locking the middle position - elevator.
E
D
5
5
1
A
C
B
2
3
1.A. Loosen the screw
2.B. Slightly lift the lever
3.CB Turn the lock in the direction of the arrow and arrest the lever
in the upper position.
4.C Move the lever in the direction of the arrow to release the lever
B.
45
