4.8. Handling
The DC-16 transmitter can be comfortably carried by holding it for
the antenna cover/handle as shown on the picture.
Before each flying session, and especially with a new
model, it’s important to perform a range check.
If you are operating a model with a DC-16
transmitter do not shield and avoid contact of the
transmitter antenna with your body.
Warning:
2.2.

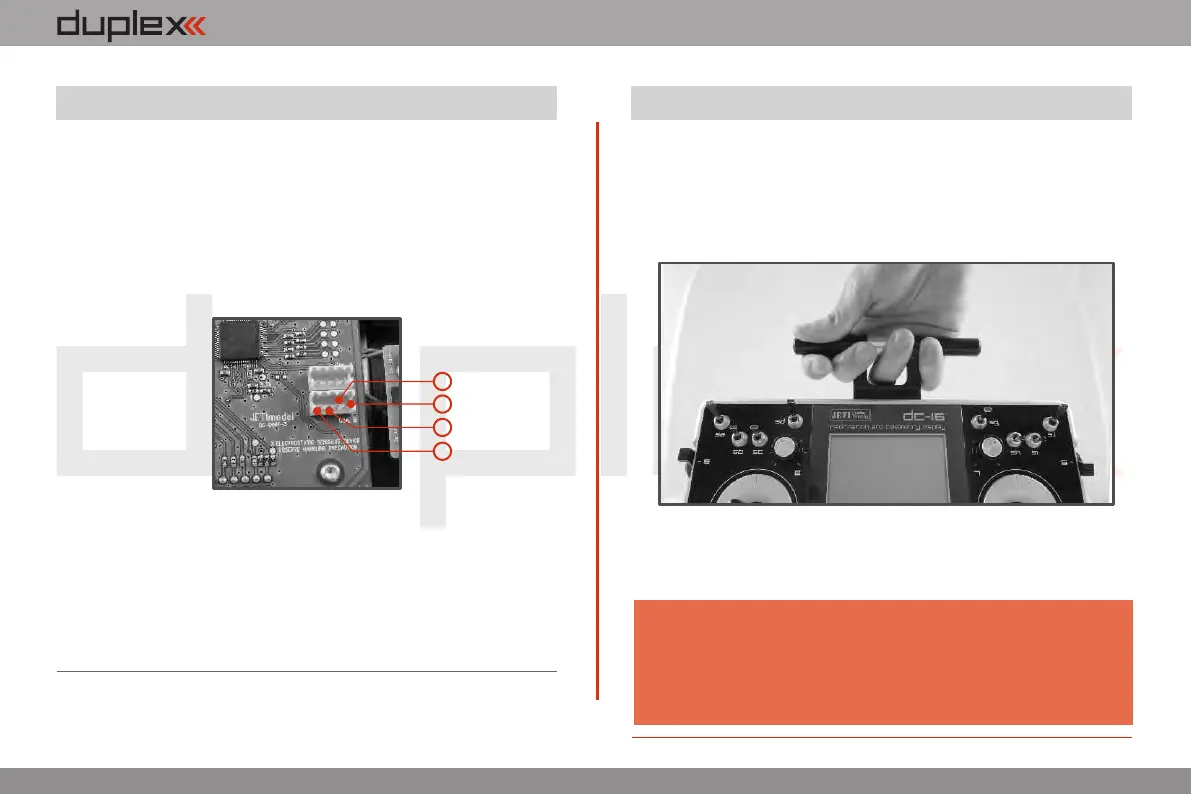

4.7. PPM Output Connector
The PPM output is accessible via connector labeled „B“. This
connector features the non-stabilized battery voltage output in the
range of 3,2V - 4,2V (max. 1A) which can be used as power supply for
the connected HF module as well as for the PPM signal output. The
transmitter output functions are in the form of a standard PPM
signal.
3
1. Reserve pin (do not connect)
2. Positive pin
3. Negative pin
4. PPM signal output (3V logics)
4
2
1
