JF 2D - Motor Installation

13
c) Fix the motor on the rails (7) as the side image.
d) Mount the machine pulley (3) again.
e) Mount the pulley (6) that came with the machine in the
shaft of your motor, fixing it with a keyway.
IMPORTANT: See the following pages to get different
rotations work, depending on the diameter of the pulleys
used.
f) Make the aligment between the motor pulley (6) and
the machine (3), according instructions on this manual.
g) Install the belt (8) according picture aside and adjust
the tightening according instructions on this manual.
h) Install the protective cover (9).
WARNING:
The cover belt is not included with the
machine when it leaves the factory
without a motor coupled.
You can purchase the standard
safeguards provided by JF.
The use of the equipment without the
required cover belt or guards is
prohibited.
6
6
3
7
8
9

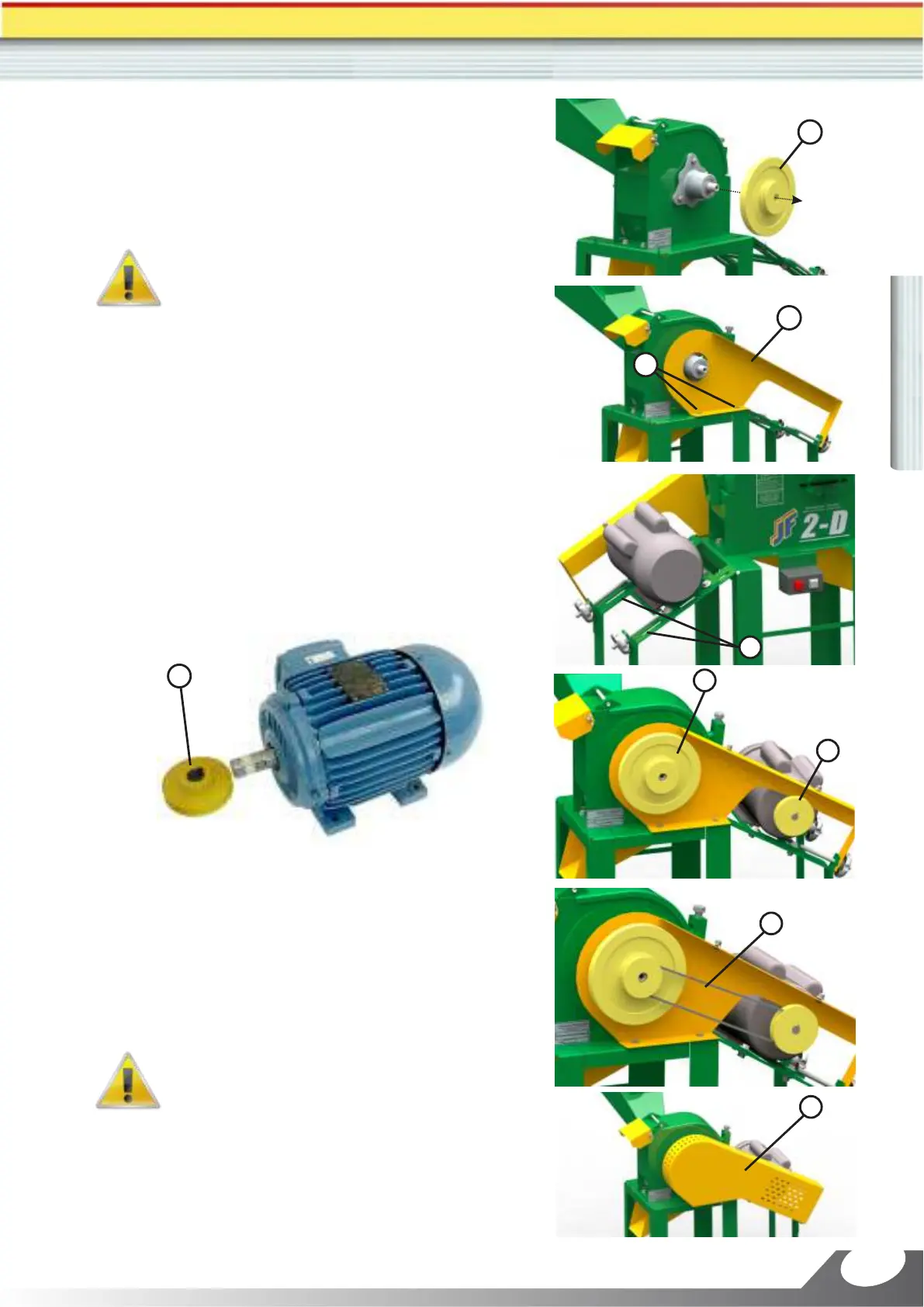

4.3- Motor installation
a) Draw out the pulley (3) of the machine.
b) Attach the protection (4) with the screws (5).
IM PO R TAN T: C h ec k th e pow e r
requirements of the motor on page 10.
There you can find the correct work speed
and the pulley diameter of the motor and
the machine.
3
4
5
OPERATION TECHNICAL MANUAL - MILL JF 2D
English
