4.4- Assembly of the detached parts
Feeding nozzle (1)
It drive the grains to the disintegrator, as well as to
introduce the maize plants, sugar cane, grass etc.

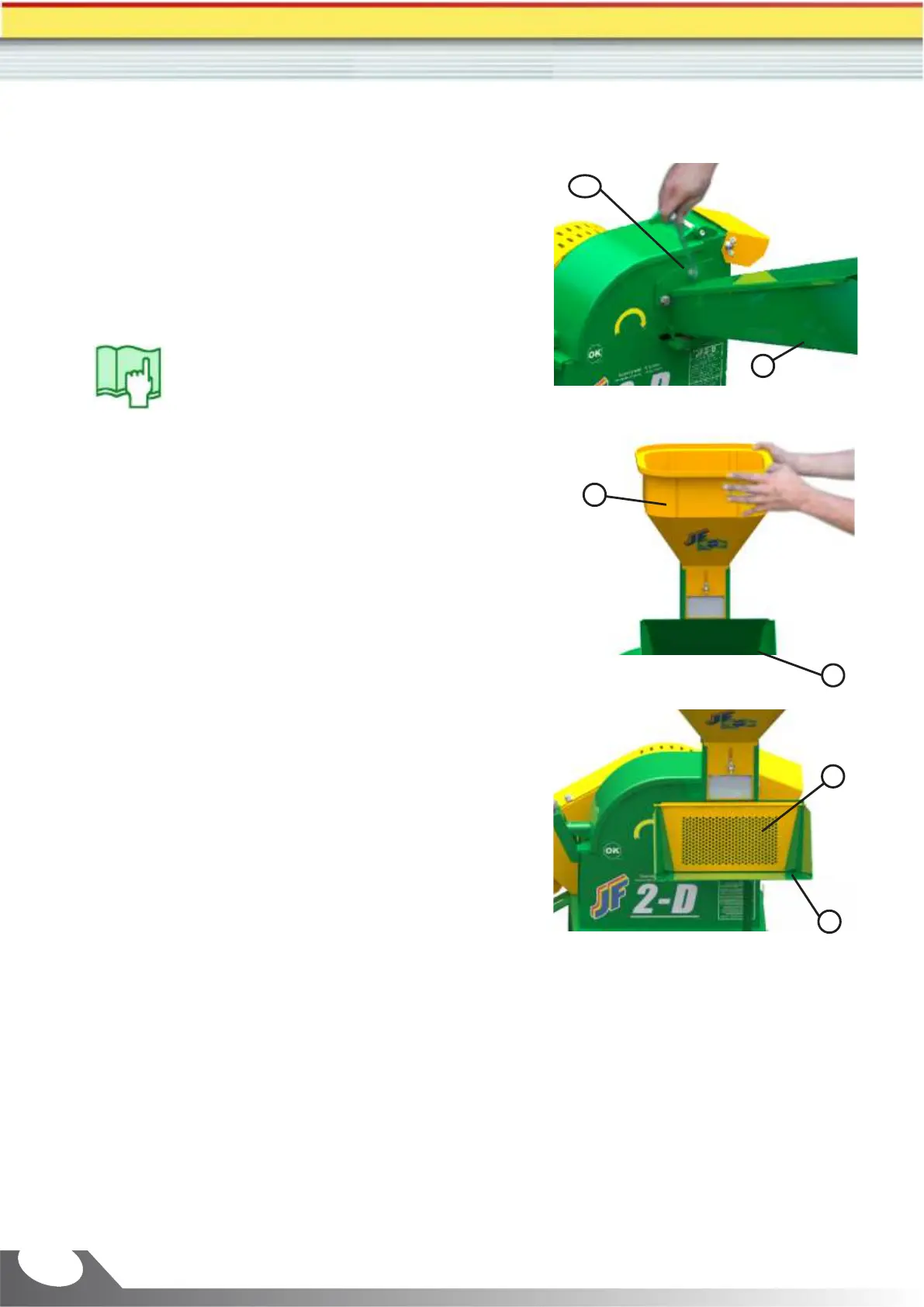

Fasten the chute (1) according picture aside, using tree
bolts (1a) that you find on machine.
Grain hopper (2)
It store the grains that will be directed to the impeller.
Install the grain hopper (2) into feeding nozzle (1) and
push it to fit correctly, according the picture aside.
Protection screen (3)
Serves to avoid that the particles of ground products to
become throw off the nozzle (1).
Fit protection screen (3) on the nozzle (1), according the
picture aside.
1
1a
3
1
1
2
If you have difficulty in the assemble of the
feeding nozzle, remove the counter-knife and
set it with the feeding nozzle.
