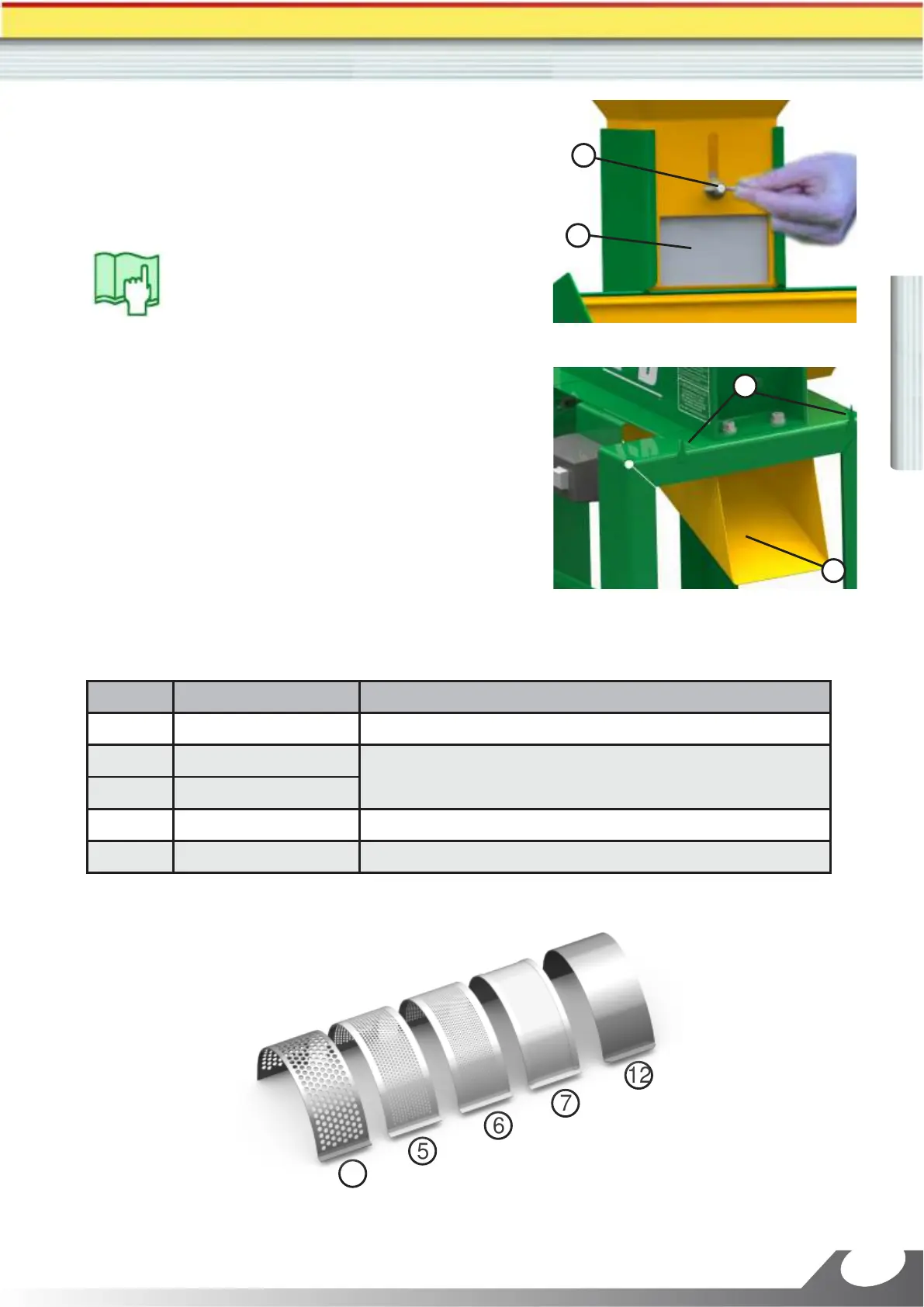

f) Adjust the amount of grains (flow) that leave the
hopper towards the impeller.
To do it, loosen the wing nut (8) and push the doser (9)
upward on downward, according desired. Then, re-
tighten the nut (8).
g) To recolect the desintegrated product that flow
through lower nozzle (10), hang a bag on the hooks
(11).
Sieve chart - JF 2D on grain disintegrator configuration
8
11
10
9
Note:
The grain flow must be adjusted according
the applied motor power, sieve holes
diameter and product type.
Sieve
Holes diameter
Usage
4
10 mm
Broken corn - gross
5
5 mm
Broken corn, sorghum and subproducts
6
3 mm
7
0,8 mm
Corn meal, wheat meal and rye meal
12
Lower sealing
See its usage on the next page
12
7
6
5
4
