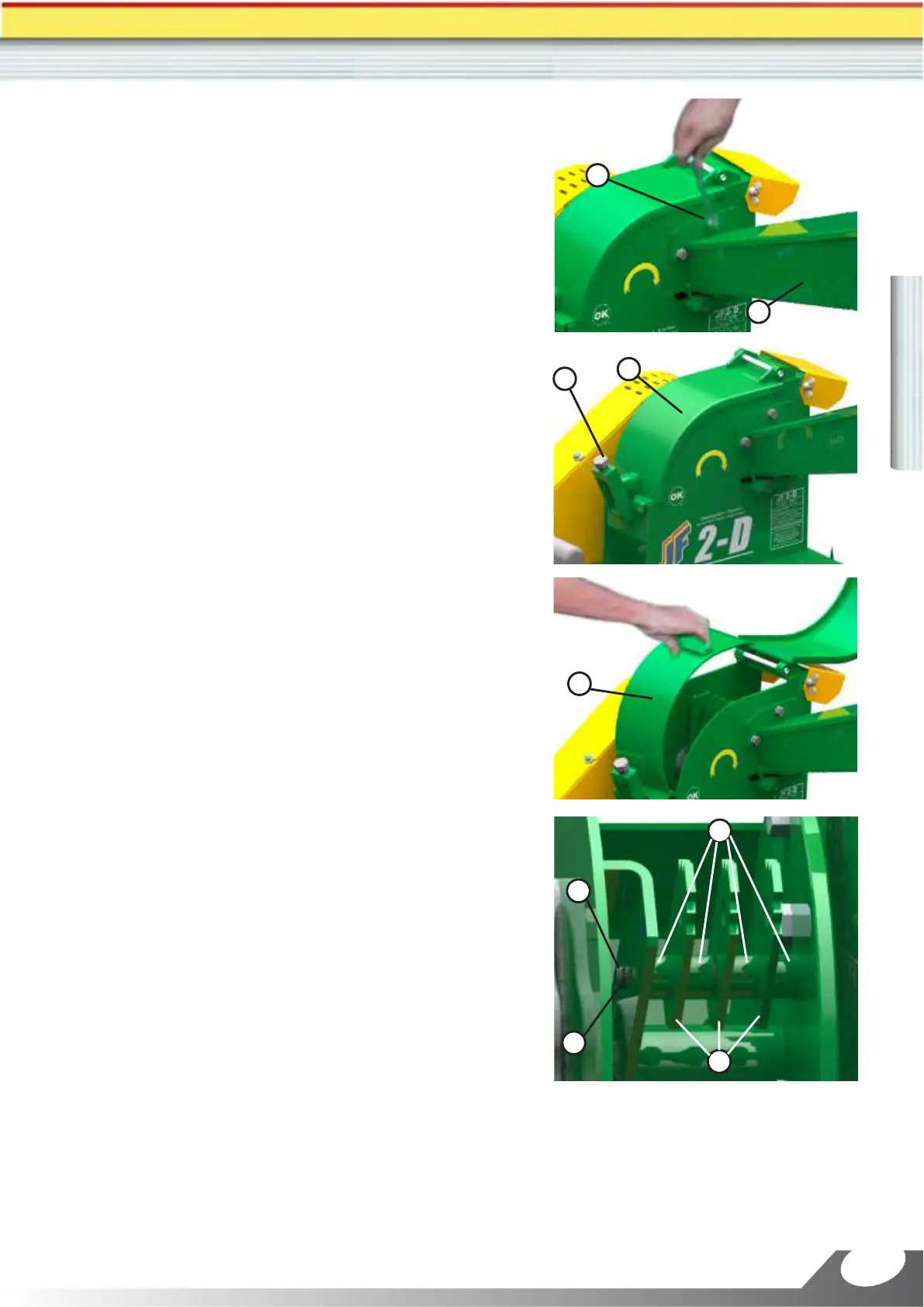

Procedure:
a) Remove the feeding chute (2) loosing the bolts (3).
b) Loosen latch (4) and raise the cover (5).
c) Remove the countercover (6).
d) Remove destructively the cotter pin (7) of each one of
the pins (8).
e) Push the pins (8) backward and remove them
through the chute assembly outlet (2), taking care for
not letting to fall the hammers (1) and shims (9).
f) Being about the first change of hammers position, to
use the chopper face B of the same ones now (see
previous page).
For that, introduce the pins (8) through the outlet of
chute (2) and assemble shims (9) and hammers (1).
In an alternate way, according picture side.
g) Very important: Install a cotter pin (7) on each one
of the pins (8).
h) Replace the countercover (6).
I)Close cover (5), rising and tighten latch (4).
j) Reinstall the feeding chute (2).
