Axles, Drive Shafts, Wheels and Tires
5.2
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013

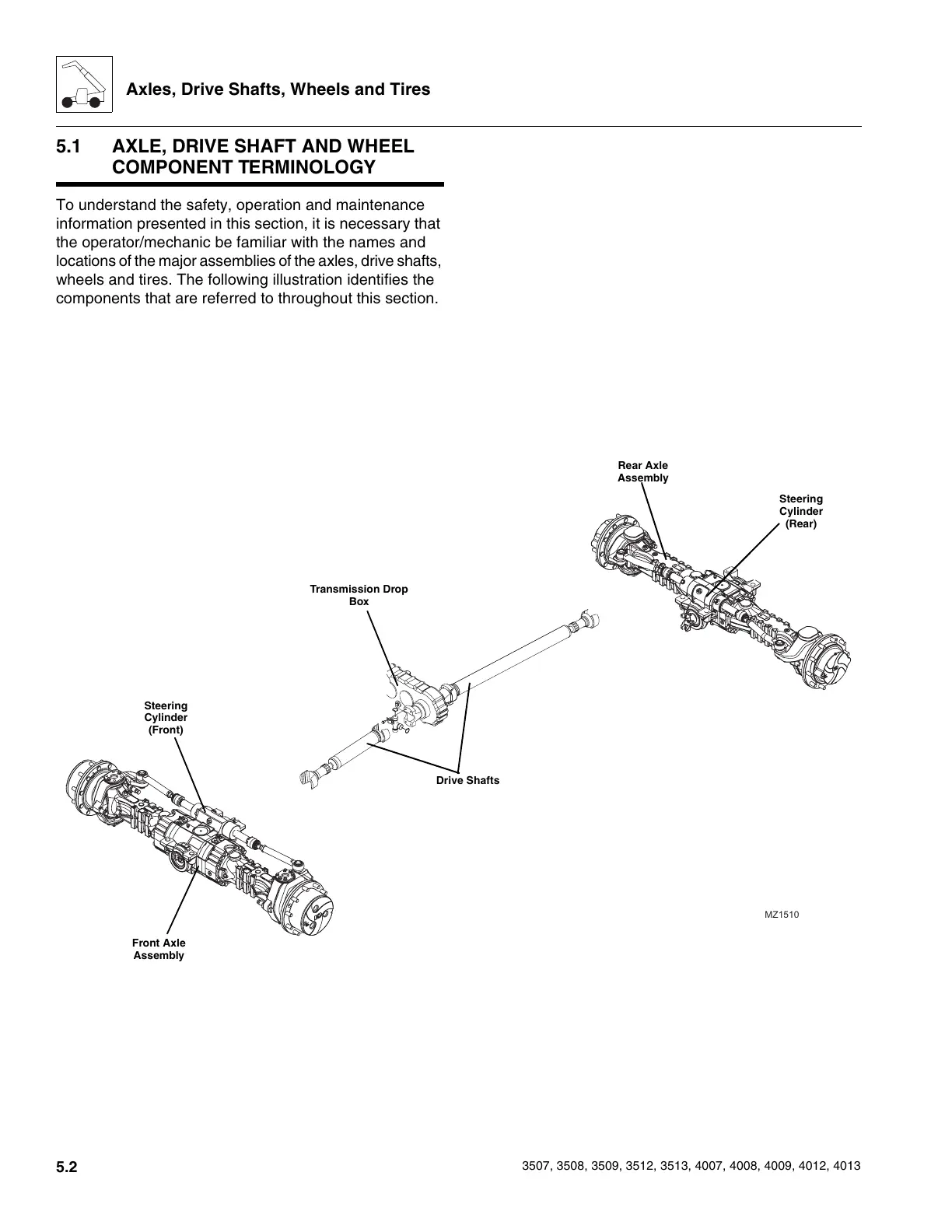

5.1 AXLE, DRIVE SHAFT AND WHEEL
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the axles, drive shafts,
wheels and tires. The following illustration identifies the
components that are referred to throughout this section.
MZ1510
Rear Axle
Assembly
Steering
Cylinder
(Front)
Front Axle
Assembly
Steering
Cylinder
(Rear)
Drive Shafts
Transmission Drop
Box
