Transmission:
6.2
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
6.1 TRANSMISSION ASSEMBLY
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the transmission.

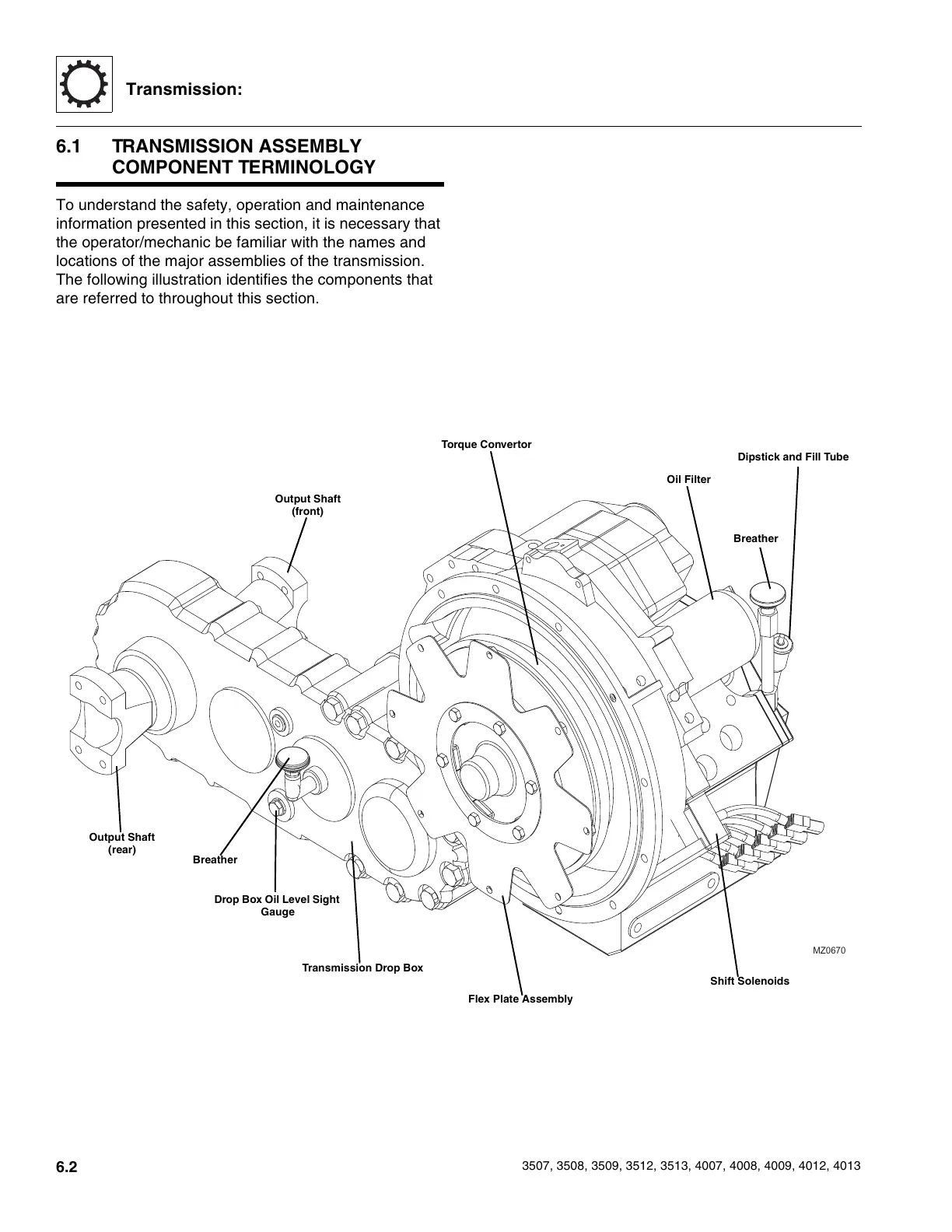

The following illustration identifies the components that
are referred to throughout this section.
MZ0670
Output Shaft
(front)
Torque C onv ertor
Dipstick and Fill Tube
Breather
Output Shaft
(rear)
Drop Box Oil Level Sight
Gauge
Breather
Transmission Drop Box
Flex Plate Assembly
Shift Solenoids
Oil Filter
