7.3
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
Engine: Perkins 1104-42 & 1104-42T
7.1.2 Component Terminology
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the engine components. The following
illustration identifies the components that are referred to
throughout this section.

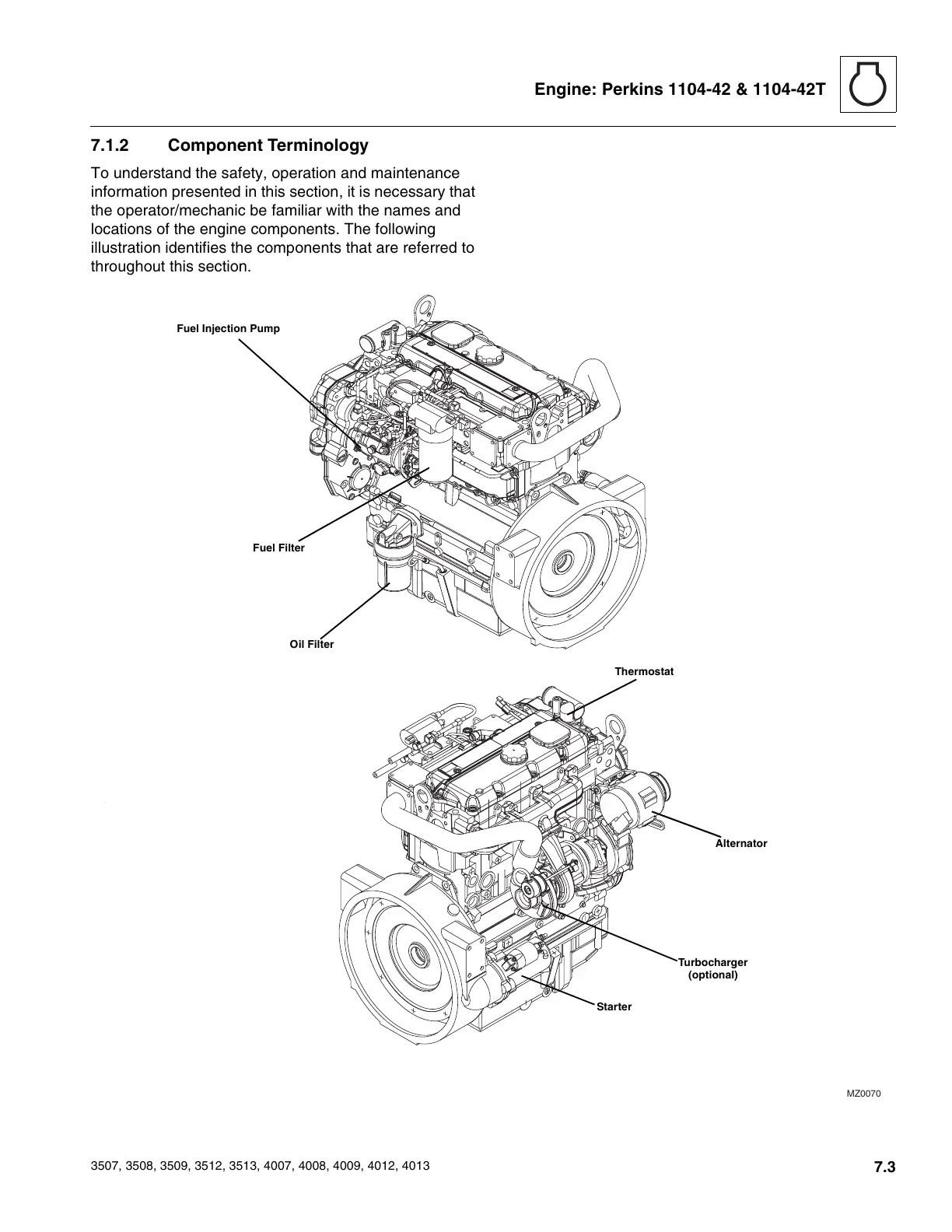

MZ0070
Turbocharger
(optional)
Fuel Injection Pump
Oil Filter
Thermostat
Fuel Filter
Alternator
Starter
