Axles, Drive Shafts, Wheels and Tires
5.12
3507, 3508, 3509, 3512, 3513, 4007, 4008, 4009, 4012, 4013
5. Repeat steps 3 and 4 for the other side of the axle.

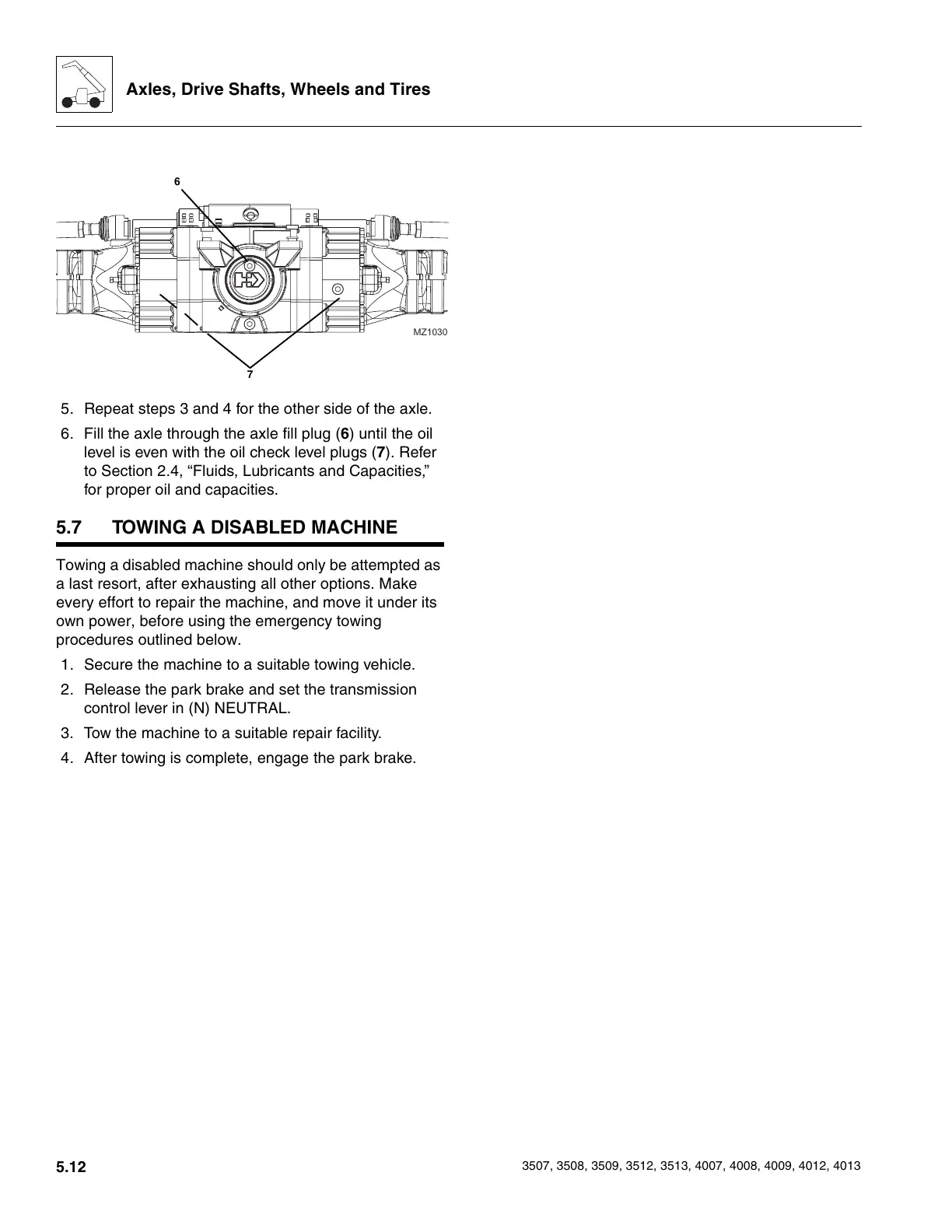

6. Fill the axle through the axle fill plug (6) until the oil
level is even with the oil check level plugs (7). Refer
to Section 2.4, “Fluids, Lubricants and Capacities,”
for proper oil and capacities.
5.7 TOWING A DISABLED MACHINE
Towing a disabled machine should only be attempted as
a last resort, after exhausting all other options. Make
every effort to repair the machine, and move it under its
own power, before using the emergency towing
procedures outlined below.
1. Secure the machine to a suitable towing vehicle.
2. Release the park brake and set the transmission
control lever in (N) NEUTRAL.
3. Tow the machine to a suitable repair facility.
4. After towing is complete, engage the park brake.
MZ1030
7
6
