·13·

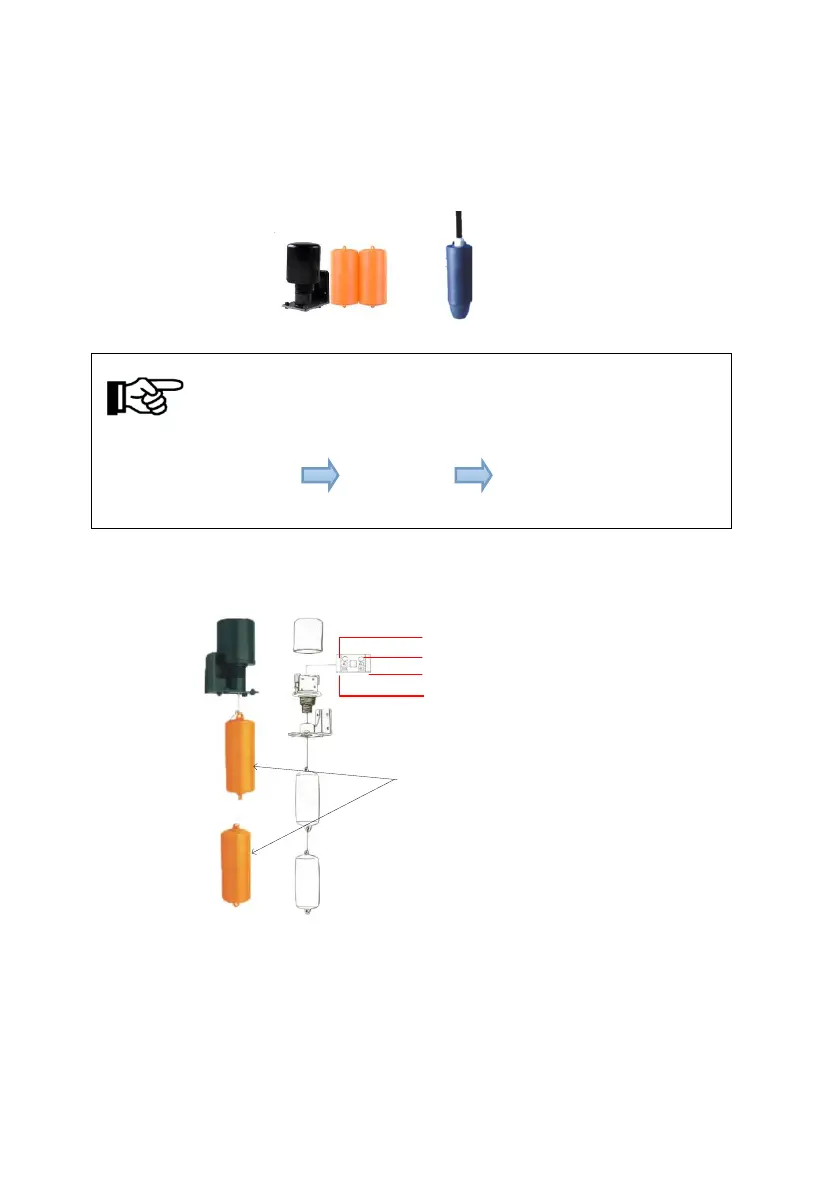

3.6.2 Water level sensor connection
Two kinds of water level sensor you can select are shown below:
Sensor A Sensor B
Notice！
If you select overflow protection water level sensor, you need to set the value of “OF-F”,
the LCD menu ”Settings” "Para Set" "OF-F" to modify to “ON”. The
setting method with reference to “21 Commissioning” .
If you selected water level sensor A, then water sensor installation method is
shown below:
B1 connect white cable
B2 connect green cable
A2 connect green cable
A1 connect black cable
Note: Both yellow shrub-
like hammer, you need
filled water, when you
install sensor A
The detail figure of Sensor A
