Page 8

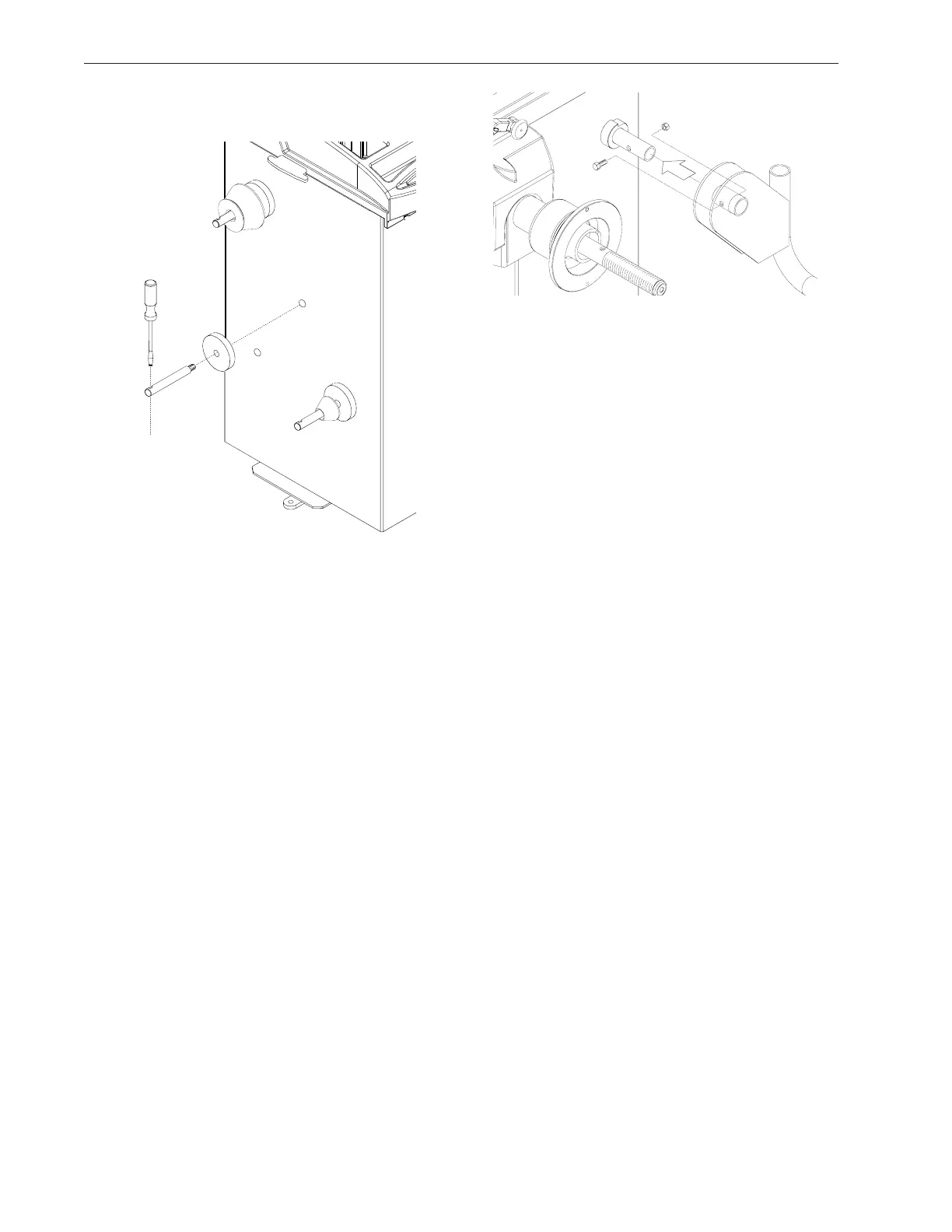

B. Install the 4 accessory pins (Figure 7). Tighten firmly.
Figure 7
C. Place accessories onto the accessory pins.
2.2 HOOD GUARD INSTALLATION
The safety hood guard is standard equipment and
must be installed prior to use.
Refer to Figure 8 for hood guard installation.
Parts Required:
(1) Hood Guard Assembly
(1) 3/8” - 16 x 2” HHCS
(1) 3/8” x 16 Keps
Position the hood guard in the raised (up) position.
Slide the hood guard support tube over the frame pivot
shaft protruding from the right side of the balancer cabi-
net.
Line up the mounting holes in both the pivot shaft and
the guard support tube. Secure the guard with 3/8” hard-
ware.
Figure 8
2.3 WIDTH SAPE ARM INSTALLATION
Connect the SAPE arm cable to the harness connector
exiting the rear of the cabinet. This connector is keyed
to be inserted only one way. Do not force connection.
2.4 ELECTRIC INSTALLATION
ANY ELECTRICAL WIRING MUST BE PER-
FORMED BY LICENSED PERSONNEL.
ALL SERVICE MUST BE PERFORMED BY AN
AUTHORIZED SERVICE TECHNICIAN.
Check on the plate of the machine that the electrical
specifications of the power source are the same as the
machine. The machine uses 230VAC, 50-60Hz, 1Ph,
3.2 Ampere.
NOTE:
ANY ELECTRICAL OUTLET INSTALLATION MUST
BE VERIFIED BY A LICENSED ELECTRICIAN BE-
FORE CONNECTING THE BALANCER.
NOTE:
THIS MACHINE PERFORMS A SELF-TEST ROUTINE
ON START-UP. THERE WILL BE A DELAY OF SEV-
ERAL SECONDS BEFORE THE DISPLAY IS ACTI-
VATED.
