Johnson Controls DSH024C Series - Separation of the Units; FIGURE 2 - Self-Sealing Refrigerant Couplings; TABLE 1 - Operating Weight

11
SECTION 1 – INSTALLATION
FORM 145.32-IOM5
ISSUE DATE: 04/08/2019
1
TABLE 1 - OPERATING WEIGHT
UNIT OPERATING
WEIGHT
(CONDENSER ONLY)
SHIPPING WEIGHT
(CONDENSER
ONLY)
DSH024C 675 (390) 715 (430)
DSH036C 680 (400) 720 (440)
DSH048C 955 (568) 1015 (608)
DSH060C 995 (593) 1065 (633)
DSH096C 1470 (815) 1560 (855)
DSH120C 1800 (1020) 1870 (1060)
NOTE
All weights are in lbs.
Units may be either hung or floor mounted. If the unit
is hung, use all the indicated mounting points, whether
the unit is installed as a package or split system (see
Figure 4 on page 13 and Figure 5 on page 14).
Hanger rods with a minimum 1/2-inch diameter are
strongly recommended.
Ensure the attachment point of the rods to the build-
ing structure is sufficient to support the unit weight. To
ensure efficient condensate drainage, the unit can be
pitched towards the evaporator end of the unit.
A minimum of 4-inch clearance is required under the
unit to allow for trapping of the evaporator condensate
drain. See Typical Service Clearances on page 20
for more unit clearance information.
SEPARATION OF THE UNITS
All models can be ordered with refrigerant shut-off valves
or couplings. These components allow the evaporator and
condenser sections to ship factory-split. The evaporator
and condenser can then be assembled onsite without re-
quiring the entire unit refrigerant charge be reclaimed.
The 2–5 ton models are available with shut-off valves.
The 8 and 10 ton models are available with self-sealing
brass refrigerant couplings. A field-split coupling kit
is available for field-split applications of 8 and 10 ton
models ordered with couplings. Refer to General Piping
Recommendations and Refrigerant Line Lengths (Form
247077-UAD-H-0209).
The male coupling is fastened to the condenser wall via a
mounting bracket. The 8 ton unit ordered as a single pack-
aged unit can be field split. To separate the couplings with-
out stressing the refrigerant piping, use a backup wrench
on the female coupling (see Figure 3 on page 12).
LD27693

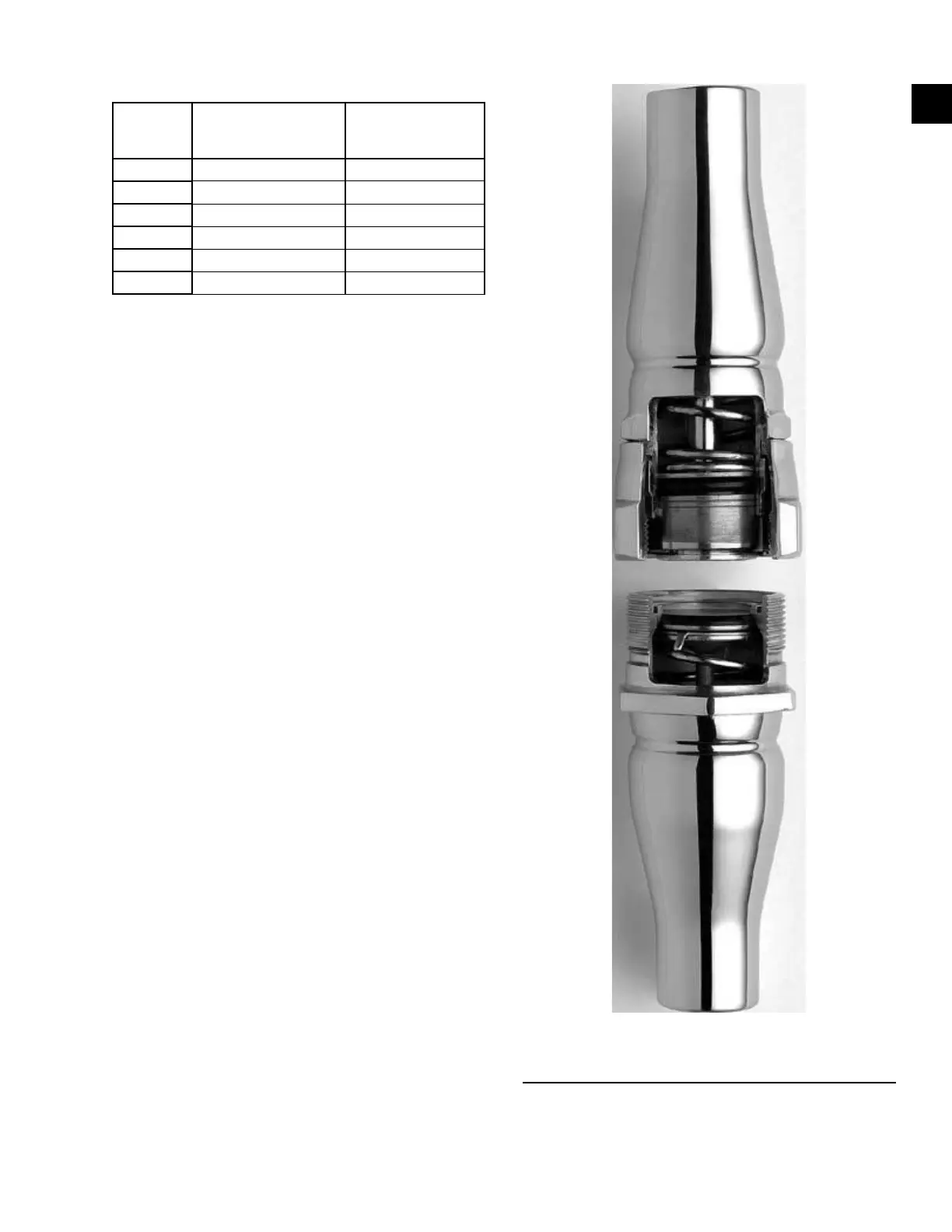

FIGURE 2 - SELF-SEALING REFRIGERANT
COUPLINGS
