Johnson Controls DSH024C Series - FIGURE 17 - Low Ambient Damper

35
SECTION 1 – INSTALLATION
FORM 145.32-IOM5
ISSUE DATE: 04/08/2019
1
KIT # MODEL A B C
LADK-036C-1 DSH024B-C/036B-C 25.875 inches 5.0 inches 23.625 inches
LADK-060C-1 DSH048B-C/060B-C 27.875 inches 5.0 inches 26.625 inches
LADK-100C-1 DSH096B/C 48.0 inches 5.0 inches 29.25 inches
LADK-120C-1 DSH120B/C 60.75 inches 5.0 inches 29.125 inches
LD27708

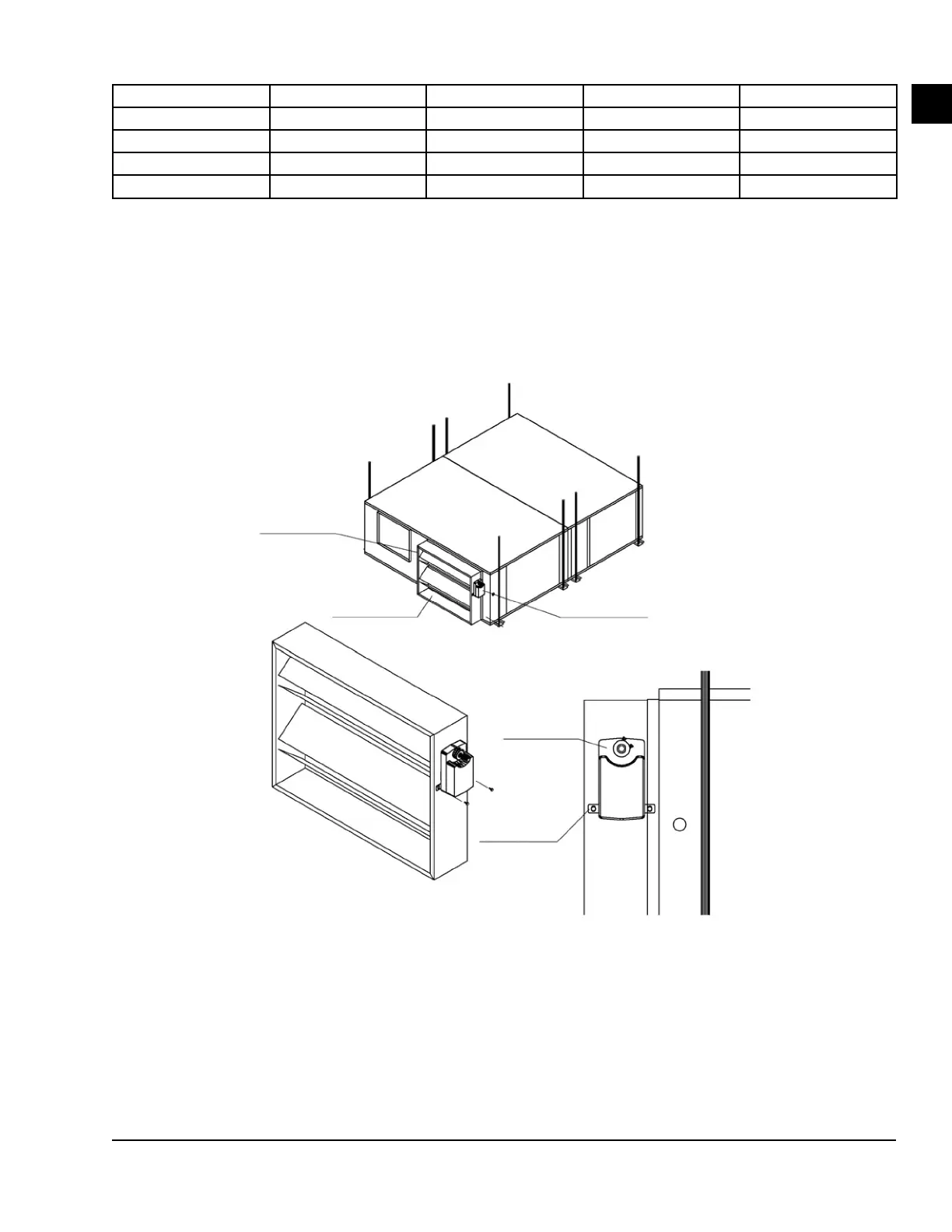

FIGURE 17 - LOW AMBIENT DAMPER
Low-Ambient
Damper
Condenser
Intake
Electric Actuator M9108
M9108
Anti-Rotation
Bracket
