Johnson Controls DSH024C Series - FIGURE 23 - DSH024-060 C Low Voltage Wiring Diagrams

47
APPENDIX: WIRING DIAGRAMS
FORM 145.32-IOM5
ISSUE DATE: 04/08/2019
A
LD28623

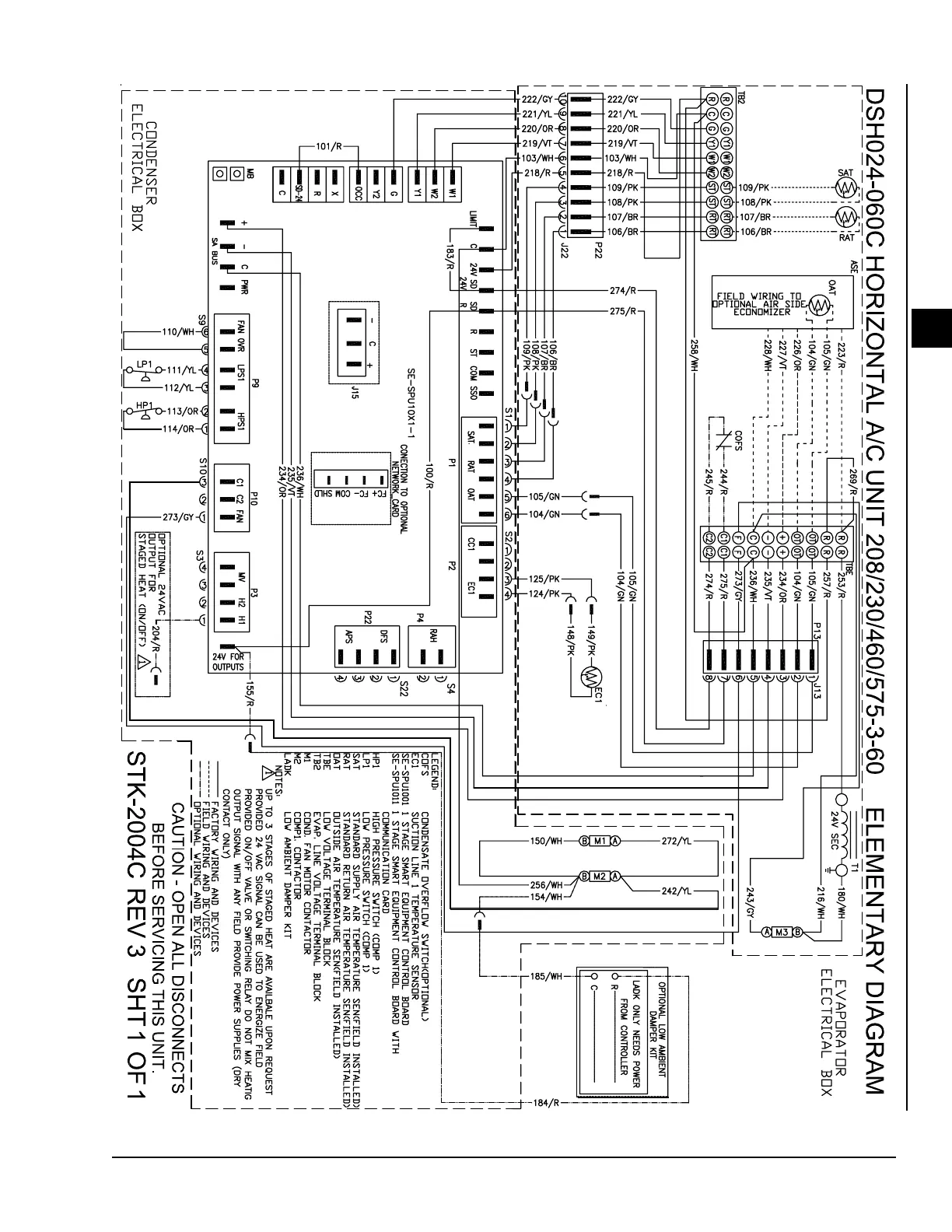

FIGURE 23 - DSH024–060C LOW VOLTAGE WIRING DIAGRAMS
