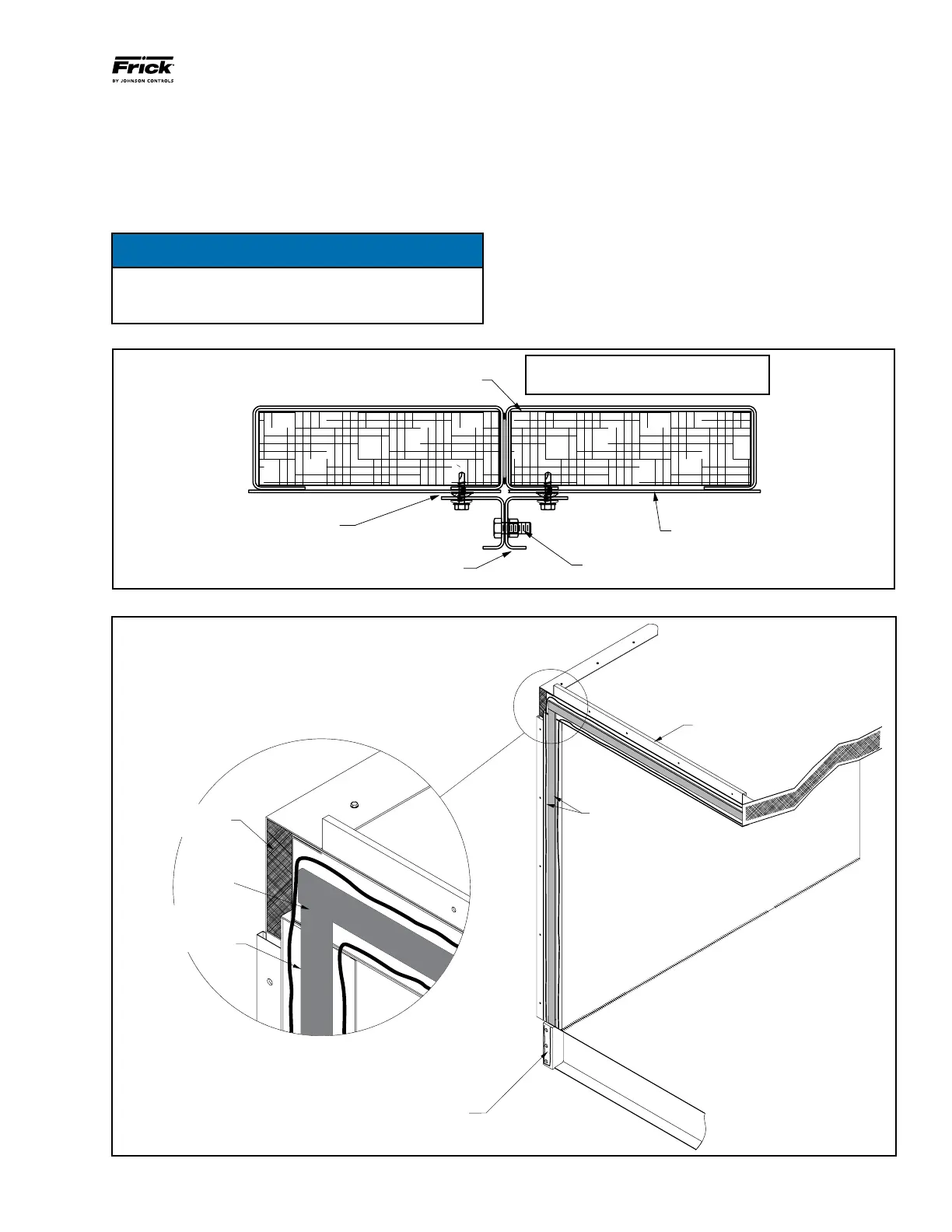

POLYURETHANE
CAULK
NO GAPS
GASKET
SHIPPED LOOSE
AND INSTALLED
BY CONTRACTOR
BASE RECONNECT FLANGE
.25 MINIMUM DIA
CONTINUOUS
POLYURETHANE
CAULKING - 2 PLACES
EXTERNAL RECONNECT
CAULK RAW EDGES
OF SPLIT ANGLES
SPLIT REATTACHMENT ANGLE
EXTERIOR SKIN
HCS NC GR5 .25 X .75
WITH FLANGE LOCKNUT NC .25-20
INTERIOR WALL PANEL
Interior Finish Caulking to be:
DOW RTV-732 Food Grade Caulk

11. Reconnect all electrical conduit and wiring at the reconnect
junction boxes. Use electrical conduit sealing putty to seal all
conduit openings into and out of the junction box to prevent the
migration of moisture. (reference the information on page 42)
12. Inspect all splits to see if all electrical and piping
connections are complete and correct.


    



1. The mechanical joint between the unit sections must be
bolted and sealed with polyurethane caulking prior to applying
the roof coating.
2. Acu-Shield Roof Coating can be applied to the roof
reconnect after any exposed polyurethane caulking is dry and
when surface temperature is between 45°F and 108°F. Below
45°F, extra steps must be taken to keep the polyurethane
caulking, Acu-Shield, and metal reconnect surfaces heated
for proper application during installation. Contact Product
Service for further direction.
