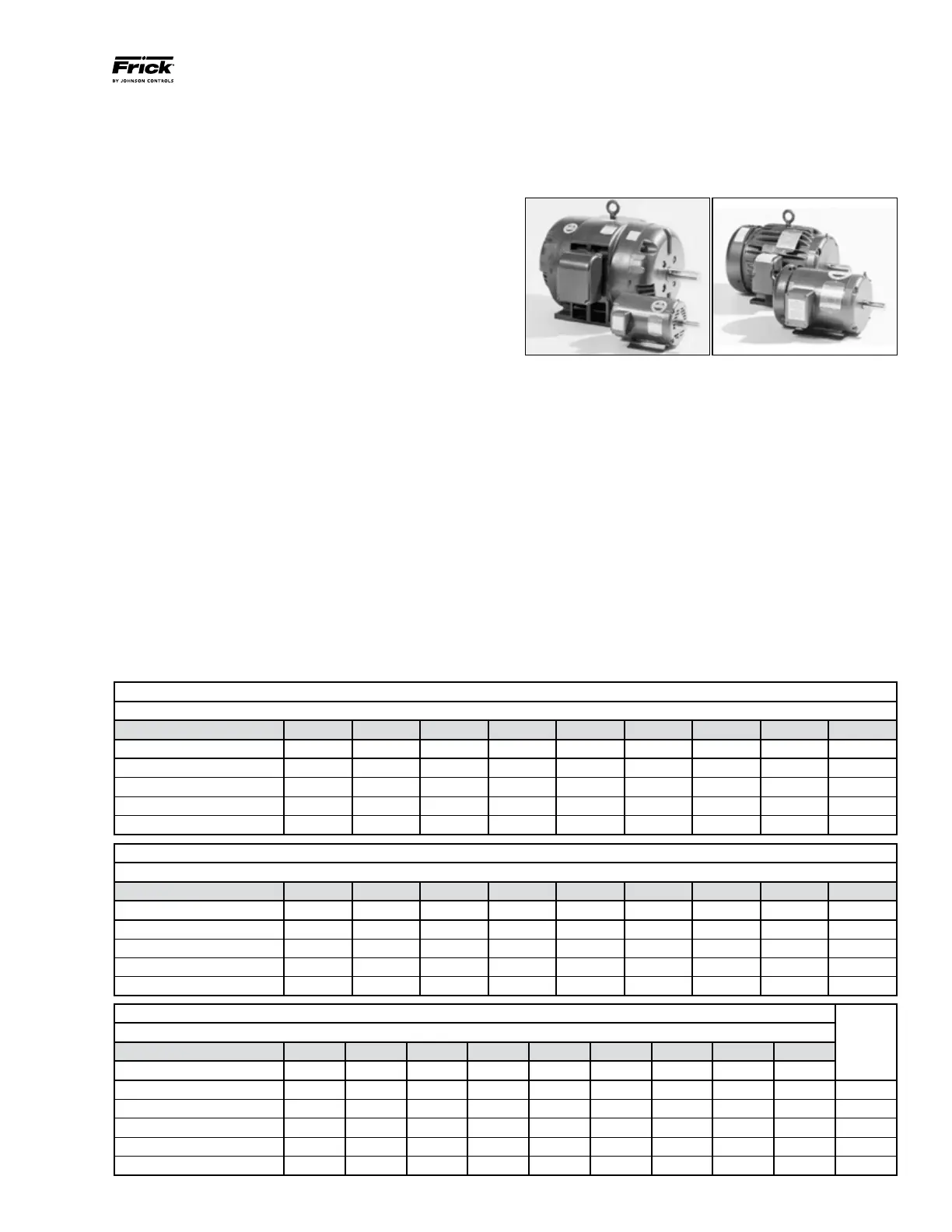

TABLE 1 – FAN BEARING – LUBRICATION INTERVALS - BALL BEARING PILLOW BLOCKS
Relubrication schedule (months)
SPEED (RPM) 500 1000 1500 2000 2500 3000 3500 4000 4500
SHAFT DIA.
1/2" thru 1ZZ\zn"
6 6 5 3 3 2 2 2 1
1ZB\zn" thru 2M\zn"
6 5 4 2 2 1 1 1 1
2ZZ\zn" thru 2ZB\zn"
5 4 3 2 1 1 1
3M\zn" thru 3ZB\zn"
4 3 2 1 1 1
TABLE 2 – FAN BEARING – LUBRICATION INTERVALS - SPHERICAL ROLLER BEARING
SOLID PILLOW BLOCKS
Relubrication schedule (months)
SPEED (RPM) 500 1000 1500 2000 2500 3000 3500 4000 4500
SHAFT DIA
1C\zn" thru 1M\zn"
6 4 4 2 1 1 1 1 1/2
1ZZ\zn" thru 2C\zn"
4 2 1 1/2 1/2 1/2 1/2 1/2
2M\zn" thru 3M\zn"
3 1 1/2 1/2 1/2 1/2
3ZB\zn" thru 4ZB\zn"
1 1/2 1/4
TABLE 3 – FAN BEARING – LUBRICATION INTERVALS - SPHERICAL ROLLER BEARING-SPLIT PILLOW BLOCKS
Grease
to be
added
at each
interval
Relubrication schedule (months)
SPEED (RPM) 500 750 1000 15000 2000 2500 3000 3500 4000

1M\zn" thru 1ZB\zn"
6 4 4 1 1
0.50 oz
2C\zn" thru 2ZZ\zn"
5 4 1/2 1/4 1/4
0.75 oz
2ZB\zn" thru 3ZB\zn"
4 1 1/2
2.00 oz
4M\zn" thru 4ZB\zn"
4 4 1 1/2
4.00 oz
5M\zn" thru 5ZB\zn"
4 1
7.00 oz

Standard fan congurations ship with fan bearings factory
lubricated (ready for start-up). The fan should be turned off
and locked out to prevent accidental start-up of the fan during
lubrication procedures. Also, secure sheaves before servicing
the unit to ensure that the fan cannot freewheel. Failure to
do so may result in severe personal injury.
Proper lubrication of bearings helps to assure maximum
bearing life. Generally, lubricate bearings every 1,000 hours of
operation or more frequently when exposed to wet location,
wide temperature variety or severe atmospheric conditions.
Add grease with manual grease gun until a light bead of grease
appears at the bearing grease seal or refer to lubrication
frequency in the Tables 1, 2 & 3. Observation of the condition
of the grease expelled from the bearings at the time of re-
lubrication is the best guide as to whether lubrication intervals
and the amount of grease added should be altered. Always
lubricate bearings prior to extended shutdown or storage and
rotate shaft monthly.

A Lithium / Petroleum base grease conforming to an NLGI
Grade II consistency is normally used. Lubricant must be free
of any chemical impurities such as free acid or free alkali,
dust, rust, metal particles or abrasives. This light viscosity,
low torque grease is rust inhibited and water resistant, has a
temperature range of -30°F to +200°F with intermittent highs
of +250°F. Lubricate bearings as required by the severity of
required duty.
See Tables 1, 2 & 3

Keep the motor clean, dry and properly lubricated at all times.
Blow dust and dirt out of windings periodically using low-
pressure (50 psig) air. (Figure 51)
 



Inspect for loose parts.
Inspect for damage.

Inspect for leaky bearing seals.
Inspect for damage.
Inspect for dirt, dust & debris in air vents on motor housing.

Inspect all electrical terminations.
Inspect conduit ttings and clamps for damage or looseness.
Inspect operating amperage and compare to nameplate.
