JOHNSON CONTROLS
84
FORM 160.10-O1
ISSUE DATE: 4/27/2018
SECTION 2 - OPTIVIEW OPERATION
ACC to VSD
This displays the number of communication error
counts from the ACC board to the VSD.
VSD to ACC
This displays the number of communication error
counts from the VSD to the ACC board.
PROGRAMMABLE
Reset Counters
This key allows the service technician to reset the
VSD, ACC, and panel error counters.
NAVIGATION
Home
Access Level Required: VIEW
Returns the display to the Home screen.
Diagnostics
Access Level Required: VIEW
Returns the display to the Diagnostics screen.
OVERVIEW
This screen displays communication error counts for
the OptiView panel, ACC, and VSD. This screen is
useful for service technicians checking communication
error counts between these components.
Requires a login access level of SERVICE
to view. Service technicians refer to Op-
tiView Control Center Retrot Kit - Trane
Service Manual (Form 160.10-M1) for
further explanation of displayed values.
DISPLAY ONLY
Panel to ACC
This displays the number of communication error
counts from the adaptive capacity control (ACC) board
to the OptiView panel.
ACC to Panel
This displays the number of communication error
counts from the OptiView panel to the ACC board.

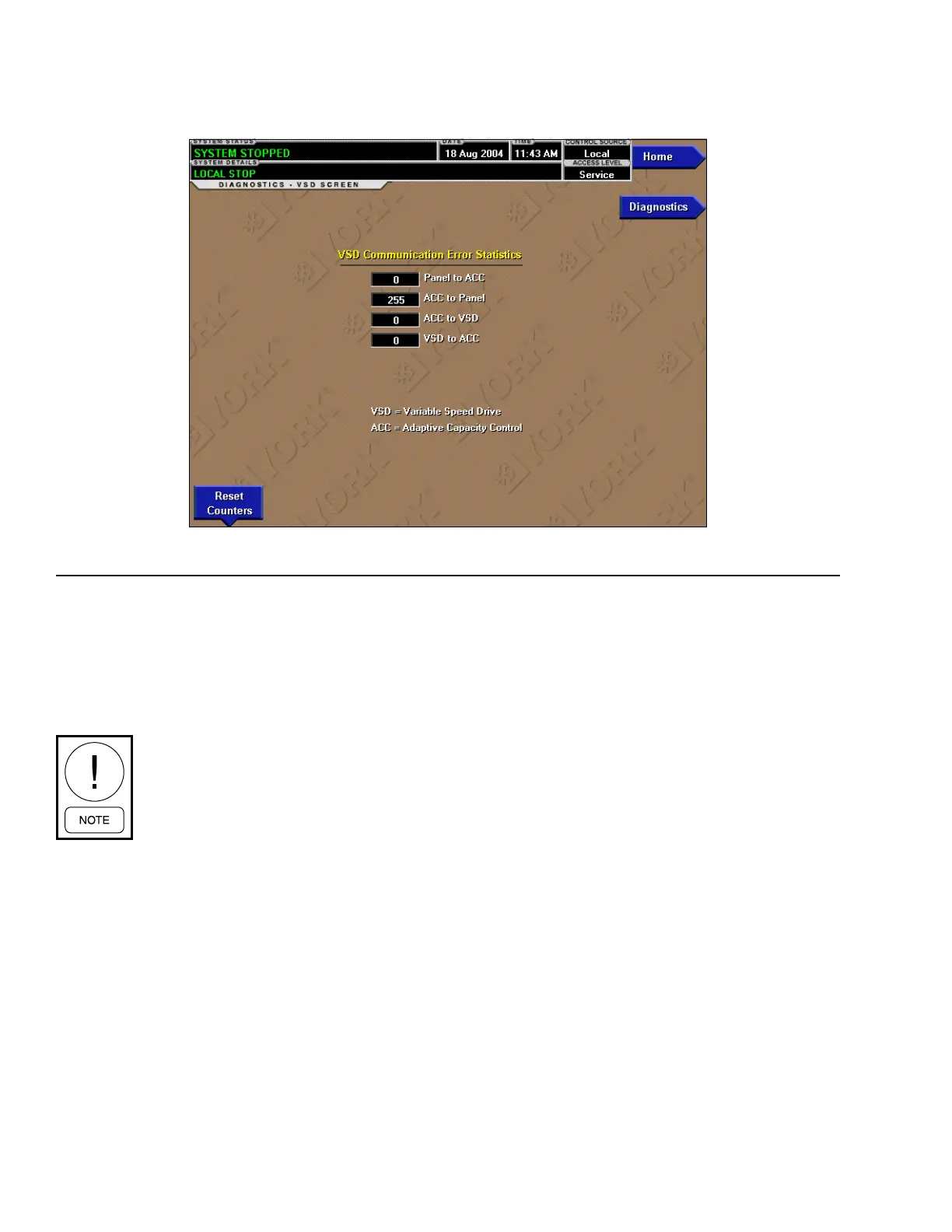

DIAGNOSTICS - VSD SCREEN
ID10024
FIGURE 34 - VSD DIAGNOSTIC SCREEN
