• History - System parameters at the time of the last
normal stop, last fault while running and last 10
faults, whether running or not (Printer, History)
• Cycling or Safety shutdown initiated Print
“Snapshot” of all system parameters at instant of
shutdown. Automatically occurs if printer is con-
nected at time of shutdown.
• ACC Surge Map - System conditions at instant
all surge points were mapped. (compressor motor
variable speed drive applications; requires “Ser-
vice” access level)
• Trend - Prints “snapshots” of the existing trend
screen data or prints new data collected after the
trend print key is pressed.
PRINTERS OVERVIEW
A printer can be connected to the OptiView Control
Center’s Microboard to print the following reports.
The screen from which each report can be generated is
listed in parenthesis.
• Status - Present system parameters (Printer,
Home)
• Setpoints - Present programmed values of all set-
points (Printer, Setpoints)
• Schedule - Present value of programmed daily
schedule (Printer, Schedule)
• Sales Order - Information on Sales Order Screen
(Printer, Sales Order)
SECTION 4 - PRINTERS

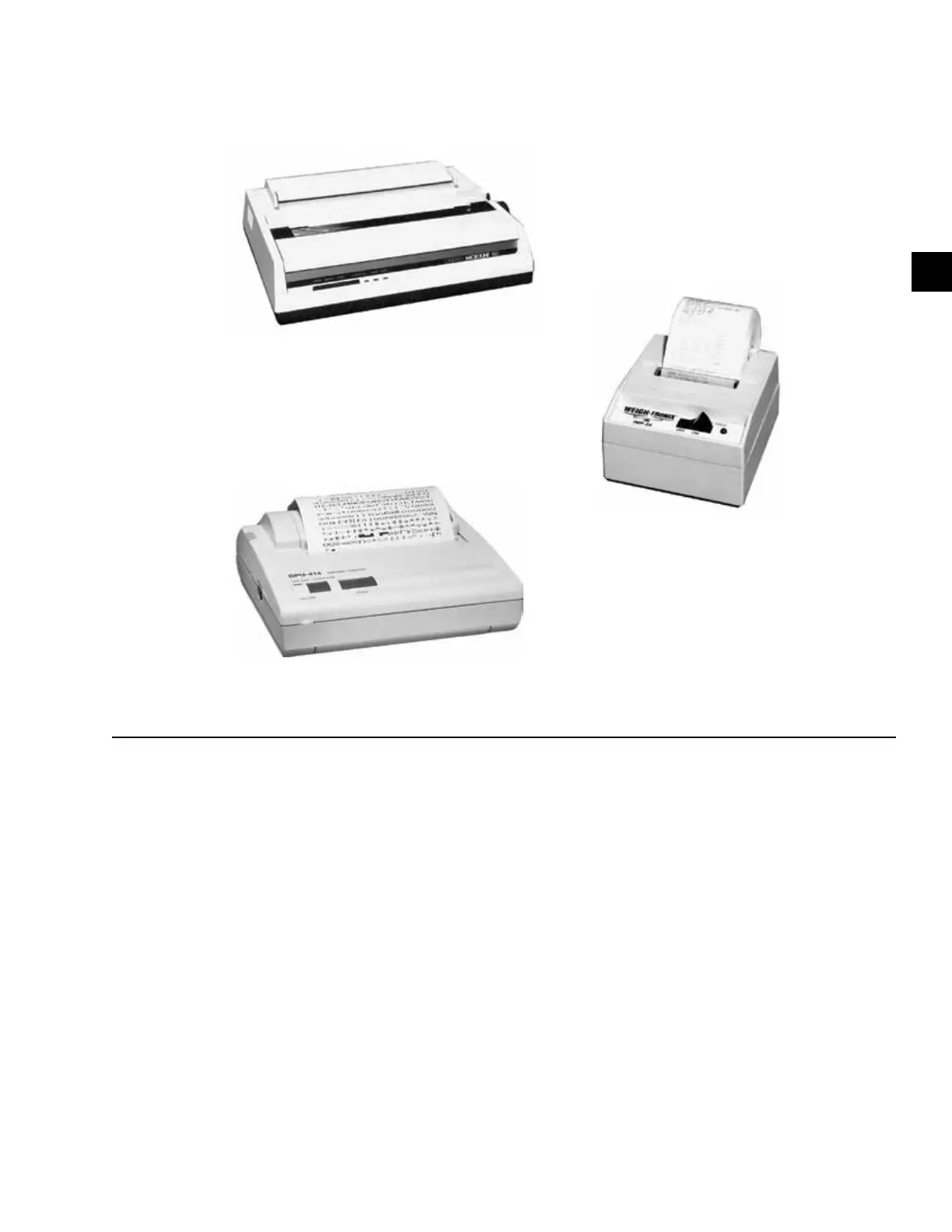

FIGURE 43 - PRINTERS
23887A
OKIDATA MICROLINE 184
23889A
WEIGH-TRONIX
SEIKO DPU-414
00085VIP
