SECTION 2 - OPTIVIEW OPERATION
NAVIGATION
Home
Access Level Required: VIEW
Returns the display to the Home screen.
History
Access Level Required: VIEW
Returns the display to the History screen.
Setup
Access Level Required: SERVICE
Advances to a sub-screen that allows selection of cus-
tom view display parameters.
OVERVIEW
This screen displays up to ten (10) user-selected pa-
rameters to be displayed simultaneously. These param-
eters are selected at the custom view “Setup” screen.
This feature is useful to display parameters pertinent
to a particular problem during service troubleshooting.
Once the problem has been resolved, the display can be
cleared or the parameters can be left there for monitor-
ing by chiller operating personnel.
DISPLAY ONLY
None
PROGRAMMABLE
Print
Access Level Required: VIEW
This key generates a printed listing of the parameters
displayed on this screen.
CUSTOM VIEW SCREEN
00324VIP

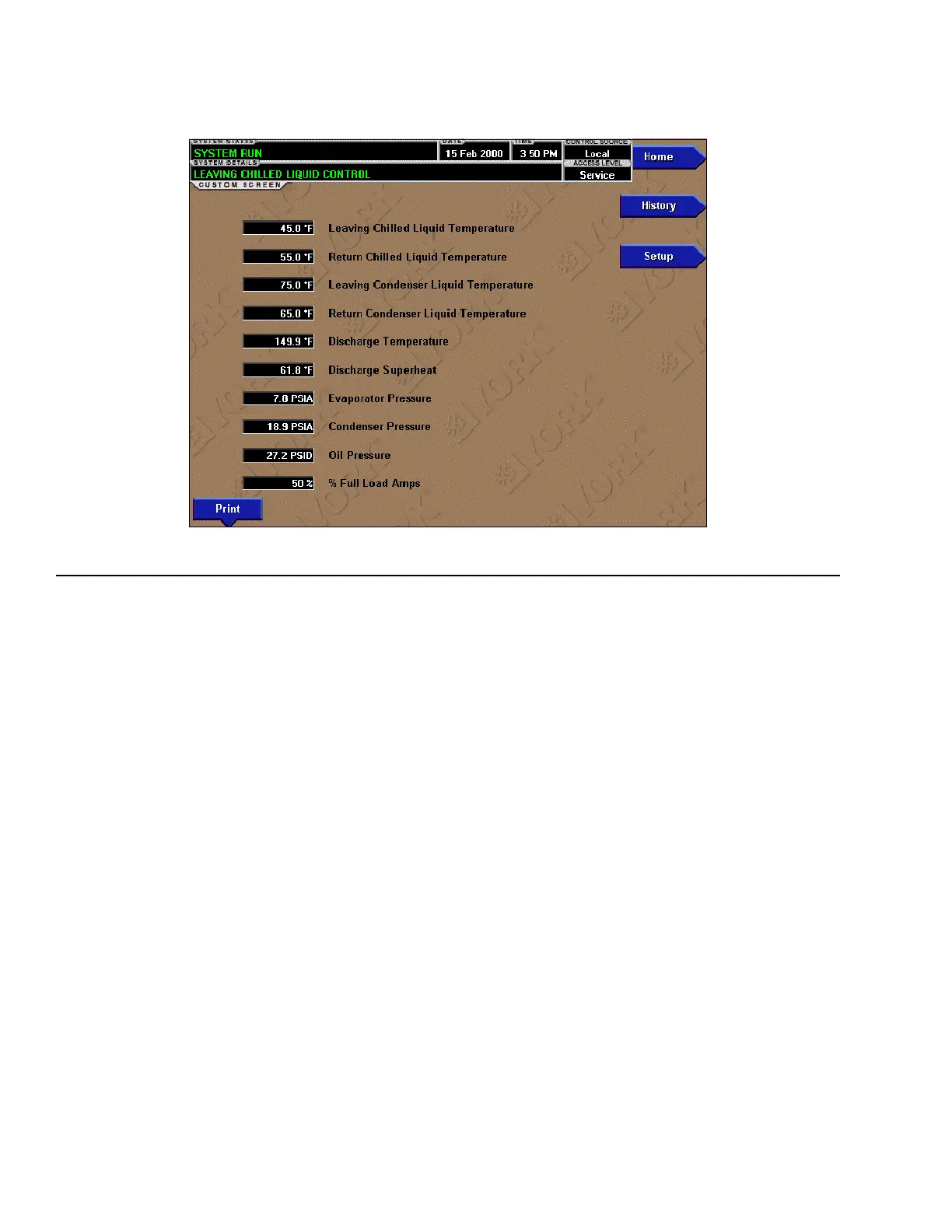

FIGURE 38 - CUSTOM VIEW SCREEN
