SECTION 2 - OPTIVIEW OPERATION
Automatic Printer Logging (Enabled /
Disabled)
Access Level Required: OPERATOR
Allows the operator to “Disable” or “Enable” the print-
ing of status reports. When enabled, the reports will
begin at the programmed start time and recur at the in-
terval defined by the operator.
Printer Type
Access Level Required: SERVICE
Defines the printer model connected to the chiller sys-
tem.
ACC Auto Map Print (Enabled / Disabled)
Access Level Required: SERVICE
This feature is only available if the chiller system uti-
lizes a Variable Speed Drive (VSD) motor controller.
The chiller monitors the ACC communications and
when a surge point is mapped, a short report of system
parameters is printed.
OVERVIEW
This screen allows the setup of printer type, print re-
port, and print logging. Refer to “COMMS Screen” on
the previous page for communication setup and SEC-
TION 4 - PRINTERS in this manual for details of the
printer connections and acceptable printer types.
DISPLAY ONLY
Time Remaining Until Next Print
Displays the time until the next print log will occur, if
the function is enabled.
PROGRAMMABLE
Log Start Time
Access Level Required: OPERATOR
This setting allows the start time of scheduled print
logs to be programmed
Output Interval
Access Level Required: OPERATOR
This setting defines the amount of time between each
scheduled automatic print log.
PRINTER SCREEN
ID10009

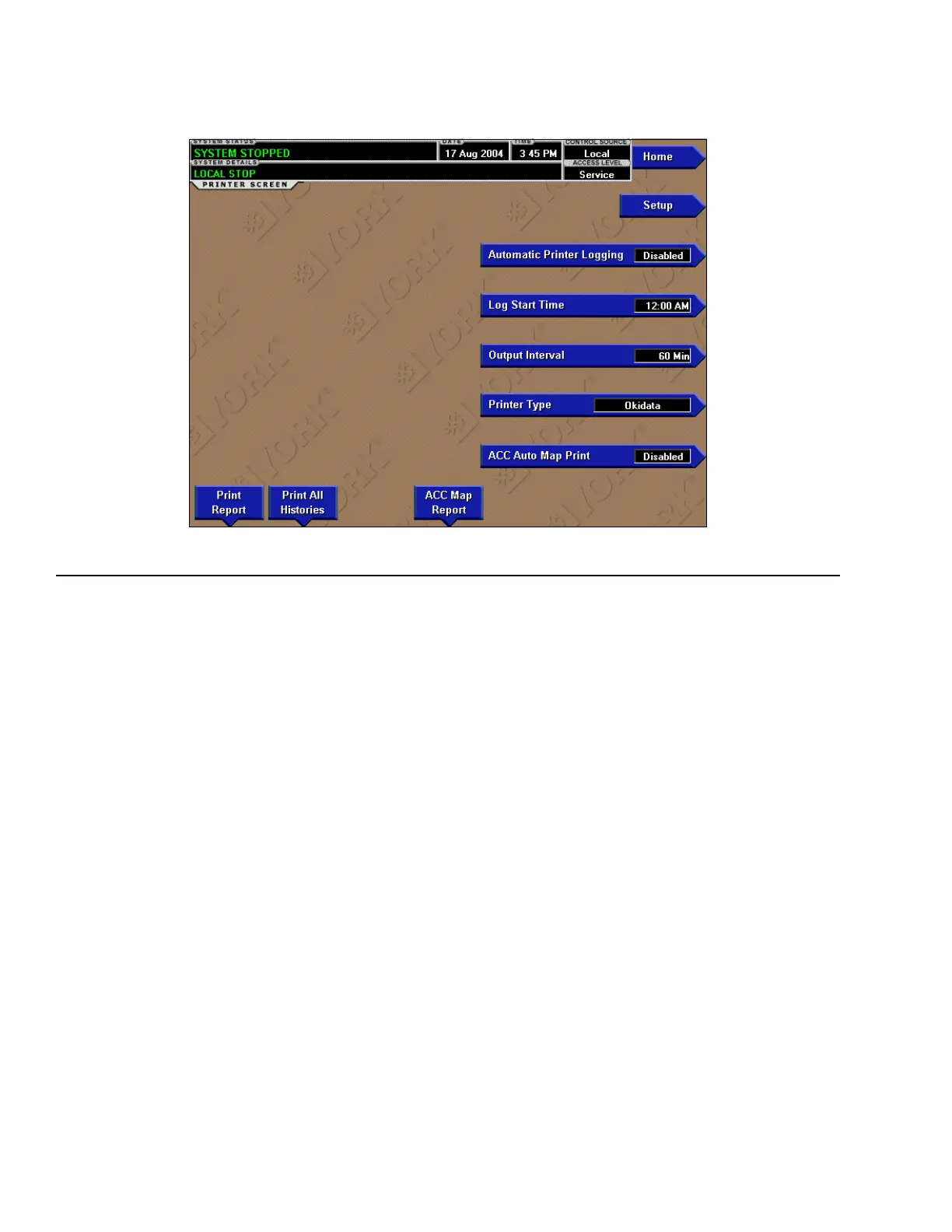

FIGURE 29 - PRINTER SCREEN
