Johnson Controls YORK YK Style G OPTIVIEW - FIGURE 6 - Chiller Starting Sequence and Shutdown Sequence (Em Starter and Solid State Starter); FIGURE 7 - Chiller Starting Sequence and Shutdown Sequence (Variable Speed Drive)

FORM 160.75-O1 (211)
JOHNSON CONTROLS
12
SECTION 2 - SYSTEM OPERATING PROCEDURES
LD15609

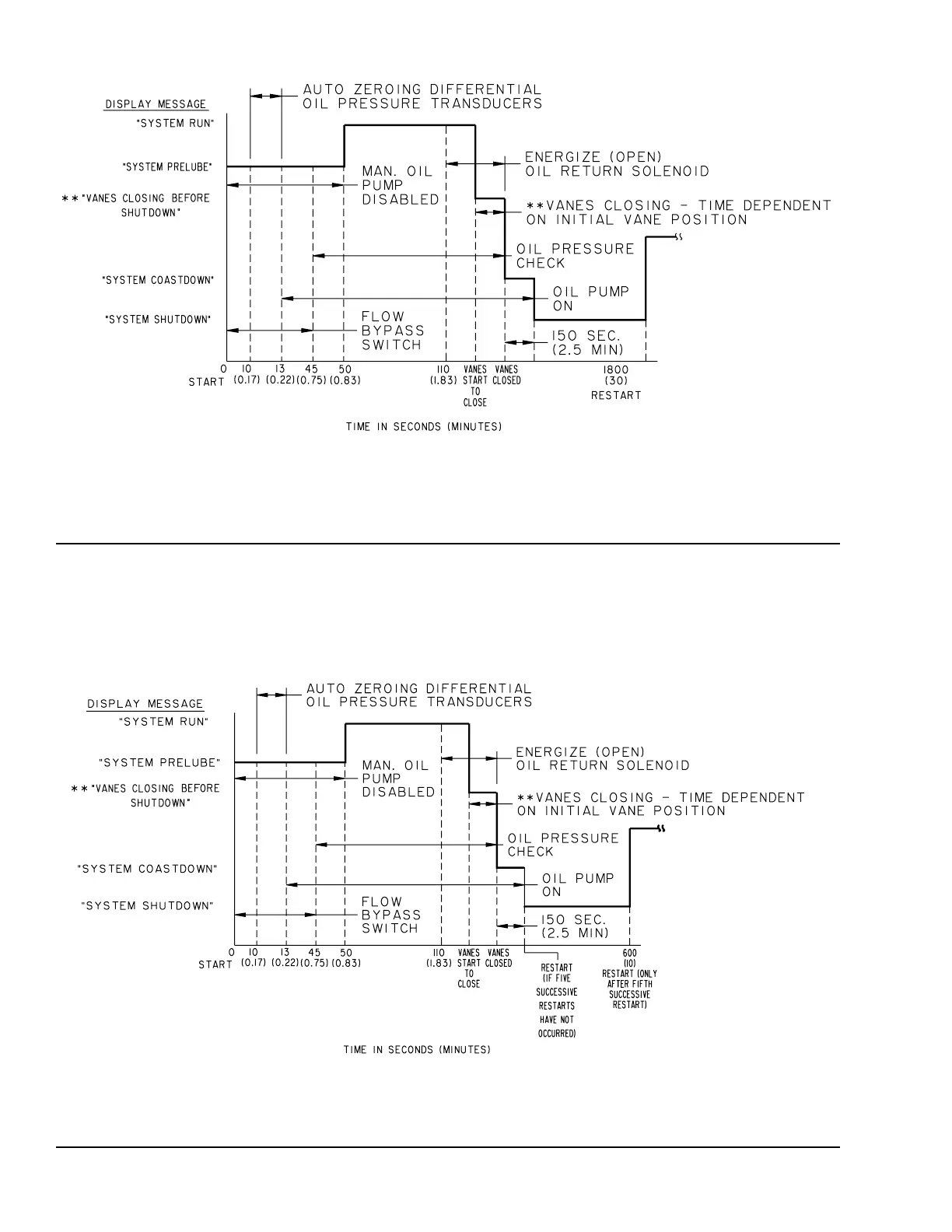

FIGURE 6 - CHILLER STARTING SEQUENCE AND SHUTDOWN SEQUENCE (EM STARTER AND SOLID
STATE STARTER)
** Not for all shutdowns. Refer to “Display Messages” in manual Optiview™ Control Center – Operation and Maintenance (Form 160.54-O1).
FIGURE 7 - CHILLER STARTING SEQUENCE AND SHUTDOWN SEQUENCE (VARIABLE SPEED DRIVE)
** Not for all shutdowns. Refer to “Display Messages” in manual Optiview™ Control Center – Operation and Maintenance (Form 160.54-O1).
LD15610
