SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
JOHNSON CONTROLS
143
FORM 160.54-O1
ISSUE DATE: 9/10/2014
2
OVERVIEW
This screen allows definition of custom User ID’s and
matching passwords. This allows the building admin-
istrator to assign custom passwords to those who are
authorized to maintain the chiller.
Each custom user value is not linked to a specific but-
ton. Instead, the CHANGE button is pressed which en-
ables the cursor arrows which are used to highlight the
custom user parameter the user wishes to modify. At
this point the () button is pressed and the value may
be entered.
DISPLAY ONLY
None
For elds requiring access level of SER-
VICE. Service Technicians refer to the
OptiView Control Center - Service Instruc-
tions (Form 160.54-M1) for operation
instructions and explanation of all pro-
grammable setpoints and displayed values.
PROGRAMMABLE
System Language
Access Level Required: OPERATOR
Allows the user to define the language for all Screens.
The desired language is selected by scrolling through the
list of those available. English is the Default language and
isselectedbypressingthe▲keywhenthedialogbox
appears during the selection process. The selected lan-
guage will not be displayed until after the user navi-
gates from the USER Screen to another screen. The
selections are: English, French, German, Hungarian,
Italian, Japanese (software version C.OPT.01.20.307
and later), Portuguese, Simplified Chinese, Spanish,
and Traditional Chinese.
English / Metric Units
Access Level Required: OPERATOR
Define the unit system (English or Metric) used by the
chiller display.

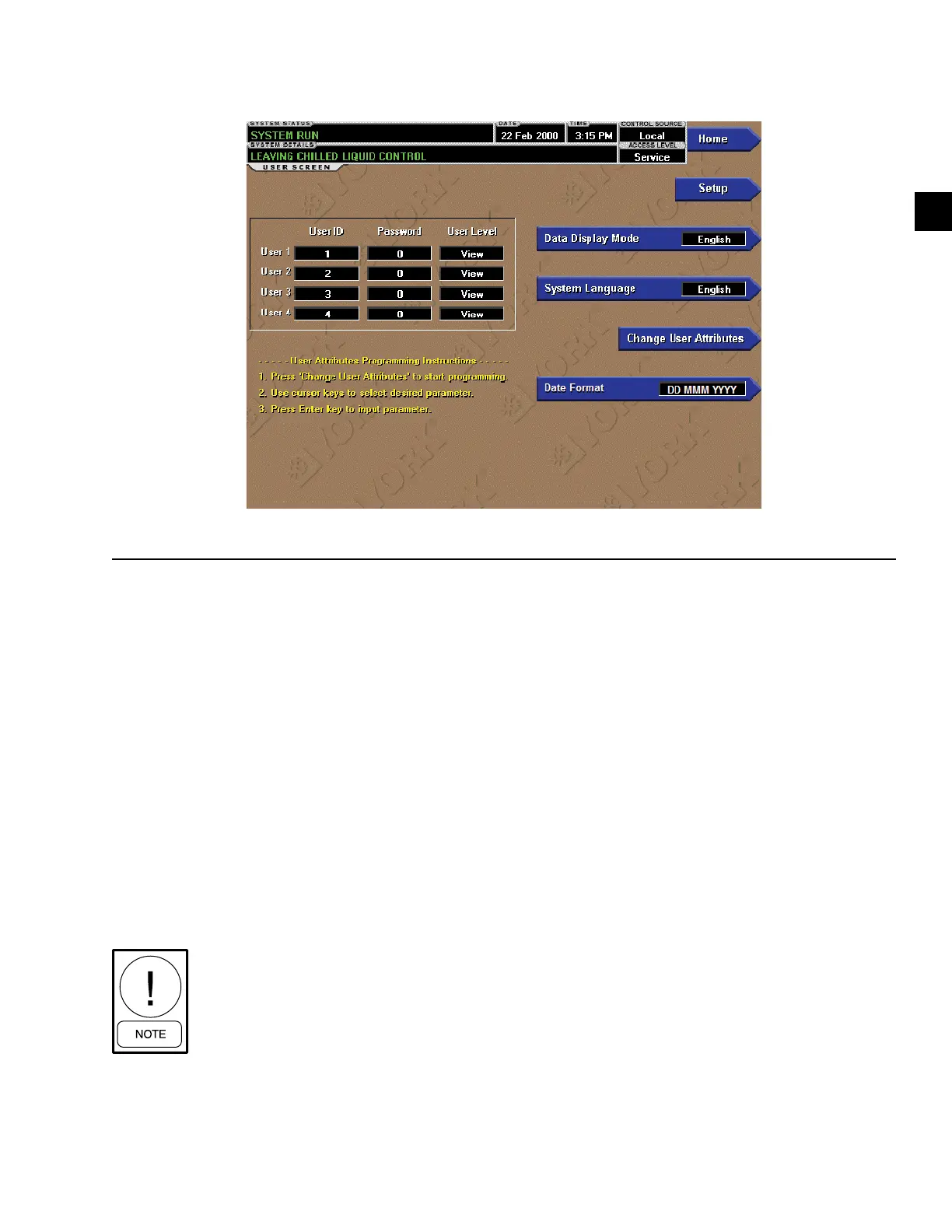

USER SCREEN
LD15432
FIGURE 47 - USER SCREEN
