SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
JOHNSON CONTROLS
161
FORM 160.54-O1
ISSUE DATE: 9/10/2014
2
OVERVIEW
(Flash Memory Card version C.MLM.01.04 or later)
This screen allows up to 10 Service Technician select-
ed parameters to be displayed. These parameters are
selected from a list on the CUSTOM VIEW SETUP
Screen. This allows the Service Technician to display
parameters pertinent to a particular problem during
troubleshooting. At completion of the service call, the
display can be cleared or the parameters can be left
there for monitoring by operations personnel.
DISPLAY ONLY
None
For elds requiring access level of SER-
VICE. Service Technicians refer to the
OptiView Control Center - Service Instruc-
tions (Form 160.54-M1) for operation
instructions and explanation of all pro-
grammable setpoints and displayed values.
PROGRAMMABLE
Print
Access Level Required: VIEW
This generates a listing of the parameters displayed on
this screen.
NAVIGATION
Home
Access Level Required: VIEW
Returns user to HOME Screen.
History
Access Level Required: VIEW
Returns user to HISTORY Screen.
Setup
Access Level Required: OPERATOR
Causes a jump to the subscreen that allows selection of
the parameters to be displayed.
CUSTOM VIEW SCREEN
00324VIP

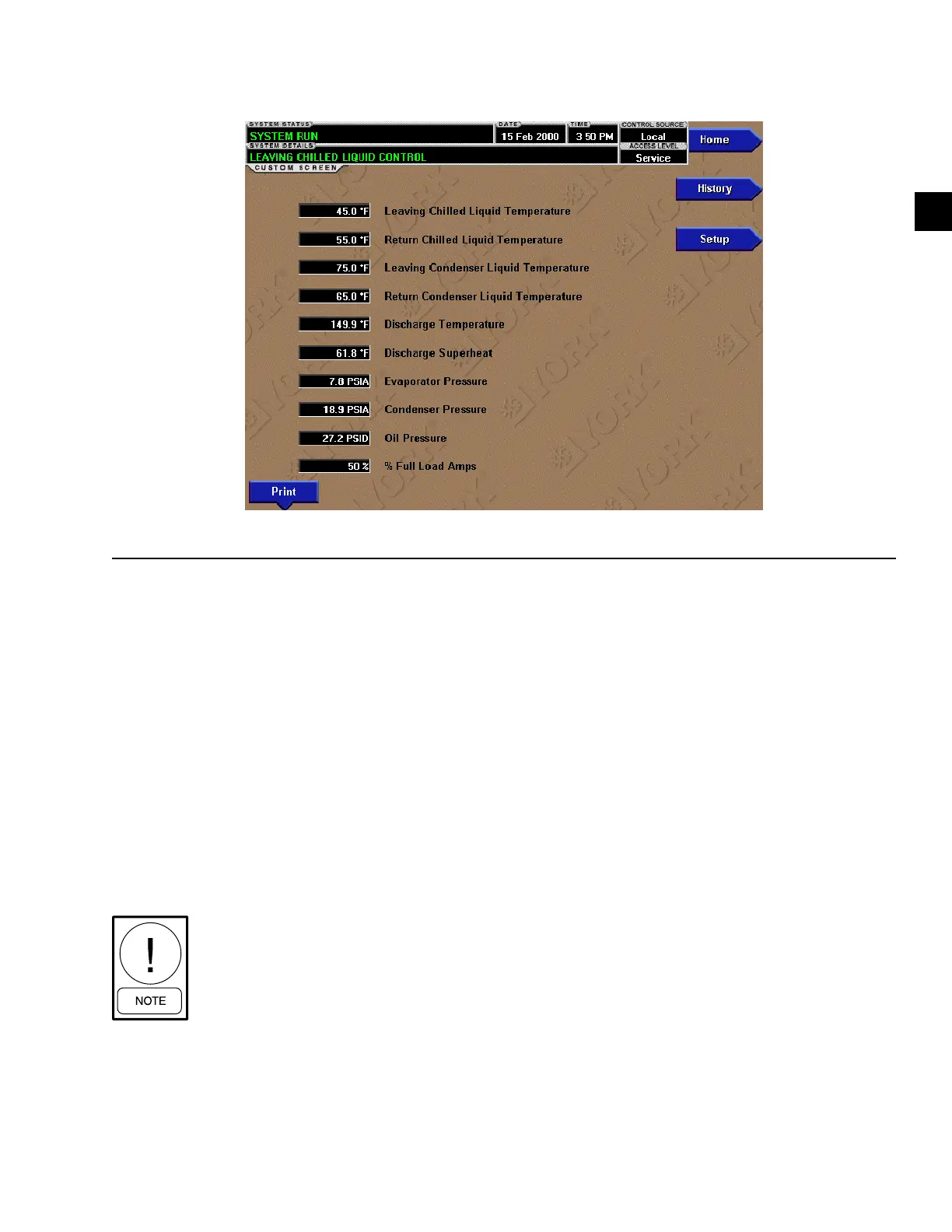

FIGURE 56 - CUSTOM VIEW SCREEN
