SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
JOHNSON CONTROLS
163
FORM 160.54-O1
ISSUE DATE: 9/10/2014
2
OVERVIEW
(Flash Memory Card version C.MLM.01.04 or later)
This screen allows the Service Technician to select up
to 10 parameters for display on the CUSTOM VIEW
Screen.
Requires a login access level of SERVICE.
Service Technicians refer to the OptiView
Control Center - Service Instructions
(Form 160.54-M1) for operation instruc-
tions and explanation of all programmable
setpoints and displayed values.
DISPLAY ONLY
Slot Numbers
Lists the available parameters that can be displayed.
The desired parameters for display are selected from
this list.
PROGRAMMABLE
Page Up
Scroll up through list of available parameters.
Page Down
Scroll down through list of available parameters.
Select
First use the PAGE UP and PAGE DOWN keys to scroll
through the Slot Numbers list and note the number of
the parameter(s) to be displayed. Pressing the SELECT
key places a green colored selection box around Cus-
tom Slot 1. If it is desired to change an already entered
parameter, use the 5 and 6 keys to place the selection
box around the Slot Number to be changed. With the
selection box around the Slot Number to be changed
or entered, press the ENTER () key. A dialog box is
displayed permitting data entry. Using the NUMERIC
keypad keys, enter the desired Slot Number and press
the ENTER () key.
Custom Slot (1-10)
Use the SELECT key and NUMERIC keypad keys as
described above and enter the Slot Number from Slot
Numbers list. Setting the Slot Number to zero clears
the display of this Slot Number.

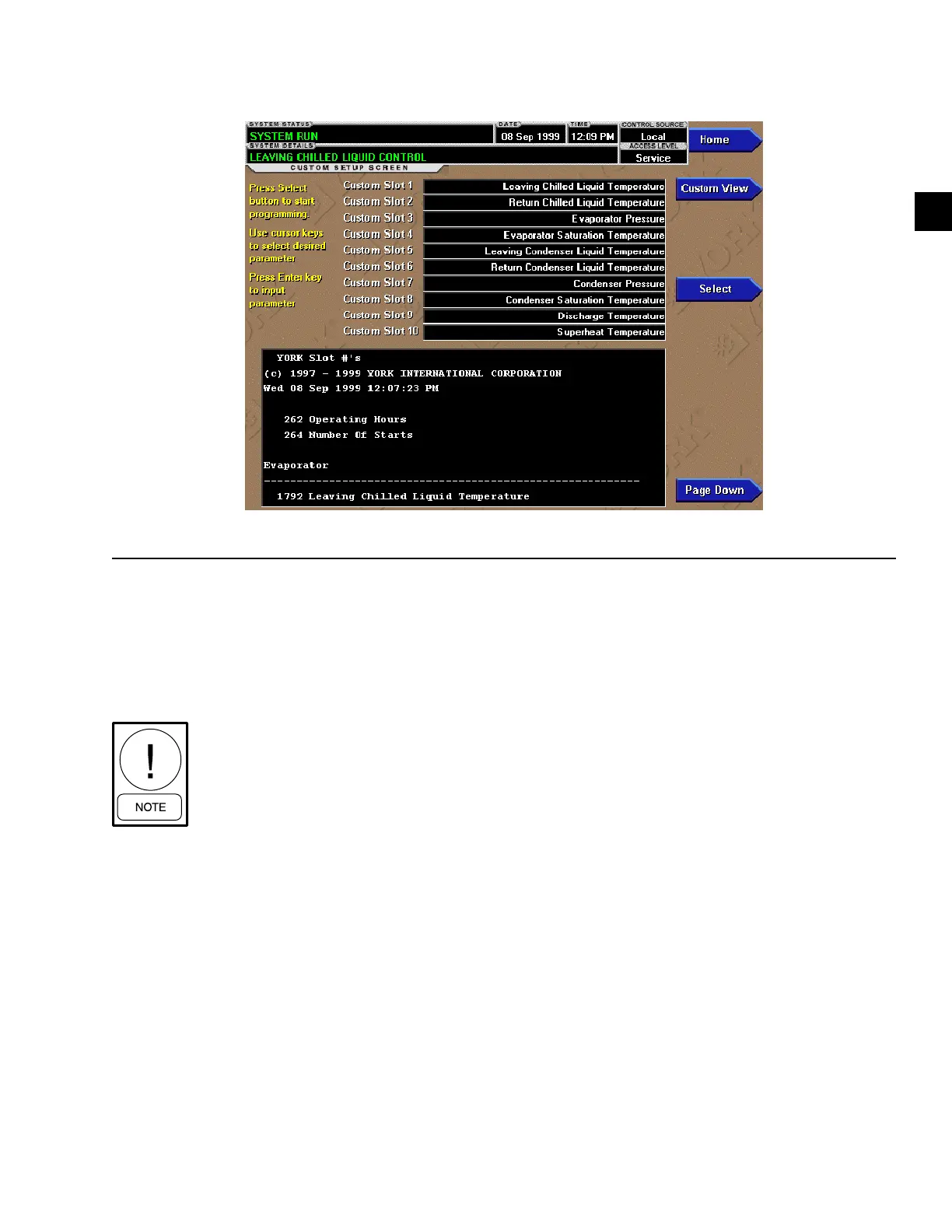

CUSTOM VIEW SETUP SCREEN
00325VIP
FIGURE 57 - CUSTOM VIEW SETUP SCREEN
