SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
JOHNSON CONTROLS
155
FORM 160.54-O1
ISSUE DATE: 9/10/2014
2
OVERVIEW
This screen allows the user to see an on-screen printout
of all the system parameters at the time of the selected
shutdown. Not all screens are shown above. The num-
ber of screens required to display all of the data varies
according to type of motor starter and options applied.
DISPLAY ONLY
History Printout
This is the on-screen printout of the system parameters.
For elds requiring access level of SER-
VICE. Service Technicians refer to the
OptiView Control Center - Service Instruc-
tions (Form 160.54-M1) for operation
instructions and explanation of all pro-
grammable setpoints and displayed values.
PROGRAMMABLE
Page Up
Access Level Required: VIEW
Scroll up in the displayed data (if applicable).
Page Down
Access Level Required: VIEW
Scroll down in the displayed data (if applicable).
Print History
Access Level Required: VIEW
This generates a report listing the status of the chiller
parameters at the time of the selected shutdown.
NAVIGATION
Home
Access Level Required: VIEW
Returns user to HOME Screen.
History
Access Level Required: VIEW
Returns user to HISTORY Screen.
HISTORY DETAILS SCREEN
00660VIP

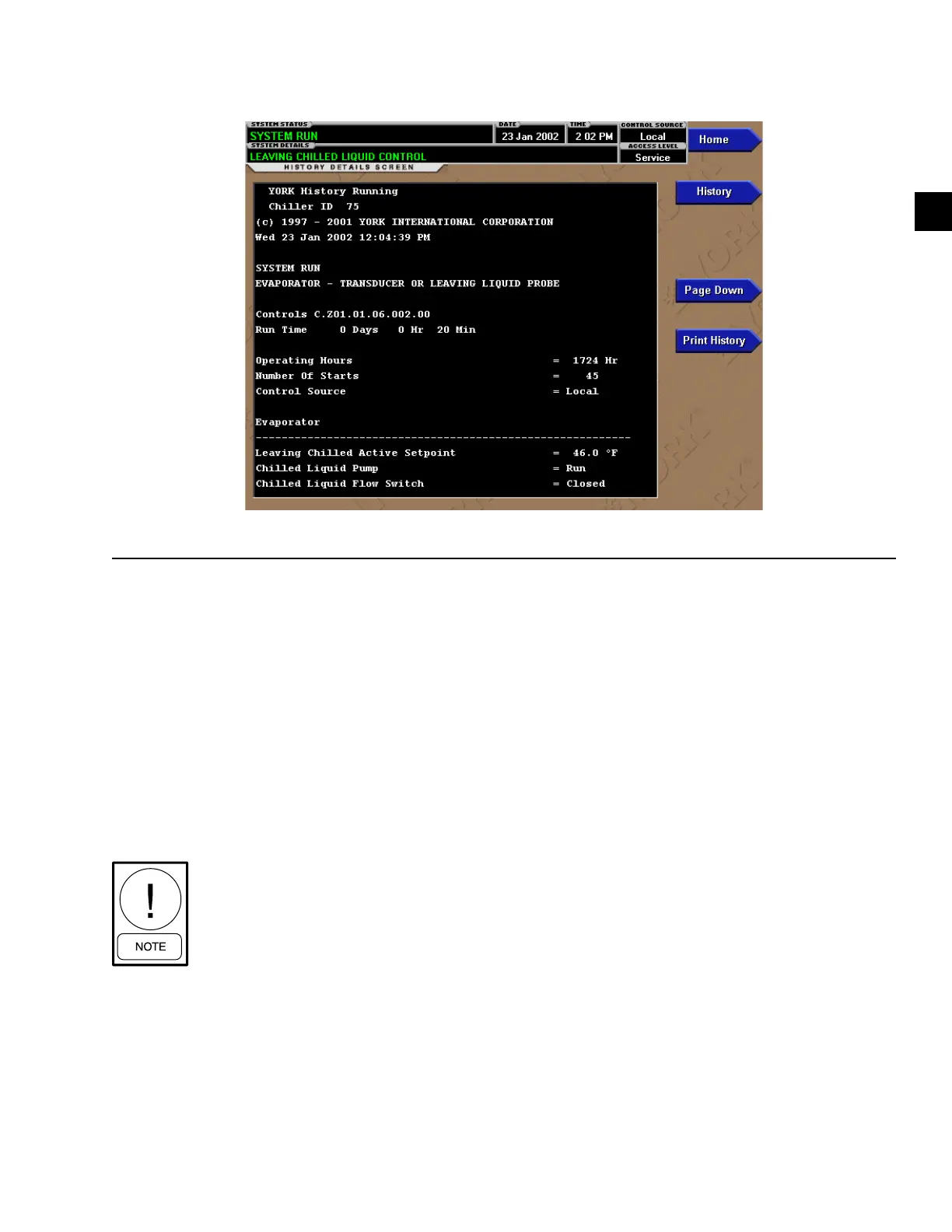

FIGURE 53 - HISTORY DETAILS SCREEN
