SECTION 1 - INTRODUCTION
FORM 160.75-N1
ISSUE DATE: 4/30/2014
1
ALL DIMENSIONS ARE IN INCHES (MM)
UNIT WEIGHT 53,531 - 100,464 Lbs (45,570 - 58,968 Kgs)
LD12641
UNIT WEIGHT UP TO 16,365 Lbs (7,423 Kgs)
LD12638
UNIT WEIGHT 16,366 - 28,835 Lbs (7,424 - 13,080 Kgs)
LD12639
UNIT WEIGHT 28,836 - 53,530 Lbs (13,081 - 24,281 Kgs)
LD12640

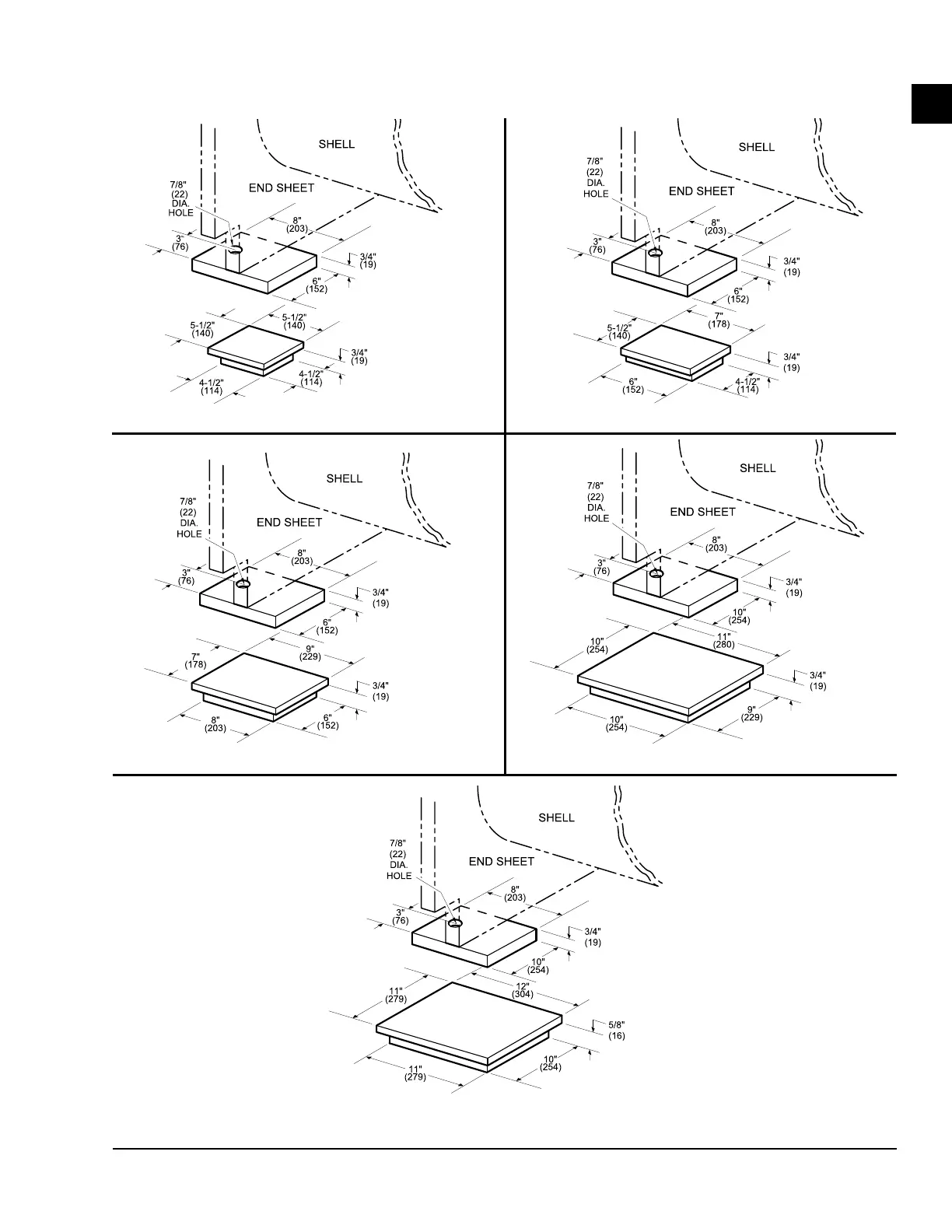

FIGURE 3 - NEOPRENE ISOLATORS
UNIT WEIGHT 100,465 - 130,000 Lbs (45,570 - 58,967 Kgs)
LD12642
