SECTION 2 - INSTALLATION
FLOOR
LINE
FLOOR
LINE
FLOOR
LINE
COMPRESSOR END
MOTOR END
COMPRESSOR END
MOTOR END
COMPRESSOR END
MOTOR END
MM
COND. COND.
COND. COND.
COND. COND.
FRONT
OF UNIT
FRONT
OF UNIT
FRONT
OF UNIT
PP
QQ
SS
UU
RR TT
WW
YY
VV
XX
MM
MM
D D
D D
D D
BBBB
BBBB
DD
DD
DD
DD
CCCC

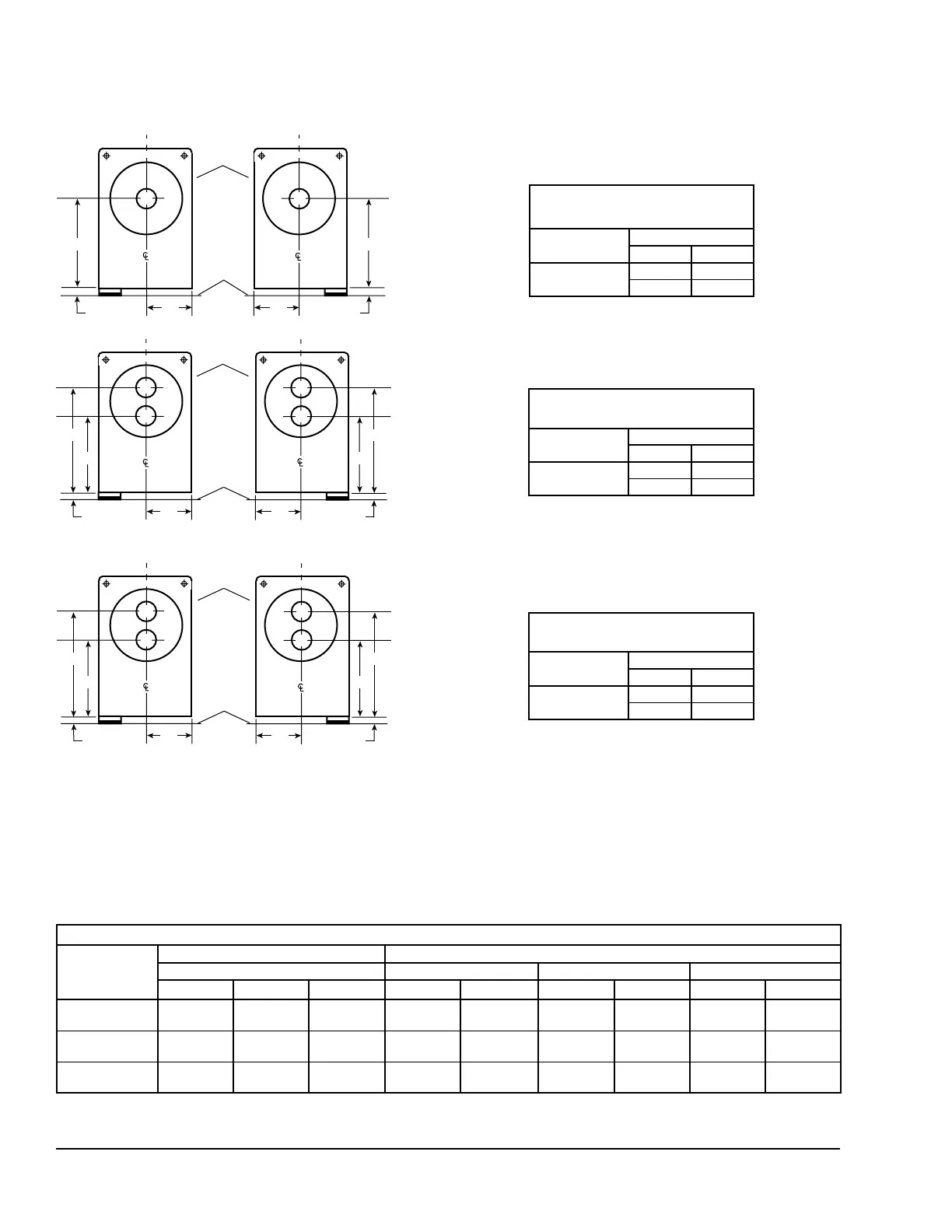

FIGURE 22 - DIMENSIONS – CONDENSER COMPACT WATERBOXES - STANDARD (MM)
CONDENSER – COMPACT WATERBOXES – STANDARD - FT - IN (MM)
COMPACT WATERBOXES – 150 PSI ROUND
CONDENSER
SHELL CODE
NOZZLE PIPE SIZE IN (MM) CONDENSER NOZZLE DIMENSIONS FT-IN (MM)
NUMBER OF PASSES 1-PASS 2-PASS 3-PASS
1 2 3 D CC
5
BB
5
DD
5
BB
5
DD
5
R,S
20"
(508)
18"
(457)
14"
(356)
2'-3 1/2"
(699)
3'-10 1/2"
(1181)
2'-9 1/2"
(851)
4'-11 1/2"
(1,511)
2'-9 1/2"
(851)
4'-11 1/2"
(1,511)
T,V,W
24"
(610)
18"
(457)
16"
(406)
2'-5 1/2"
(749)
3'-11 1/2"
(1207)
2'-9"
(838)
5'-2"
(1,575)
2'-9"
(838)
5'-2"
(1,575)
X,Z
24"
(610)
20"
(508)
16"
(406)
2'-8"
(813)
4'-1 1/4"
(1251)
2'-9 1/4"
(845)
5'-5 1/4"
(1,657)
2'-9 1/4"
(845)
5'-5 1/4"
(1,657)
NOZZLE
ARRANGEMENTS
NUMBER
OF PASSES
CONDENSER
IN OUT
1
PP QG
QQ PP
NOZZLE
ARRANGEMENTS
NUMBER
OF PASSES
CONDENSER
IN OUT
2
RR SS
TT UU
NOZZLE
ARRANGEMENTS
NUMBER
OF PASSES
CONDENSER
IN OUT
3
VV YY
XX WW
See Notes on page 30.
LD07131b
