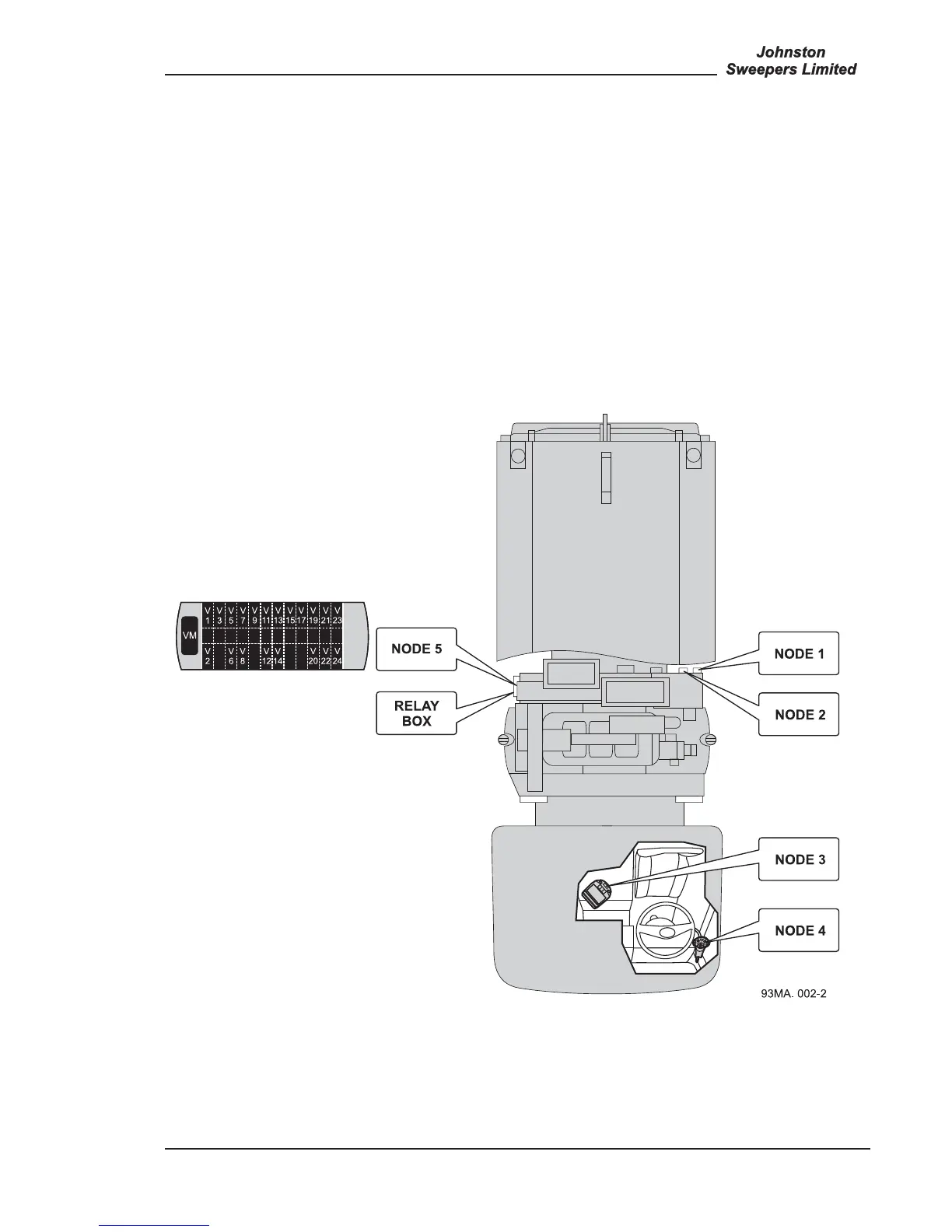

Johnston VT551 - Relay Box

Page Issue 01
Chapter - Electrical System
9:3
VT551 - Maintenance
The electrical system is protected by various fuses mounted in the relay box - See Operators Guide
Chapter 2.
The main feed from the battery to the electrical system is protected by a circuit breaker (MCB) which is
also mounted in the relay box.
The button (A) will pop out when activated and is ‘pushed in’ to reset when the fault has been cleared.
COMPONENT IDENTIFICATION
