Page Issue 01
Chapter - Scheduled Maintenance
7:3
VT551 - Maintenance
95MA. 024

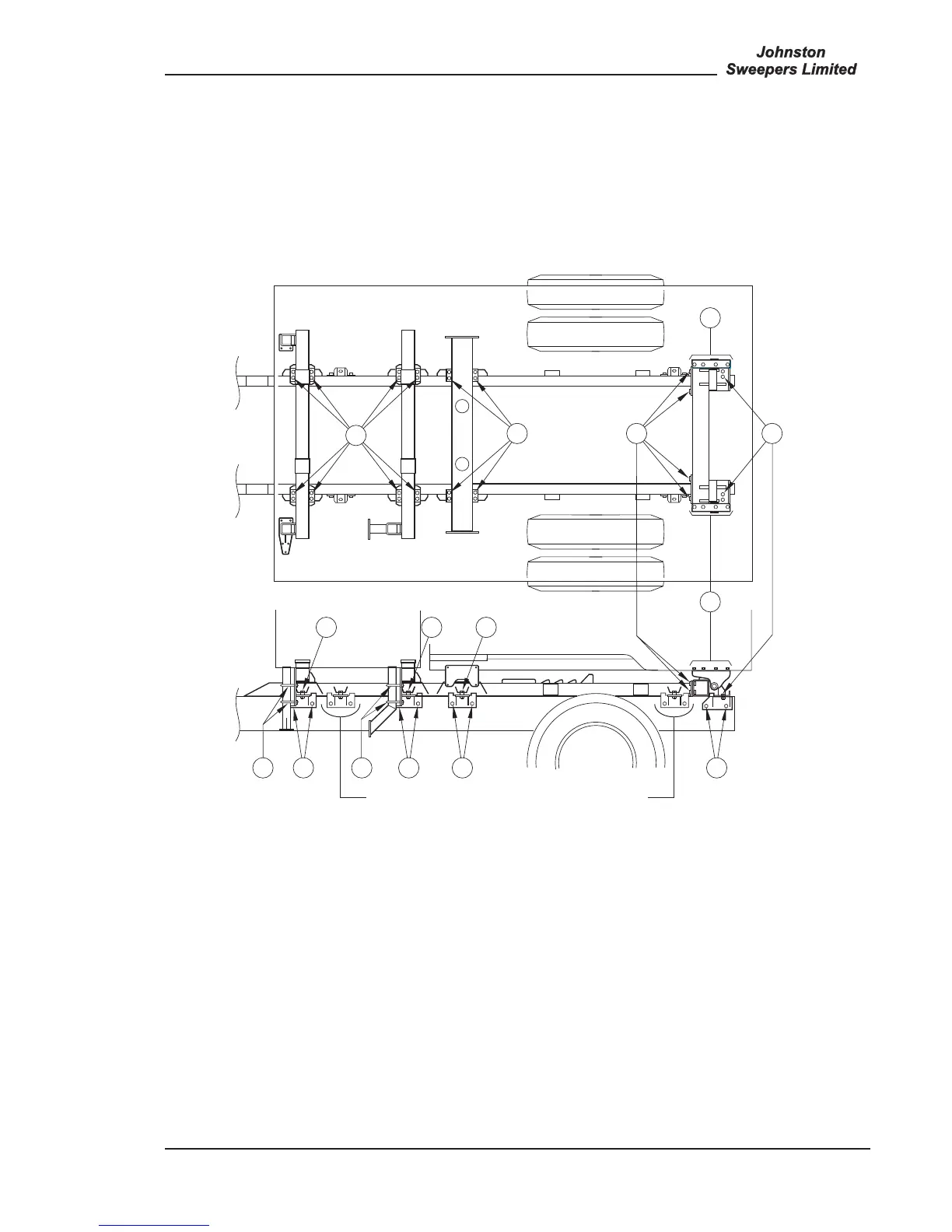

ALTERNATIVE END MOUNTING POSITIONS
(HARDWARE AS PREFERED POSITIONS ie. ‘C’ and ‘D’)
‘A’ = M12 Standard ‘B’ = M12 Grade 10.9 ‘C’ = M14 Grade 10.9
‘D’ = M12, M14 Grade depending on chassis10.9 or M16 Standard
Torque Settings
M12 Standard = 95 Nm (70 lbf/ft)
M12 Grade10.9 = 135 Nm M16 = 235 Nm
M14 Grade 10.9 = 215 Nm (160 lbf/ft)
(100 lbf/ft) Standard (150 lbf/ft)
C
C
C
C
C
AA
D
D
D
D
CC
A
A
SECURITY OF SWEEPING EQUIPMENT
It is necessary to check every six months the security of various components as part of the maintenance
programme.
These fixings are detailed on the illustration below.
CIRCUIT DIAGRAMS
A chart can be found overleaf to assist in finding the circuit diagram required.
The actual circuit diagrams will be found in the appropriate chapter.
