Page Issue 01
Chapter - Water System
10:13
VT550 - Maintenance

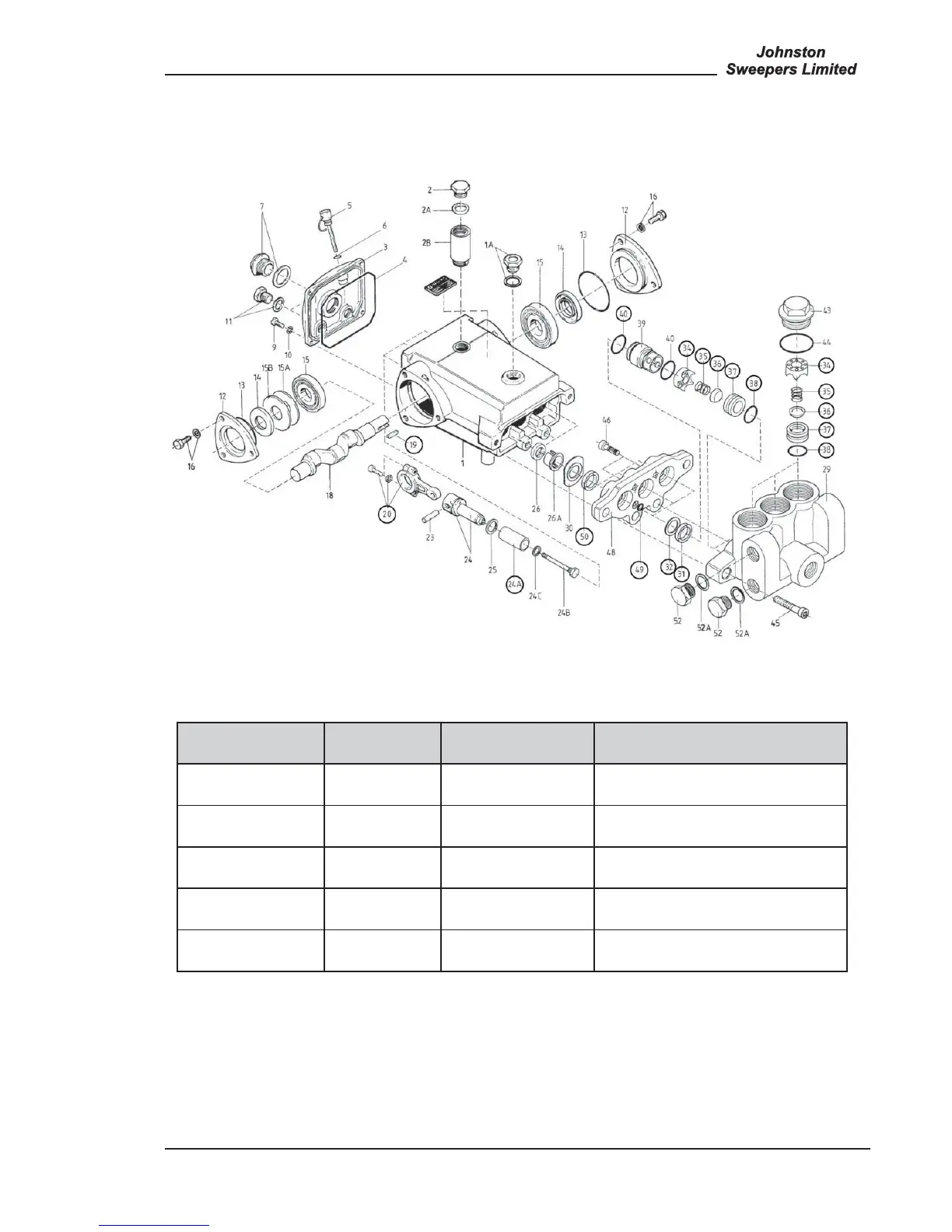

Exploded view of Pump
Item Number Quantity Part Number Description
19 1 283701-13 Woodruff Key
20 3 283701-14 Connecting Rod
24A 3 283701-12 Ceramic Liner
31,32,40,49,50 1 Kit 283701-10 Plunger Seal kit - for 3 plungers
34,35,36,37,38 1 Kit 283701-11 Valve Kit - for the 6 valves
All Copyright and rights are the property of Johnston Sweepers Ltd
