Johnston VT551 - Single Sweep Low Pressure Water - Diagram Sw301 A02

108 pages

Save Page as PDF

To Next Page

To Previous Page

Page Issue 01

Chapter - Water System10:6

VT551 - Maintenance

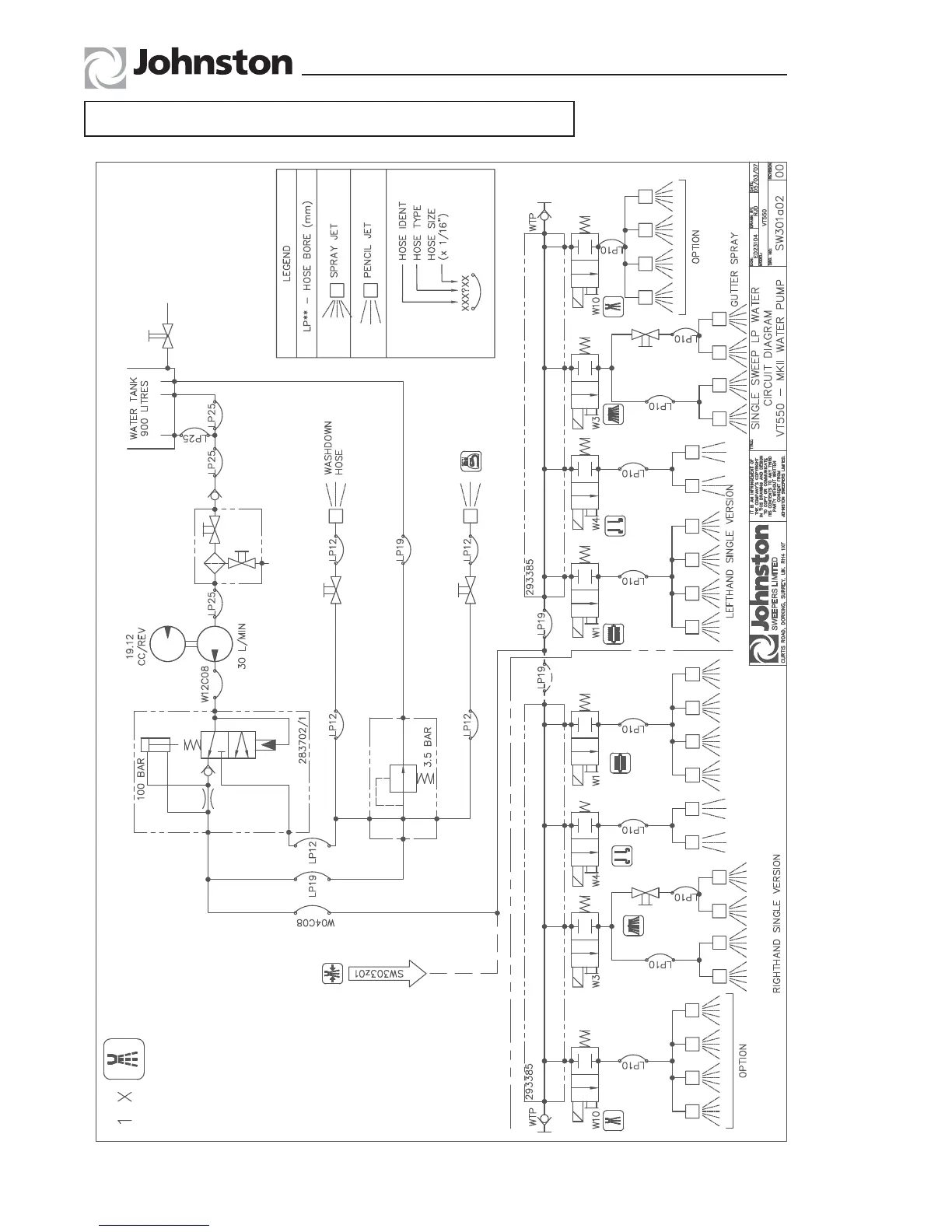

Single Sweep Low Pressure Water - Diagram SW301a02

All Copyright and rights are the property of Johnston Sweepers Ltd
