VT551 - Maintenance
12. FUEL TANK LH (RED DIESEL) - REMOVAL AND REFITTING
1. Drain fuel tank.
2. Remove the red hand rail.
3. Remove left hand worklamp and access ladder.
4. Remove fuel tank sender and fuel pipes.
5. remove high pressure lance bracket (if fitted).
6. Loosen the 2 tank securing bolts.
7. Slide tank out sideways from support metalwork.
9. refit procedure is the reverse.
13. FUEL TANK RH (WHITE DIESEL) - REMOVAL AND REFITTING
1. Drain fuel tank.
2. Remove right hand worklamp.
3. Loosen the 2 tank securing bolts. Slide tank out part way.
4. Remove fuel sender and fuel pipes.
5. Remove the tank completely.
6. The refit procedure is the reverse.
14. ENGINE ACTUATOR - REMOVAL AND REFITTING
1. Remove actuator.
2. Bolt on new actuator to mounting.
3. Connect electrical plug.

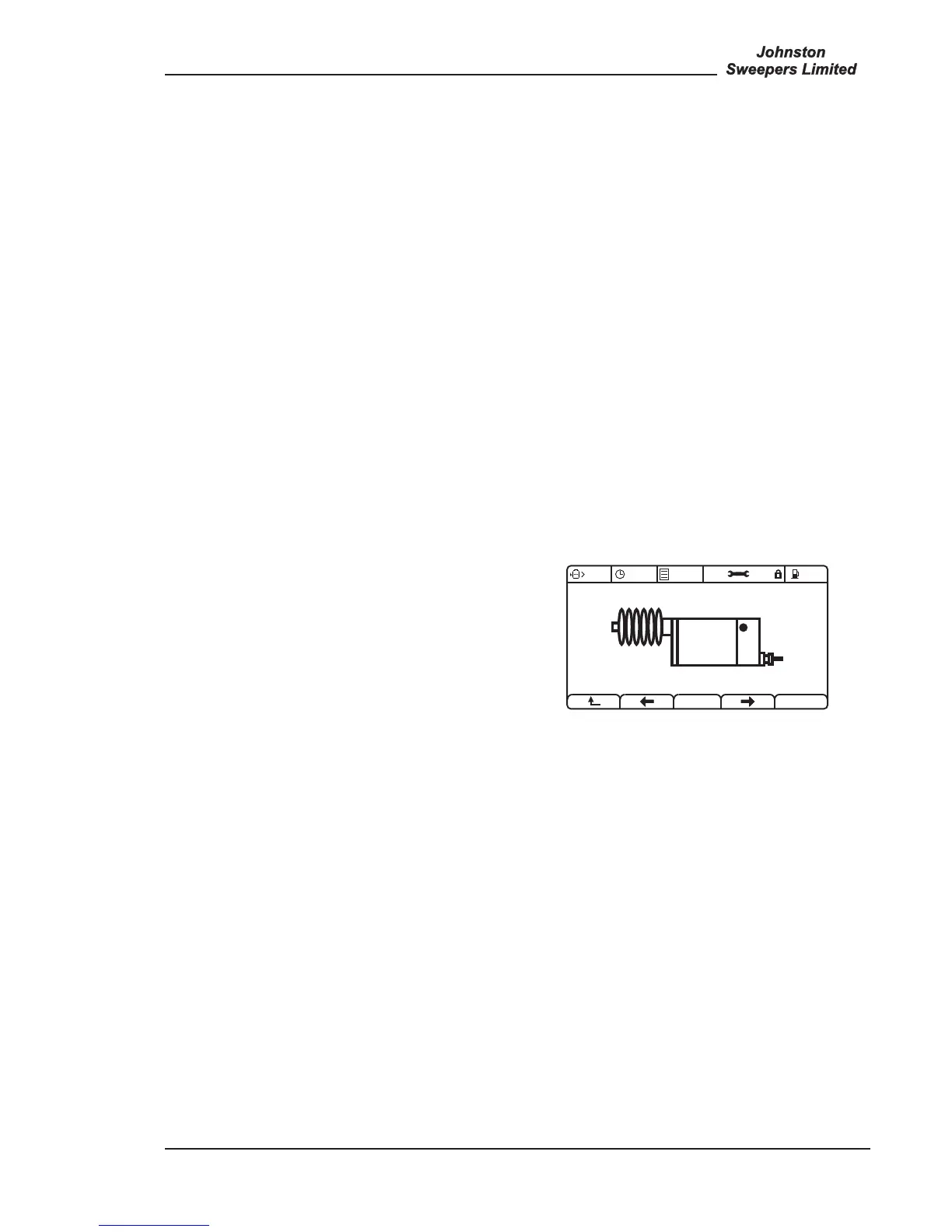

4. Enter CANview menu 4.12.4 and press or to
ensure the actuator is fully extended and stops.
5. Connect up the throttle push rod ensuring that it is
just holding the arm on the injector pump against
the idle speed screw (arm fully clockwise).
Lock off push rod.
93OG. 027-42
