Chapter 3 INSTALLATION OF THE DISPLAY UNIT
3.8 CONNECTING TO THE GYRO AND ELECTROMAGNETIC LOG (NSK UNIT SETTING)
3-21
3
NSTALLATION MANUAL

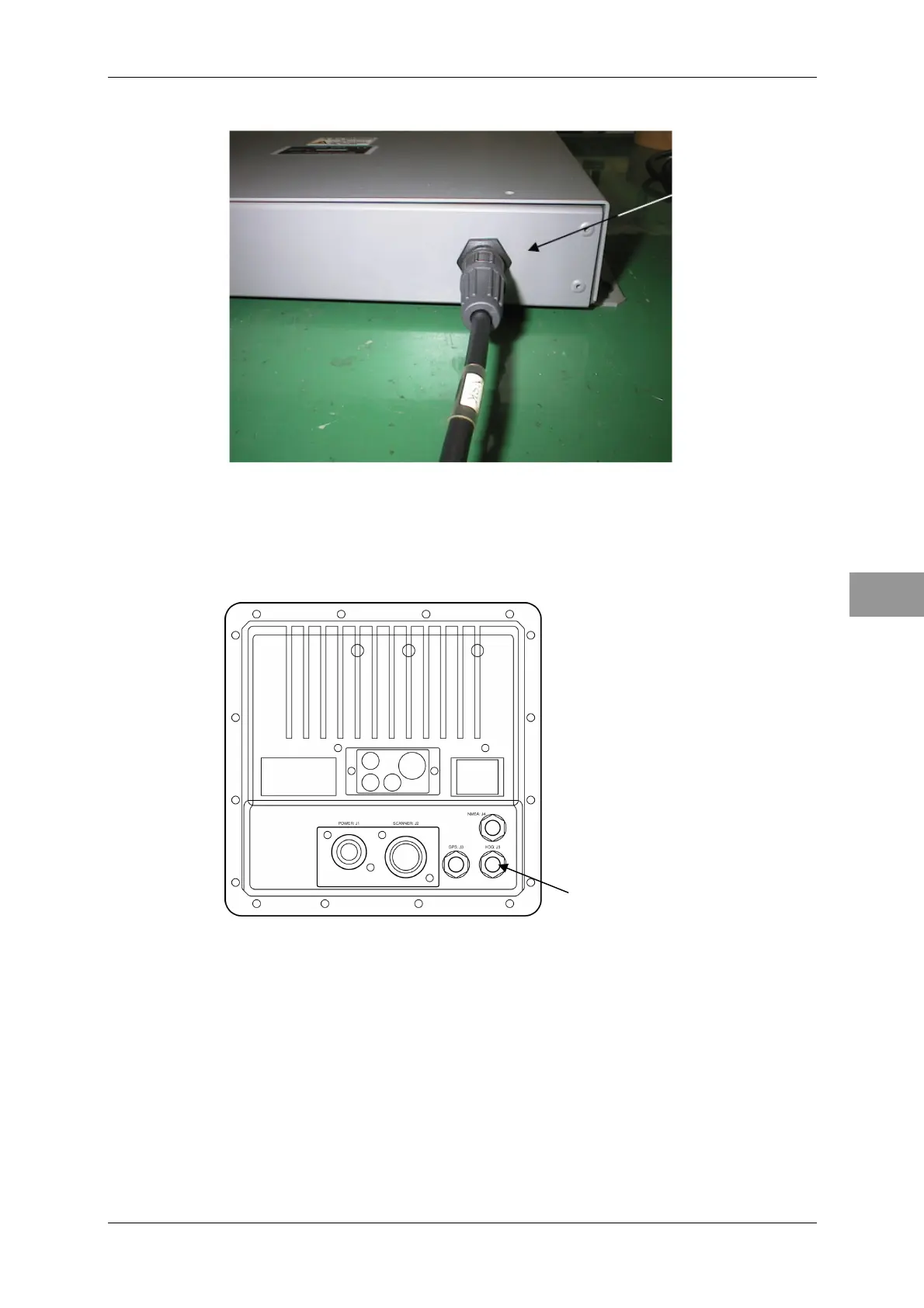

Connecting the NSK unit
Insert the 8-pin connector (NSK) of CFQ-6998 (unit dedicated connection cable that is
enclosed by the NCT-4106A) to the connector of NCT-4106A.
Connecting JMA-3300
Insert the 8-pin connector (IND) of CFQ-6998 (unit dedicated connection cable that is
enclosed by the NCT-4106A) to the connector of the display unit (J5).
Connect the CFQ-6998 8-pin
connector.
To Next Page
