Chapter 8 DETAIL PERFORMANCE

8.8.8 RANGE

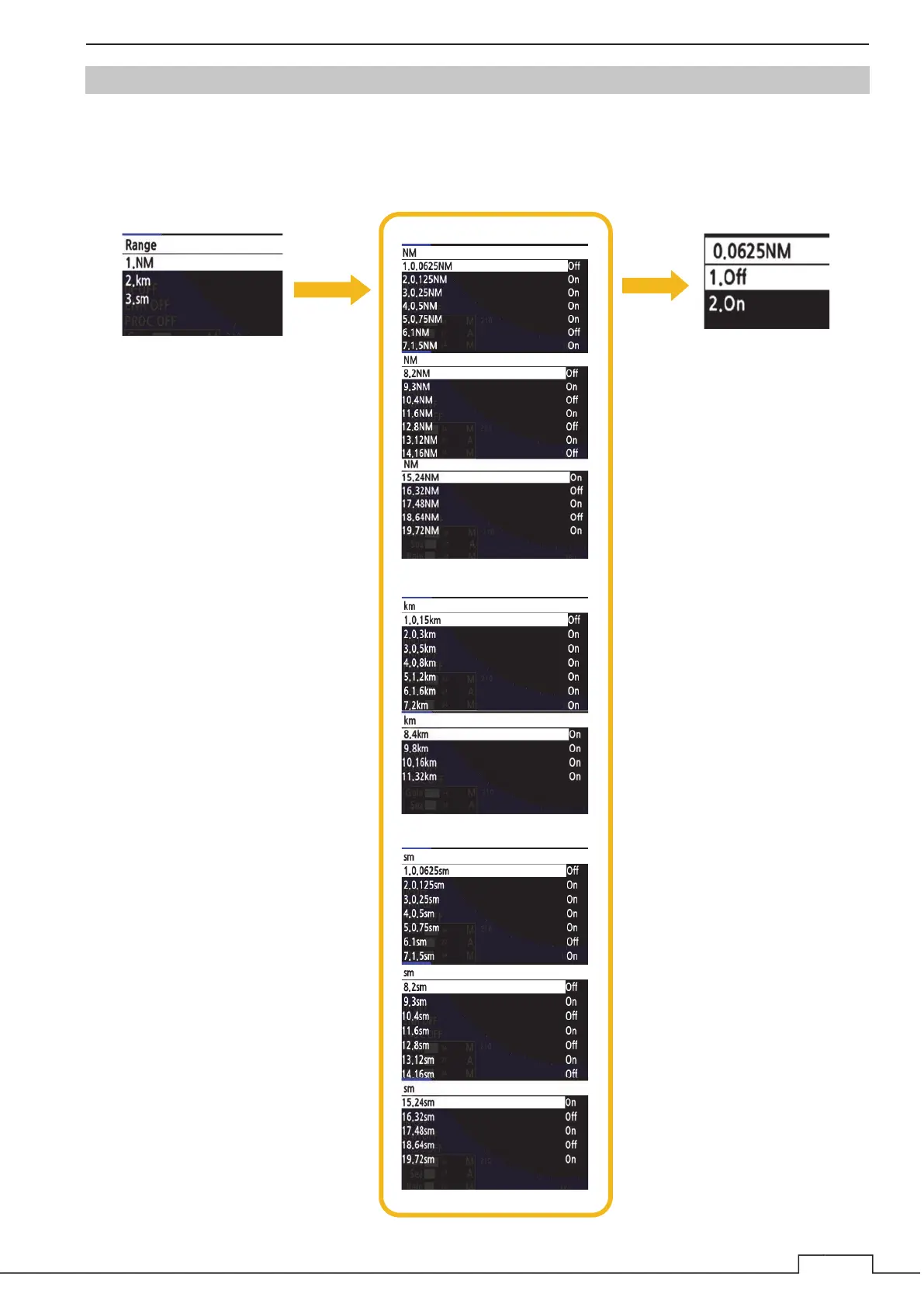

Turn on/off the range display.

* The maximum range of JMA-3404 is 48NM (48sm), and JMA-3406/HS JMA-3411 are 72NM (72sm).

Select each setting item.

Select ON/OFF.
