Chapter 1 INSTALLATION
24

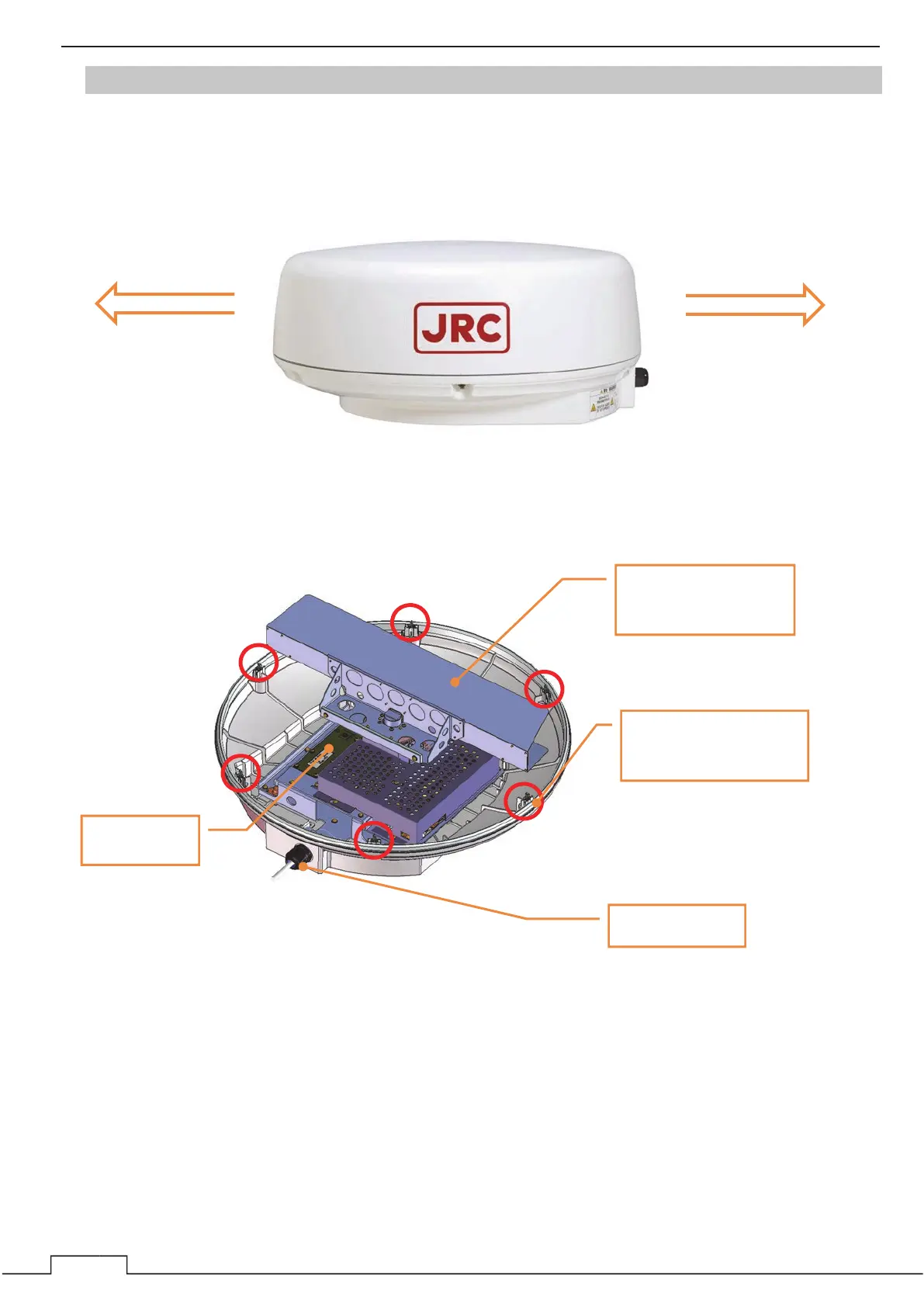

1.4.1 NKE-2043 SCANNER (2 FEET)
Set the cable inlet side to stern.
(Any direction is possible to install and possible to initial setup, but it is better selection to select the cable
length must be minimize along the mast.)
Ship heading
bow stern
Fig. 1-4-1-1
 Open radome
Loosen the screws by using box spanner tool, then you can lift up the radome.
Fig. 1-4-1-2
HORN ANNTENNA
(2FT)
CABLE INLET
RECEIVER
Loosen the screws
(6 points)
