Chapter 8 DETAIL PERFORMANCE SETTINGS
1
8
7
Ch t
9
TRUE OR FALSE ECHOS ON DISPLAY
8.13 CAN
Set the CAN. (This radar display unit supports partly NMEA2000, not compliant fully NMEA2000, and not also
fully IEC61162-3. Thus, we are describing “CAN” in this manual.)
To use CAN with the JMA-3400 series, a CAN cable (optional or commercial) is required.

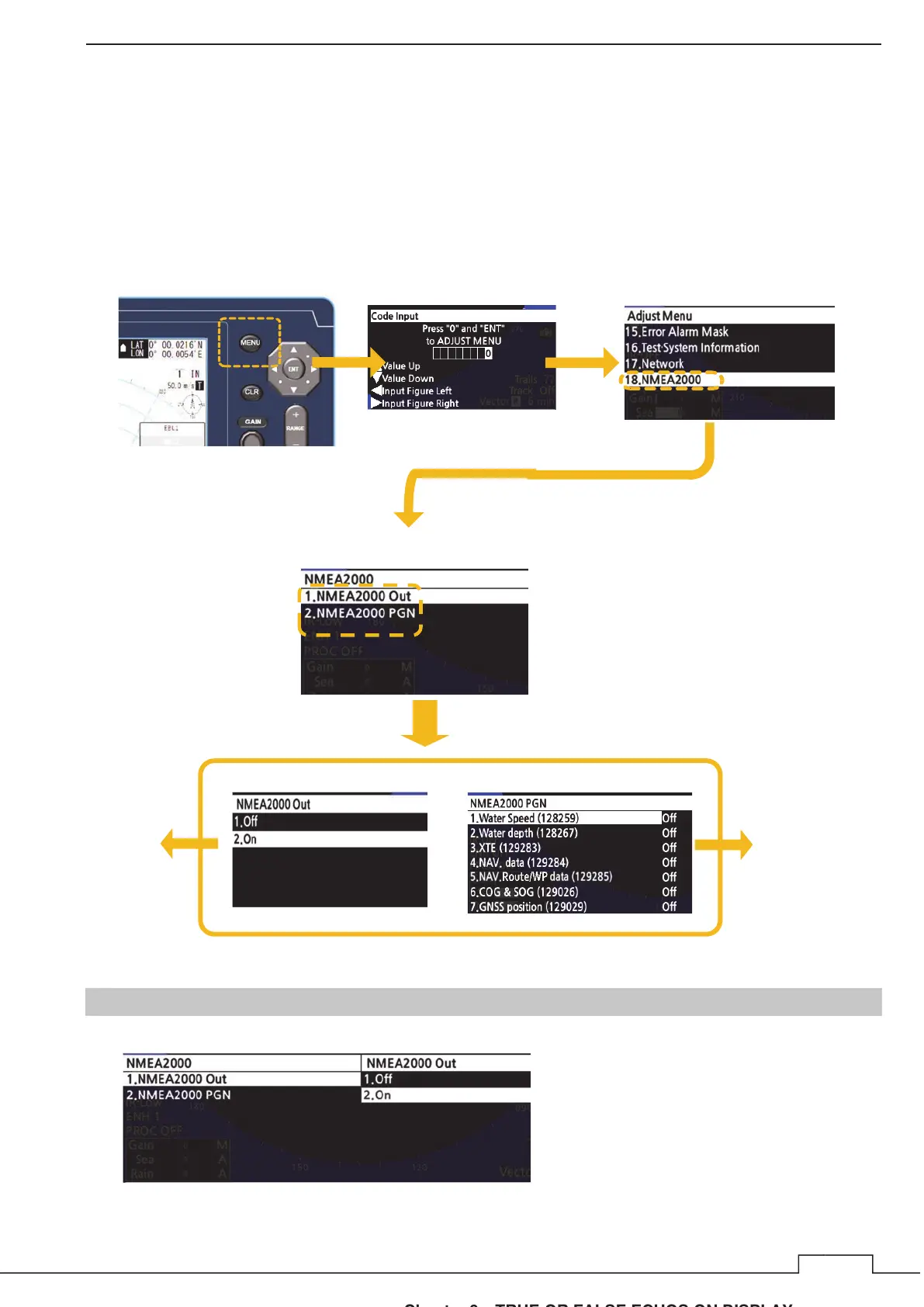

8.13.1 CAN OUT
Set whether to output CAN Out.
䐠 Input "0" and press ENT button.
䐢 Select each setting item.
㻌
䐟 Long press the MENU button.㻌
䐡 Turn the cross key (down) or the
MULTI control right to move the page
and select “NMEA2000”.㻌
CAN Out
CAN PGN㻌
To 8.13.1㻌
To 8.13.2㻌
