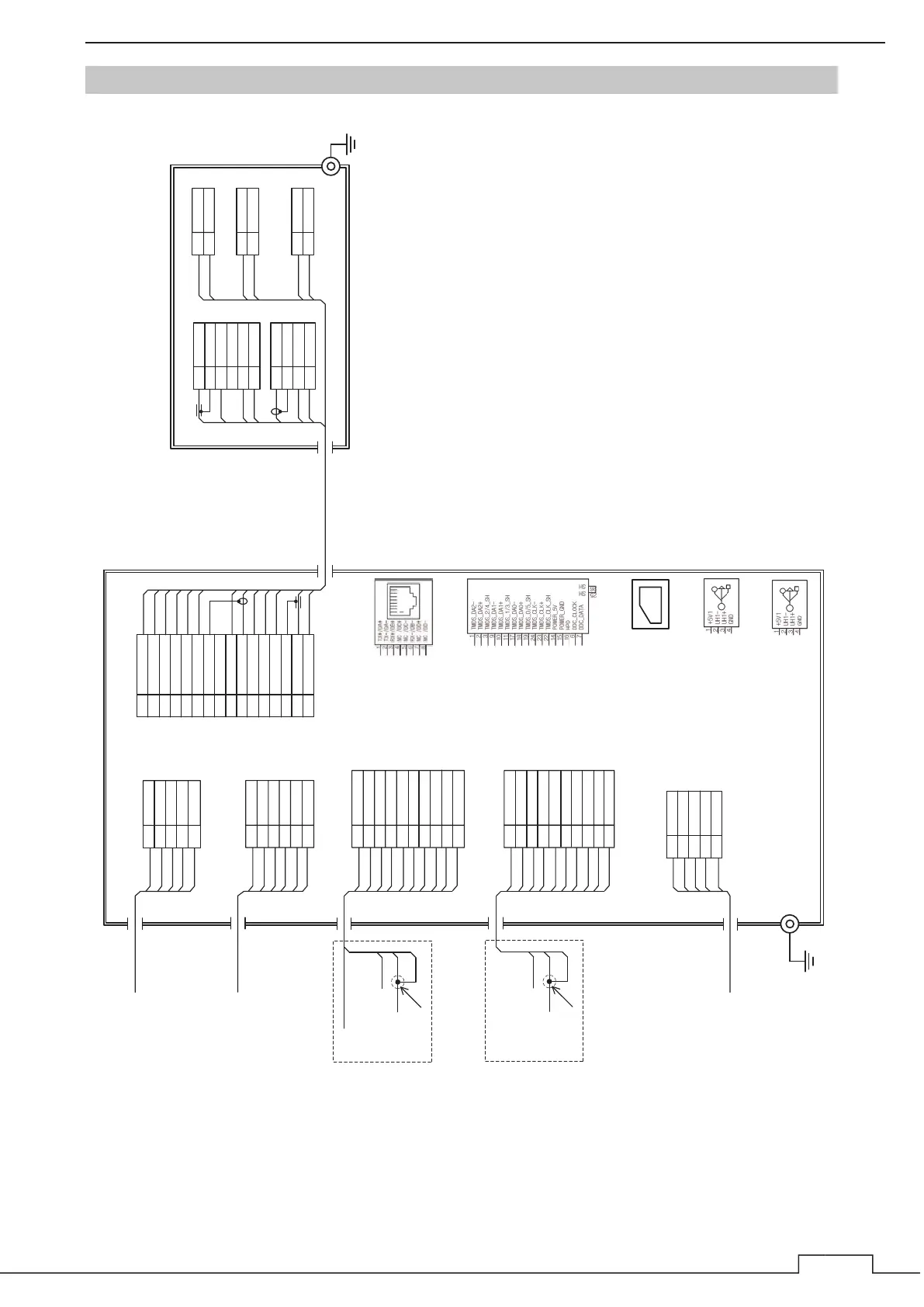

JMA-3406/HS INTERCONNECTION DIAGRAM
FIG A8
NMEA2000
CFQ-7765 (OPTION)
1GND 2V+IN 3V-IN 4CAN-H 5CAN-L
NMEA2000 CN8 (HMC-05PMMP-SF8001)
NCD-2364 DISPLAY UNIT
1+24V
CN1 (LTWDC-5P)
DC IN
2+24V 30V 5 EARTH 4
RED WHT BLK GRN
SHIELD
SHIPS MAINS [JMA-3406]
DC12V/24V (+30%/-10%)
[JMA-3406HS]
DC24V (+30%/-10%)
CFQ-7758 (3m JRC SUPPLY)
1M- 2M- 3M+ 4M+ 52A 6GND 7 VIDEO GND (VDE) 8+12V 91A
10 VIDEO (VD) 11 RS485+ (MTR+) 12 HEADING (BZ) 13 RS-485- (MTR-) 14 TRIG GND (TRGE) 15 TRIGGER (TRG) 16 BEARING (BP)
BLU.T/GRY.T PUR.T/BRN.T WHT.T/ORN.T RED.T/GRN.T BLK.T/SKY.T BLK YEL.T/PNK.T YEL GRN WHT ORN
19-CORES CABLE (OPTION) CFQ-6912-5/10/15/20/30
NKE-2063A/HS SCANNER UNIT
ORN GRN BLK YEL WHT
J1 J2
BLK.T/SKY.T YEL.T/PNK.T BLU.T/GRY.T WHT.T/ORN.T PUR.T/BRN.T RED.T/GRN.T
12A
J3
21A 1M-
J4
2M+ 1M-
J5
2M+
0V
SHIELD NET-S(V+) NET-C(V-) NET-H NET-L
JRC GPS
CFQ-9002 (OPTION)
1+12V 2GND 3RXD- 4RXD+ 5TXD+
GPS CN2 (LTWBD-06P)
RED BLK WHT GRN YEL
6TXD-
BRN
1NMEA1 RX+ (A) 2 NMEA1 RX- (B) 3 NMEA1 TX+ (A) 4 NMEA1 TX- (B) 5
NMEA0183 CN3 (LTWBD-10P)
BRN RED ORG YEL GRN
6
BLU
NMEA2 RX+ (A) NMEA2 RX- (B) NMEA2 TX+ (A) NMEA2 TX- (B)
7
8
1NMEA3 RX+ (A) 2 NMEA3 RX- (B) 3 NMEA3 TX+ (A) 4 NMEA3 TX- (B) 5
NMEA ALARM CN4 (LTWBD-10P)
6
EVENT+ EVENT- AL-COM AL-NO
7
8
9
GND
10
SHIELD
9
GND
10
SHIELD
SCANNER CN9 (SOC-25-16P)
LAN
CN5 (LPJE689DNL)
DVI (DVI-D)
CN6 (DVI-SDNH-24+1-LF)
USB
CN7 (C8317-04AFSSW0R)
USB
CN3 (C8317-04AFSSW0R)
SVGA (800×600 pixcel)
Vertical monitor
CHART CARD
CN2 (AXA2R73061)
new pec/Navionics+ CHART CARD SLOT (FRONT SIDE)
USB2.0 PORT
(FRONT SIDE)
USB2.0 PORT
(REAR SIDE)
FG
PUR
GRY WHT
BLK
BRN RED ORG YEL GRN
BLU
PUR
GRY WHT
BLK
NMEA0183
CFQ-5374 (OPTION)
PNK
(Unused)
BLK
SKY
㻔㻯㼛㼚㼚㼑㼏㼠㻌㼠㼔㼑㻌㼎㼘㼍㼏㼗㻌㼍㼚㼐㻌㼟㼗㼥㻌㼎㼘㼡㼑㻌㼣㼕㼞㼑㼟㻚㻕
BRN, RED, ORG, YEL, GRN, BLU, PUR, GRY, WHT
㻖㻝㻞㻌㼜㼕㼚㻌㼏㼛㼚㼚㼑㼏㼠㼛㼞
NMEA0183
CFQ-5374 (OPTION)
PNK
(Unused)
BLK
SKY
㻔㻯㼛㼚㼚㼑㼏㼠㻌㼠㼔㼑㻌㼎㼘㼍㼏㼗㻌㼍㼚㼐㻌㼟㼗㼥㻌㼎㼘㼡㼑㻌㼣㼕㼞㼑㼟㻚㻕
BRN, RED, ORG, YEL, GRN, BLU, PUR, GRY, WHT
㻖㻝㻞㻌㼜㼕㼚㻌㼏㼛㼚㼚㼑㼏㼠㼛㼞
FG
Cable length limitations [JMA-3406] MAX 20m (DC12V) MAX 30m (DC24V) [JMA-3406HS] MAX 30m (DC24V)
1ETIY 2ETIYE 3EXBP 4 EXBPE 5EXBZ 6EXBZE 1VD 2VDE 3COM+ 4COM-
