JMA-9172-SA Instru
ction Manual
>
B.DRA
WINGS
>

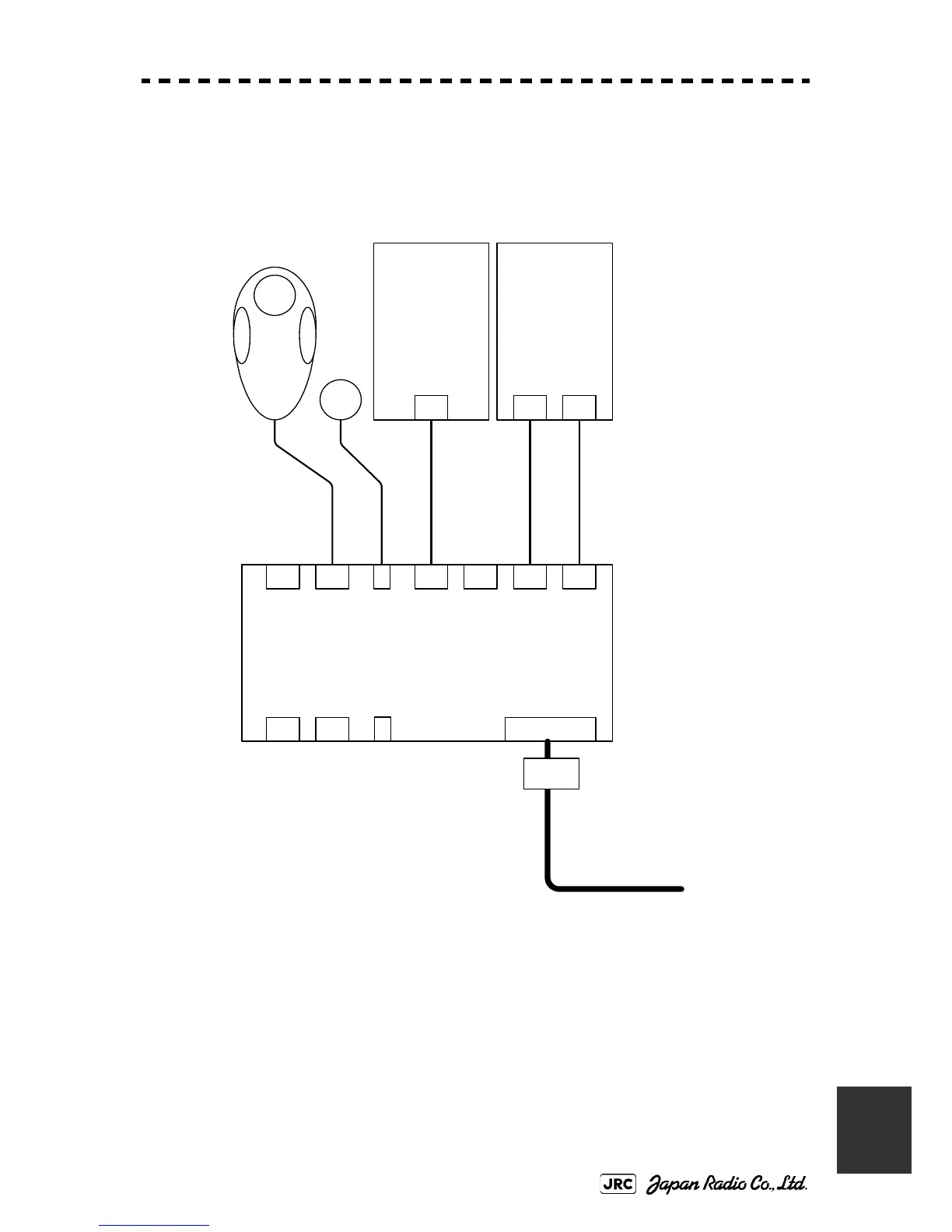

B.1 Interconnection Diagram of Display Unit
B
ļ¼
7
B
B.1.6
NCE-5322-RT
Fig B-6:
Interconnection Diagram of NCE-5322-R
T
6P
J6411
6P
J6410
6P
J6409
6P
J6408
2P
J6406
7P
J6405
14P
J6404
14P
J6403
15P
J6402
30P
J6401
OP
ERAT
ION C
IRCU
IT D
C
CK
-10
07
PC
6
40
14P
J6101
15P
J6102
OPERATION
CIRCUIT
A
CCK-100
5
PC61
0
7P
J6201
OPER
ATION
CIRCUIT B
CCK-1006
PC620
SP1
A1
OPER
ATION UNI
T
NCE-
5322-R
T
W62 H-7ZCRD1332
W65 H-7Z
CRD1335
W63 H-7ZCRD1333A
W64 H-7ZCRD1334
FL1
2P
J6407
W68
2m H-7ZCRD1338
CMD-1031-
RT (NCE-532
2-RT)
Operat
ion Uni
t Inte
rconnecti
on
448
450
Table of Contents
Table of Contents
29
Section
10
The Mounting Point of the Warning Label
16
Equipment Appearance
20
Glossary
23
Table of Contents
29
Table of Contents
35
Function of this System
43
Functions
43
General and Equipment Composition
43
Features
44
Configuration
46
Exterior Drawings
47
General System Diagrams
56
Section 2
59
Names and Functions of Control Panel Keys and Functions of
59
Software Buttons
59
Names of Display
61
Display Information
69
Names and Functions of Control Panel Keys
71
Functions of Software Buttons
76
Main Menu
88
Section 3 Basic Operation
93
Default Chapter
93
Operation Flow
93
Basic Operation
97
Operation Flow
97
Power on and Start the System
97
Power on and Start the System
98
Acquire and Measure Data
100
Display and Measure with Reference to CCRP
100
Observe and Adjust Video
100
End the Operation and Stop the System
101
Observe and Adjust Video
102
Adjust Monitor Brilliance [BRILL]
102
Change Observation Range [RANGE+/-]
102
Tune
103
Adjust Gain [GAIN]
104
Suppress Sea Clutter [SEA]
105
Suppress Rain/Snow Clutter [RAIN]
107
Reset Alarm Buzzer [ALARM ACK]
109
To Get the Appropriate Image that Targets Can be Easily Observed
110
Operation Procedures
111
Move Cross Cursor Mark by Trackball
111
Operate Software Buttons
112
Basic Menu Operation
113
Operation on Numeric Value, Latitude / Longitude and Character Input Menu
114
Overview of Menu Structure
119
3.4 General Radar Operation
120
Interference Rejection (IR)
120
Switch Transmitter Pulse Length [GAIN]
121
Target Enhance (ENH)
122
Use Video Processing (PROC)
123
Switch Azimuth Display Mode (AZI MODE)
124
Switch True/Relative Motion Display Mode (TM/RM)
125
Move Own Ship's Display Position (off Center)
126
Display Radar Trails (Trails)
127
Zoom (X2)
130
Hide/Display Range Rings [HL OFF]
131
Hide Graphics Information on Radar Display [DATA OFF]
131
Switch Day/Night Mode [DAY/NIGHT]
132
Adjust Operation Panel Brilliance [PANEL]
132
Set True Bearing
133
Set Own Ship Speed
133
Magnet Compass Correction (MAG Compass Setting)
134
Set Drift Correction
135
Use Own Ship's Track
136
Display Own Ship's Track (Display Own Track)
136
Set Display Color of Own Ship's Track (Display Own Track Color)
137
Menu Operation
137
Save Own Ship's Track (Own Track Memory)
138
Cancel Saving of Own Ship's Track (Own Track Memory)
138
Clear Own Ship's Track (Clear Own Track)
139
Use Expanded Own Ship's Track (Own Track Type)
139
Use Water Depth Track (Water Depth Track)
141
Use Water Temperature Track (Water TEMP Track)
142
Use Tidal Current Track (Current Vector Track)
143
Display User Map
144
Create User Map (Mark/Line)
144
Set User Map Display (Mark Display Setting)
147
Edit User Map (Edit User Map)
149
Correct Position on User Map (Shift User Map)
157
Save User Map
158
Set and Display Geodetic System (Geodetic)
162
Use Route Function
164
Display Route/Destination Mark (Select Route)
164
Edit Route (Set Route Sequence)
165
Edit Route Make with Latitude and Longitude (Waypoint Input)
172
Use Route Monitoring Function (Waypoint/Route Alarm)
176
Method of Using Route
178
Detailed Route Settings
179
Clear Waypoint/Route Data (Clear Wpt/Route Data)
184
Operate Route Data File
185
Applied Operations
189
Set Radar Signal Processing (Process Setting)
189
Video Noise Rejection
190
Set Radar Trails (RADAR Trails Setting)
193
Set Scanner Unit (TXRX Setting)
195
Set Cursor (Cursor Setting)
196
Set Radar Display (Display Setting)
197
Adjust Sound Volume (Buzzer Volume)
200
Set User Option Keys [OPTION 1/2]
200
Set Navigation Data Display (Multi Window Setting)
202
AUTO Backup
207
Use Function Key [User
209
Use Function Key [User]
210
Function Setting Menu Items
210
Overview of Function Operations (User Function Setting)
211
Overview of Saved Function Setting Data
215
Use User Setting
216
Save Operating State (Save User Setting)
216
Load Operating State (Load User Setting)
217
Delete Operating State (Delete User Setting)
217
Using Card
218
Operate File on the Card (File Manager)
218
Receive Port Setting
225
Receive Port Setting (RX Port)
225
Section 4 Measurement of Range and Bearing
227
Use of Navigation Tools
227
Measurement of Range and Bearing
229
Use of Navigation Tools
229
Using Cursor (Cursor)
230
Using Range Rings (Range Rings)
230
Using Electronic Bearing Line (EBL1/EBL2)
231
Vrm Operation
235
Using Parallel Index Lines (PI Menu)
236
Operating EBL Maneuver Function (EBL Maneuver Setting)
242
Operating EBL, VRM, and PI with Cursor
244
Measurement of Range and Bearing
247
Measurement with Cursor Position (Cursor)
248
Measurement with Electronic Bearing Line and Variable Range Marker [EBL] [VRM]
248
Measurement with Two Arbitrary Points
249
Section 5 Operation of Target Tracking and Ais
251
Operation of Target Tracking and Ais
253
Preparation
253
Collision Avoidance
254
Basic Concept of Collision Avoidance
255
Marine Accidents and Collisions
255
Radar and Collision Avoidance
256
Definitions of Symbols
257
Radar Display
261
Vector Display
261
Cursor Modes (Cursor)
263
Setting Collision Decision Criteria
265
Setting the GPS Antenna Location
266
Setting Vectors (Vector Time)
266
Automatic Acquisition
267
Target Tracking Operation
267
Acquiring Target [ACQ]
267
Canceling Unwanted Tracked Targets [ACQ CANCEL]
269
Tracked Target Data Display [TGT DATA]
270
Displaying Target ID No.(Target Number Display)
271
Adding Tracked Target ID Name (Name)
272
Reference Target (Reference)
273
Operation Test (TT Test Menu)
274
Ais Operation
279
Restrictions
279
Setting AIS Display Function (AIS Function)
279
Activate AIS Targets (Activate AIS)
280
Deactivate AIS Targets (Deactivate AIS)
280
Displaying AIS Information [TGT DATA]
281
Displaying Target ID No. (Target Number Display)
284
Setting AIS Filter (AIS Filter Setting)
285
Conditions for Deciding AIS Target to be Lost
288
Setting Conditions for AIS Alarm (AIS Alarm Setting)
289
DECISION of TARGETS as IDENTICAL (Association)
290
Setting of Function to Decide Targets as Identical (Association)
290
Setting of Conditions for Deciding AIS and Tracked Targets as Identical (Association Setting)
290
Types of Decision Conditions to be Set
291
Alarm Display
292
CPA / TCPA Alarm
293
Alarm for New Target Acquired in Automatic Acquisition Zone (New Target)
294
Lost Target Alarm (Lost)
294
Gyro Set Alarm
295
Track Function
296
Past Position (Past POSN)
296
Target Ship's Tracks (Target Track)
297
TRIAL MANEUVERING (Trial Maneuver)
306
Trial Maneuvering in the True Vector Mode
307
Trial Maneuvering in the Relative Vector Mode
308
Operation of Trial Maneuvering Function
309
Section 6 True and False Echoes on Display
311
Radar Wave with the Horizon
313
True and False Echoes on Display
313
Strength of Reflection from the Target
315
Sea Clutter and Rain and Snow Clutter
317
False Echoes
321
Display of Ais-Sart
324
Display
324
Numeric Display
325
Section 7 Settings for System Operation
327
Settings at Installation
329
How to Open the Serviceman Menuļ¼Service man Menu
329
GYRO I/F Setting
330
Tuning (Tune Adjustment)
333
Bearing Adjustment
333
Range Adjustment
333
Navigator Setting (Device)
334
Setting of True Bearing Value
335
Antenna Height Setting (Antenna Height)
335
Setting of CCRP (CCRP Setting)
336
Settings for System Operation
329
7.2 Settings
339
Communication Port Setting (COM Port Setting)
339
Sector Blank Setting (Sector Blank)
343
Setting of Bearing Pulses from Scanner Unit (Output Pulse)
344
Slave Mode Setting (Master/Slave)
344
Language Setting (Language)
345
Date Time Setting
346
Input Installation Information
347
Setting the Alarm System
347
Network Setting (Network)
352
LAN Port Setting)
355
Adjustment
358
Noise Level Adjustment (Noise Level)
358
Adjustment of Target Tracking Function (TT)
359
Main Bang Suppression Level Adjustment (MBS)
361
Adjustment of Performance Monitor (SSR MON)
363
7.4 Maintenance Menu
366
Antenna Safety Switch (Safety Switch)
366
Initialization of Memory Area(Area Initial)
367
Save of Internal Memory Data (Card1/2)
368
Restoration of Scanner Unit Operation Time (TXRX Time)
369
Update of Character String Data (String Data Update)
371
Section 8 Countermeasures for Trouble and Adjustment
373
Section 8
373
Countermeasures for Trouble and Adjustment
373
Routine Maintenance
375
8.2 Maintenance on each Unit
376
Scanner Unit NKE-1532
376
Display Unit (NCD-9170)
378
Performance Check
379
Check Performance on Test Menu
379
Monitor Test
380
Self-Diagnosis Function (Self Test)
380
Operation Unit Test (Keyboard Test)
382
Check of the Performance Monitor (MON Display)
383
System Alarm Log Display
384
System Information
384
Replacement of Major Parts
385
Parts Required for Periodic Replacement
386
Replacement of Motor
386
Scanner Unit Nke-1532
386
Replacement of Motor
389
Replacement of 23Inch LCD
391
Replacement of Backup Battery
394
Countermeasures for Trouble and Adjustment
375
Section 9 Trouble Shooting and After-Sales Service
399
Default Chapter
401
Fault Finding
401
List of Alarms and Other Indications
401
Fuse Checking
406
Operation Checking
406
Trouble Shooting and After-Sales Service
401
Trouble Shooting
407
Circuit Block to be Repaired
408
After-Sales Service
410
Keeping Period of Maintenance Parts
410
Recommended Maintenance
410
When You Request for Repair
410
Radar Failure Check List
411
Disposal
415
Disposal of the Unit
415
Disposal of Used Batteries
415
About the China Rohs
416
Section 10
415
Section 11 Specification
417
Specification
419
Jma-9172-Sa Type Radar
419
Scanner Unit (Nke-1532)
420
Display Unit Ncd-9170
421
Target Tracking Function
424
Ais Function
425
Appendix A Nqe-3141 Interswitch Unit
427
Appendix A OVERVIEW
429
Interswitch Setup
429
Interswitch Operation
431
Operation Flow
431
Inter Switch Menu
432
Change of Connection Pattern (with 2 Display Units
434
Change of Connection Pattern (with 3 or more Display Units
435
Operating Connection Pattern Files (File Operations
436
Names of Display Units and Scanner Units
437
Reference
438
Notes on Changing Connection Pattern
438
Notes on Connecting Slave Display Unit
438
Preheat Time after Change of Connection Pattern
438
Setting at Installation
439
NQE-3141 Interswitch Unit
429
Appendix B Drawings
441
Appendix B Interconnection Diagram of Display Unit
443
Ncd-9170T
445
Nwz-178-R
446
Nwz-178-Rt
447
Nce-5322-R
448
Nce-5322-Rt
449
Power System Diagram of Display Unit
450
Signal Flow Diagram of Display Unit
451
Primary Power System Diagram
452
Block Diagram of Scanner Unit
453
Interconnection Diagram of Scanner Unit
455
Nke-1532 (Ac110V
456
Nke-1532 (Ac220V
457
Terminal Board Connection Diagram
458
Jma-9172-Sa
459
Drawings
443
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the JRC JMA-9172-SA and is the answer not in the manual?
Ask a question
JRC JMA-9172-SA Specifications
General
Brand
JRC
Model
JMA-9172-SA
Category
Marine Radar
Language
English
Related product manuals
JRC JMA-9133-SA
572 pages
JRC JMA-9132-SA
572 pages
JRC JMA-9123-7XA
572 pages
JRC JMA-9122-9XA
572 pages
JRC JMA-9110-6XA
572 pages
JRC JMA-9123-9XA
572 pages
JRC JMA-9122-6XA
572 pages
JRC JMA-933B-SA
486 pages
JRC JMA-9932-SA
407 pages
JRC JMA-9922-9XA
407 pages
JRC JMA-9923-7XA
407 pages
JRC JMA-9900 Series
125 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
