B.4 Primary Power System Diagram

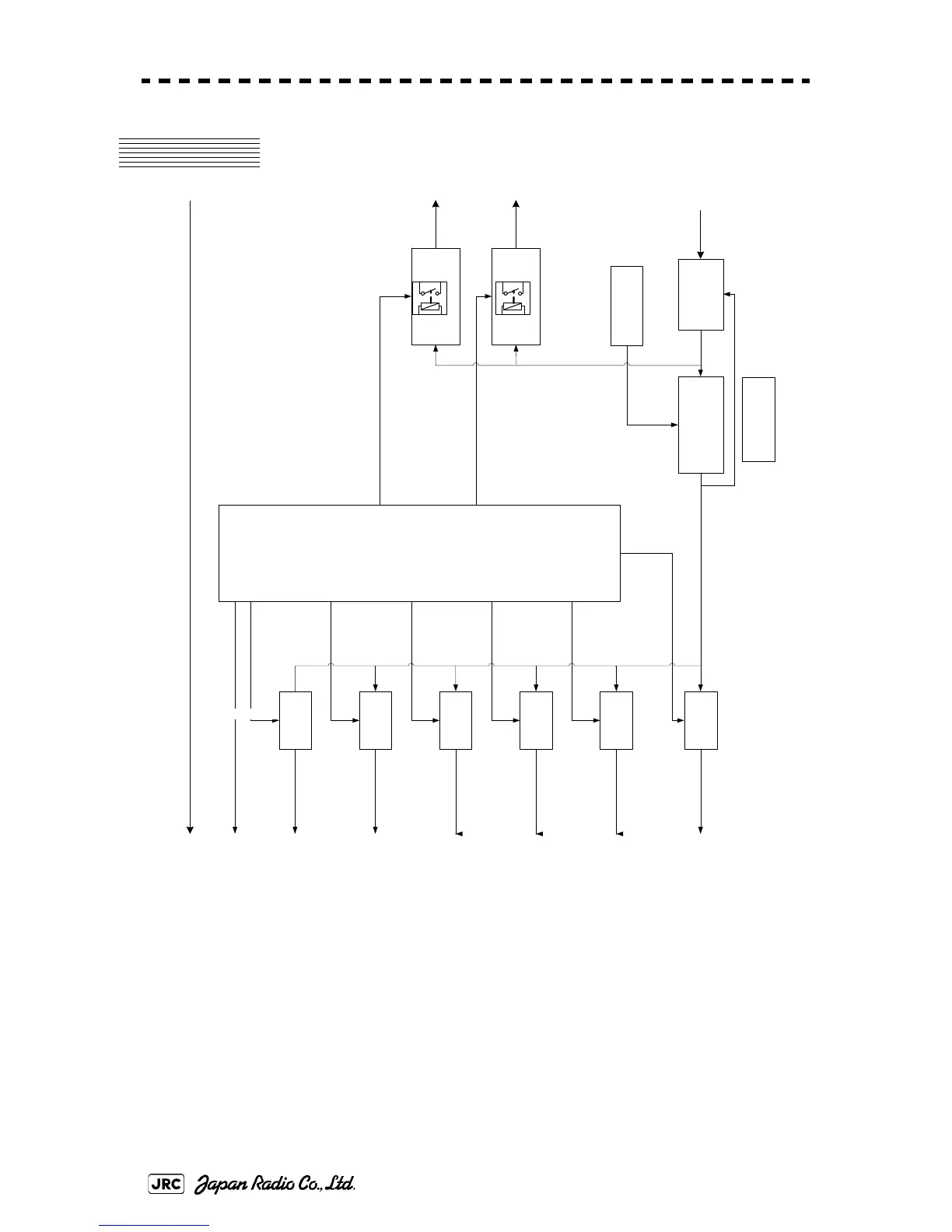

Fig B-9: Primary Power System Diagram
POWER CONTROL
CIRCUIT
FAN ALM POWER CONTROL
INTERSWITCH=1A OPERATION UNIT=0.5A(typ) GYRO I/F CIRCUIT=0.1A(typ)
SCANNER X BAND_2.5A, S BAND_3.0A
RADAR PROCESS CIRCUIT = 1.2A(typ) ARPA PROCESS CIRCUIT = 0.15A(typ) AIS PROCESS CIRCUIT = 0.15(typ) TERMINAL BOARD = 1.0A(typ)
AC100-115V AC220-240V 50/60Hz,1φ
SCANNER
MOTOR
POWER
AC100/230V
1φ
OVER VOLTAG E
PROT ECTION
AC100-115V AC220-240V
50/60Hz,1φ
RADAR PROCESS CIRCUIT = 2.2A(typ) ARPA PROCESS CIRCUIT = 0.1A(typ) AIS PROCESS CIRCUIT = 0.1(typ) TERMINAL BOARD = 0.2A(typ)
RADAR PROCESS CIRCUIT = 0.1A(typ) TERMINAL BOARD = 0.4A(typ) RADAR PROCESS CIRCUIT = 0.1A(typ) TERMINAL BOARD = 0.1A(typ)
BATTRY
DC24V
OPERATION UNIT = 0.1A
P+12V
+48V±3V
+5. 0V +3. 3V
-12V +12V
CIRCUIT
BREAKER
LI NE FILT ER
VOLTAGE SELCT
SWITCH
MONITOR UNIT POWER
SCANNER MOTOR POWER
