3-23
3.3.7 Overview of Menu Structure
The menu structure of this radar system consists of the total nine (9) menus which are seven (7)
frequently used function menus, one (1) main menu, and one (1) service man menu used for the
installation settings.

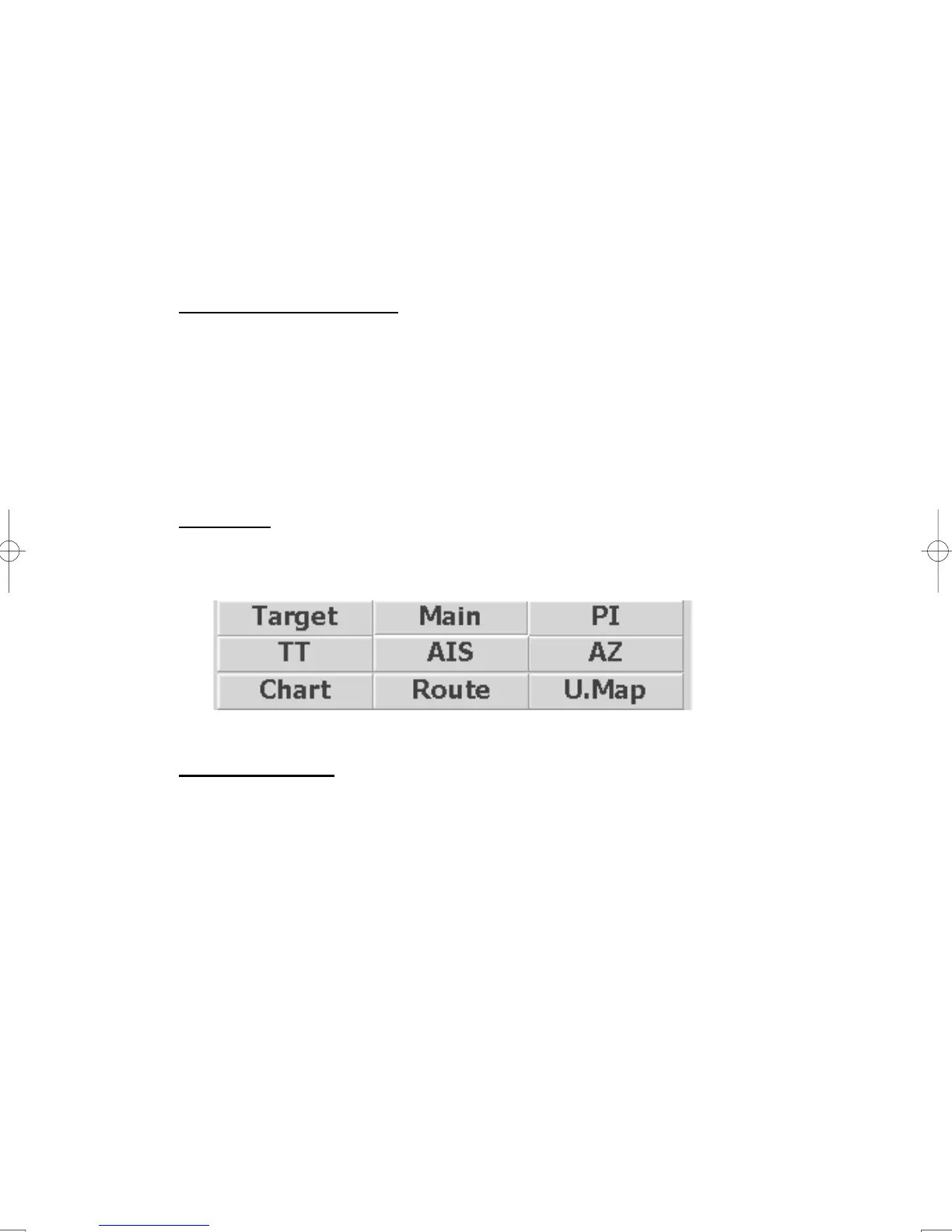

Software buttons for opening those menus are displayed in the menu area on the lower right of the radar
screen.
To prevent incorrect use, enter the special code to open the service man menu.
For operating the service man menu, see Section “7.1.1 How to Open the Serviceman Menu”.
Frequently used functions
Target Used for displaying the tracked target information or the navigation information.
PI Used for operating and setting the parallel-index-line function.
TT Used for operating and setting the target tracking function.
AIS Used for operating and setting the AIS display function.
AZ Used for operating and setting the automatic acquisition function.
Chart Used for operating and setting the chart display function.
Route Used for operating and setting the route function.
U.Map Used for operating and setting the user map function.
Main menu
Main Used for operating and setting the functions except the above functions.
Service man menu
This menu is used for operation and settings when a system is installed.
It is not used during normal operation.
The special code must be entered to open the service man menu.
