[III] Settings in PI Menu
The operation of parallel index lines can be set in the PI Menu.
Procedures 1 Open the PI Menu by performing the following menu operation.
PI
[1] Display For All Lines
Sets the parallel index line display to on or off.
Check Mark :Parallel index lines are displayed.
No Check Mark :Parallel index lines are not displayed.
[2] Operation Mode
Sets an operation mode for parallel index lines.

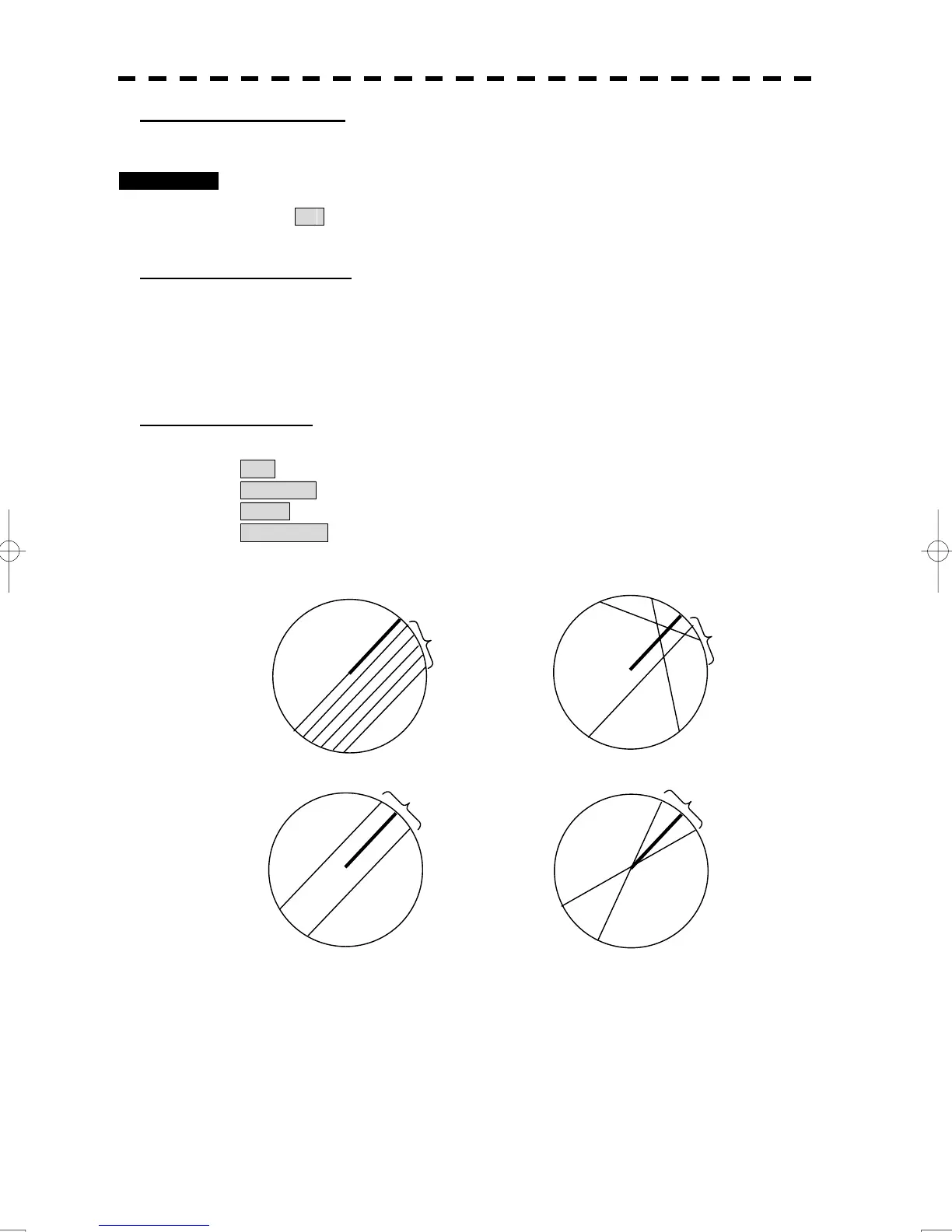

All :All the parallel lines are operated at the same time.
Individual :The bearing of each line is operated individually.
Track :Equally spaced lateral lines are displayed on both sides.
Equiangular :Two lines intersecting at the center of a circle are displayed.
All
PI
Individual
PI
Track
PI
Equiangular
PI
