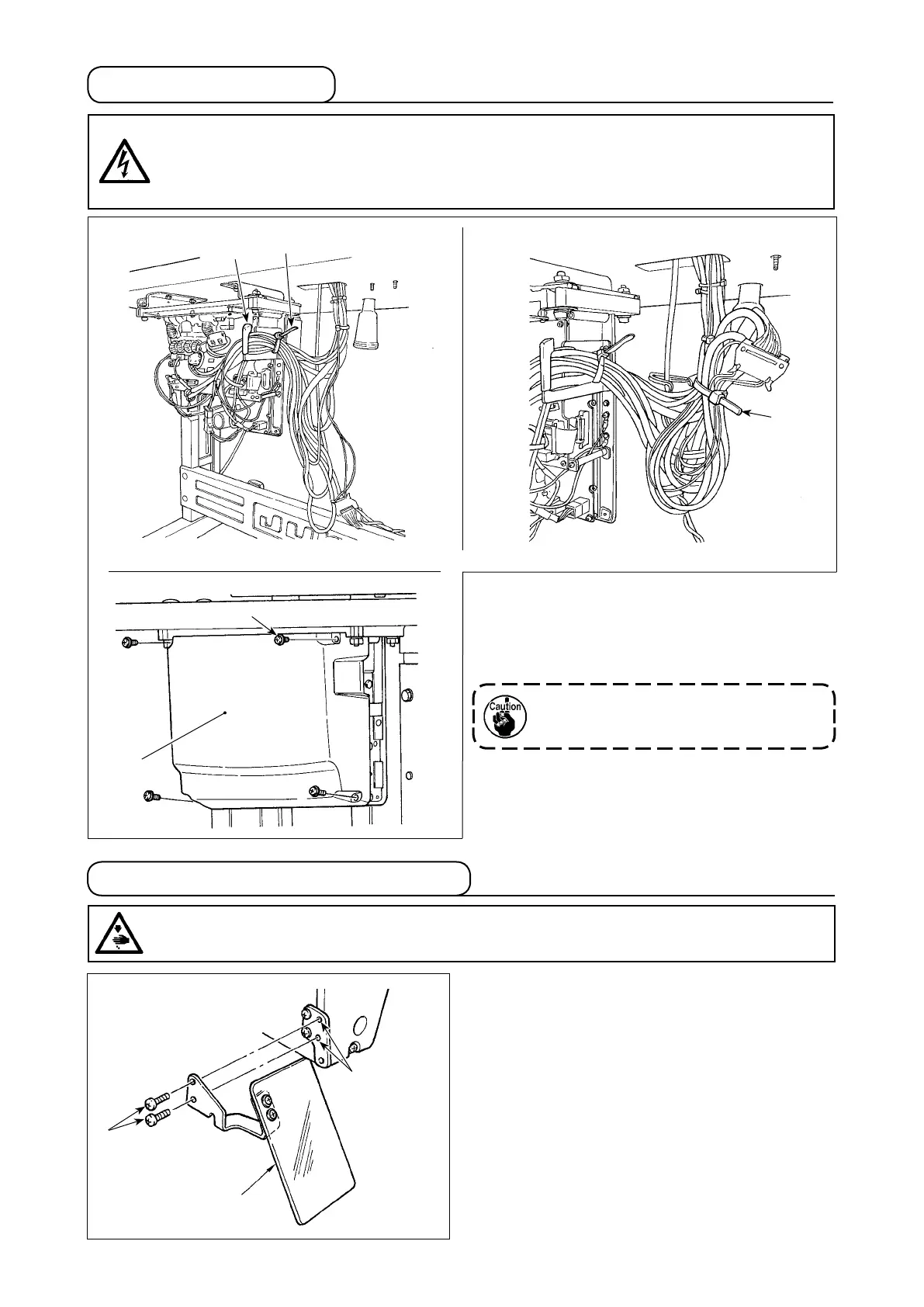

3-11. Handling the cords
Pass the cords connected inside the electrical
box through cord exit plate
❶
and x with cable
clip band
❷
. Bind the excess cord with cable clip
band
❺
as illustrated in the gure.
Install control box lid
❸
with four setscrews
❹
.
Be sure to use eye protection cover
❶
after in-
stalling it on installing section
❸
with screws
❷
.
3-12. Installing the eye protection cover
When binding the cord, tilt the sewing
machine in prior.
❶
❸
❷
DANGER :
To prevent personal injuries caused by electric shock hazards or abrupt start of the sewing
machine, carry out the work after turning OFF the power switch and a lapse of 5 minutes or more.
To prevent accidents caused by unaccustomed work or electric shock, request the electric expert
or engineer of our dealers when adjusting the electrical components.
WARNING :
Be sure to attach this cover to protect the eyes from the disperse of needle breakage.
❸
❹
❶
❷
❺
