5-6. Sewing
Solenoid type
Start
Pneumatic type (3-step pedal)

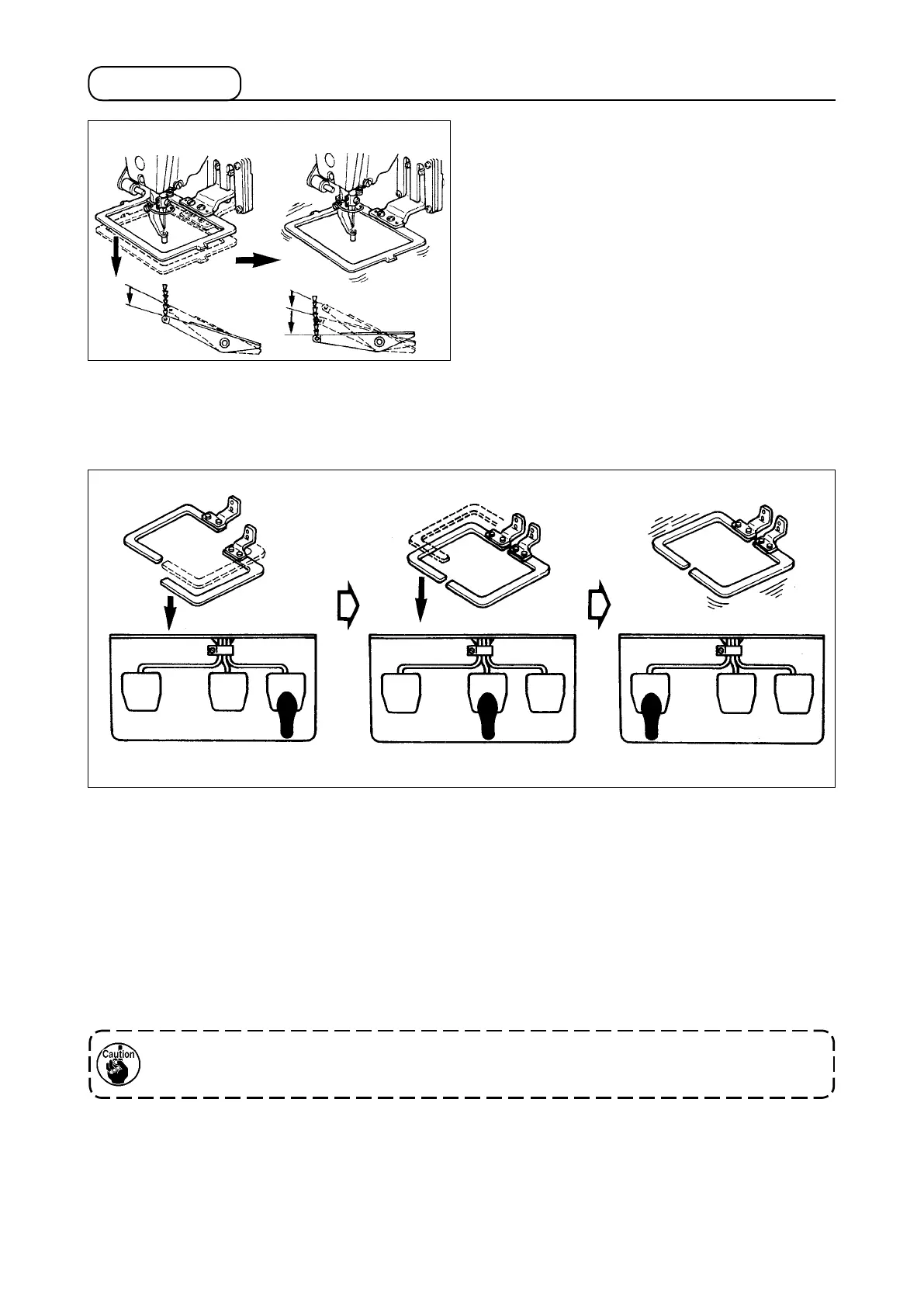

1) Set a workpiece on the work clamp foot section.
2) Depress the pedal
A
, and the right-hand work clamp foot will come down. If depressing the pedal
again, the work clamp foot will go up.
3) Depress the pedal
B
, and the left-hand work clamp foot will come down. If depressing the pedal
again, the work clamp foot will go up.
4) Depress the pedal
C
, and the sewing machine will start sewing.
5) After the sewing machine completes sewing, the work clamp feet will return to the home place, and
go up.
Pneumatic type
Right-hand work clamp foot
Left-hand work clamp foot
Solenoid type
1) Set a workpiece on the work clamp foot sec-
tion.
2) Depress the pedal switch to the rst step, and
the work clamp feet will come down. If you
detach your foot from the pedal switch, the
work clamp feet will go up.
3) Depress the pedal switch to the second step
after descending the work clamp feet, and the
sewing machine will start sewing.
4) After the sewing machine completes the
sewing, the work clamp feet will return to the
home place, and go up.
A
A AB
C
B
C
B
C
When the 3-step PK pedal is used, start the start pedal shifting to the left direction.
