1. INSTALLATION
1) Carry the sewing machine with two persons.
(Caution) Do not hold the handwheel.
2) Do not put protruding articles such as the screw-
driver and the like at the location where the sewing
machine is placed.

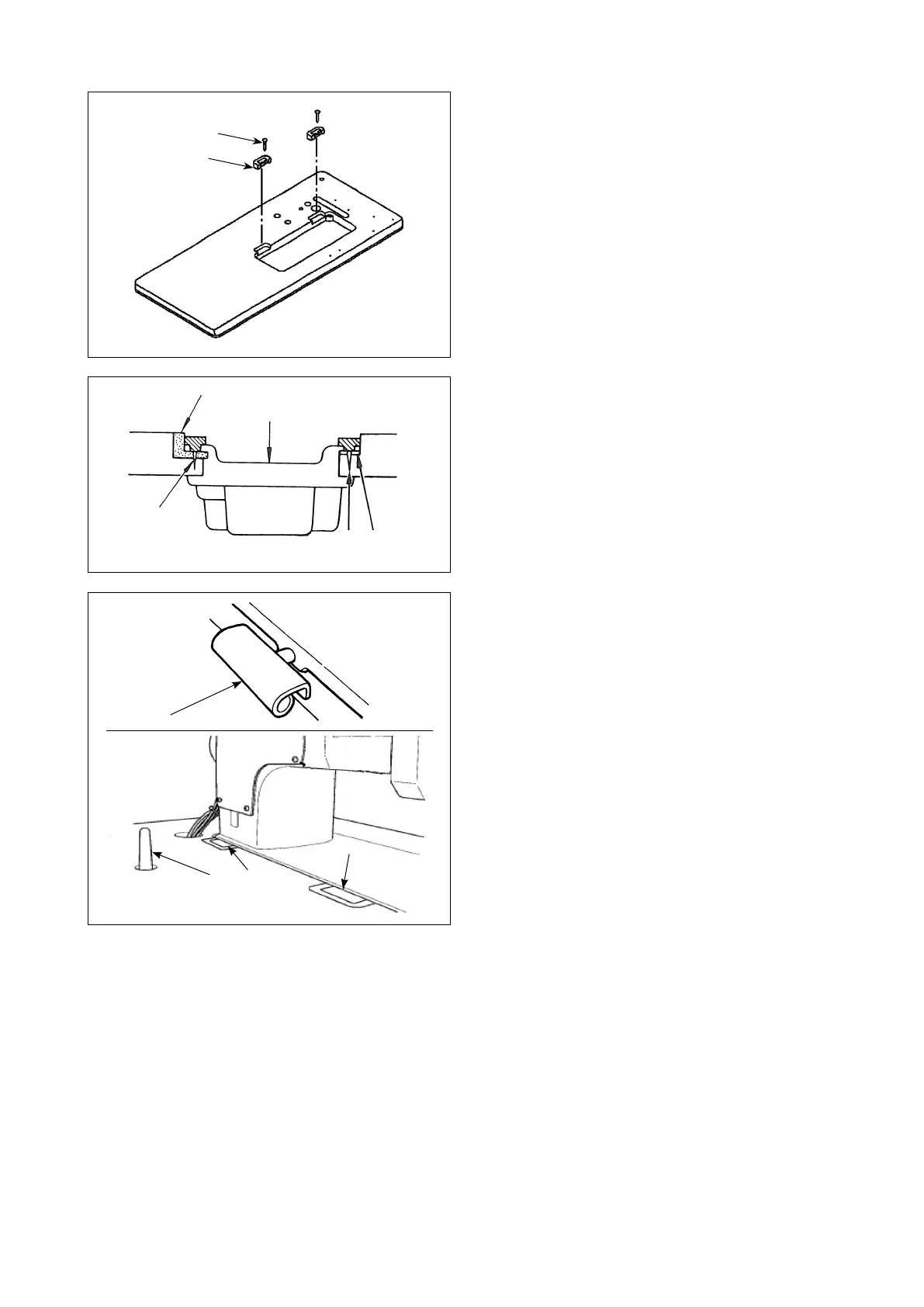

3) Attaching the hinge seats and the support rubbers of
the machine head
Fix the hinge seats
1
supplied with the machine on
the table using nails
2
.
1
2
5) Fit hinge
7
into the opening in the machine bed,
and fi t the machine head to table rubber hinge
before placing the machine head on rubber seats on
the four corners.
6) Securely attach head support rod
8
to the table
until it goes no further.
7
8
7
7
4) Attaching the oil pan
Install the oil reservoir
6
in the way that it is sup-
ported by four corners of the opening in the table. Nail
two rubber cushions
3
to a protruded edge from the
table opening at operator's side using nails
4
and also
attach two head-rest cushions
5
to a protruded edge at
the far end (hinge side) using nails
4
, and the place oil
reservoir
6
on the cushions.
3
4
5
6
4
Hinge sideOperator’s side
