– 18 –
Triangle
Looper
MH-481, MH-484
MH-481-4, MH-481-5, MH-484-4, MH-484-5
Thread spreader
Moving knife

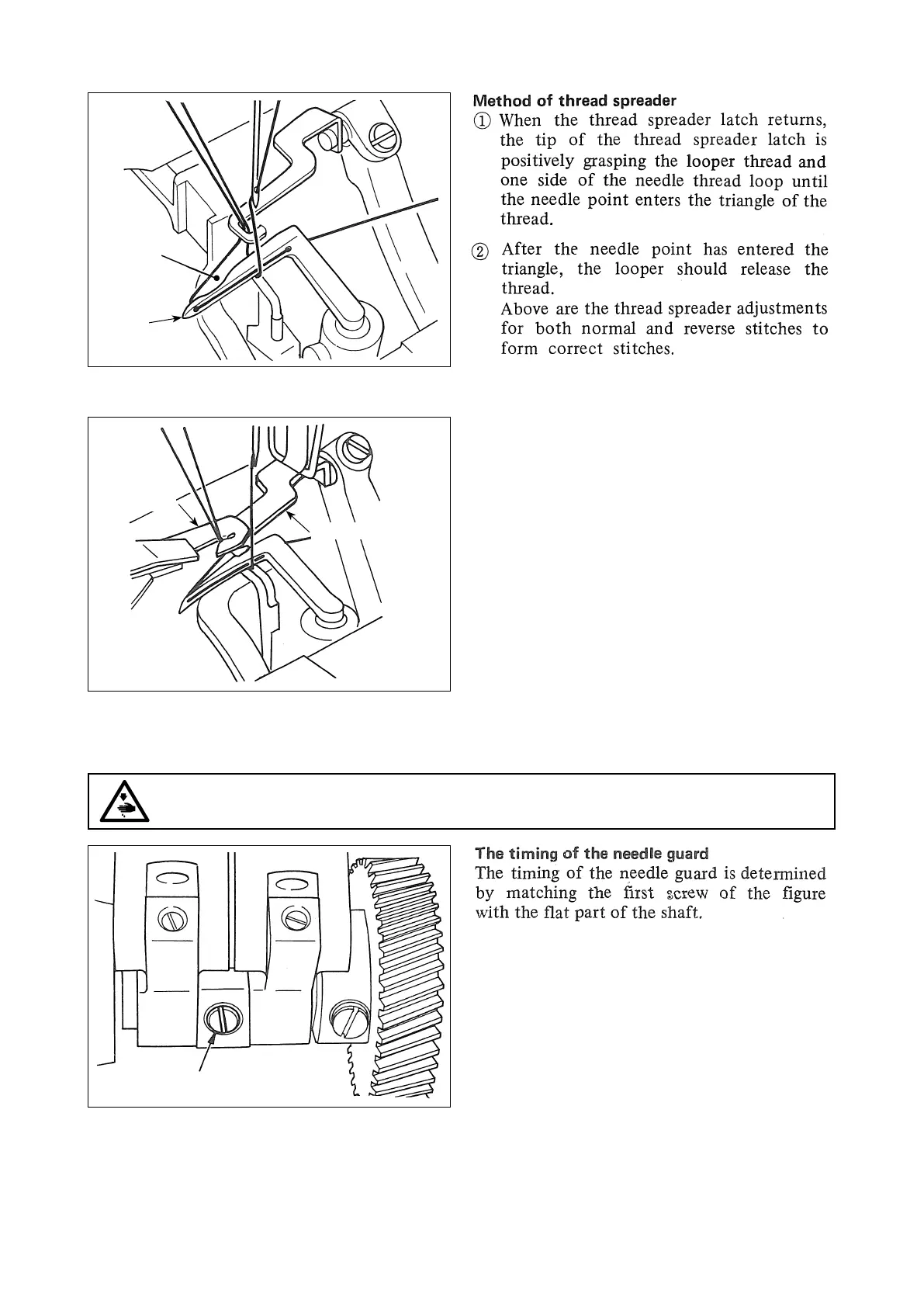

Function of the thread spreader (especially when
the threads are trimmed).
The thread spreader fi rmly holds the looper thread and
the needle thread at 2 places of a loop before the needle
goes up to it's upper dead position to stop. Then, the tip
of the moving knife comes to hook these 2 threads and
trims them off.
22. MATCHING THE MOTION OF THE NEEDLE GUARDS WITH THE LOOP GUIDE
First screw
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be
sure that the motor has totally stopped rotating in prior.
