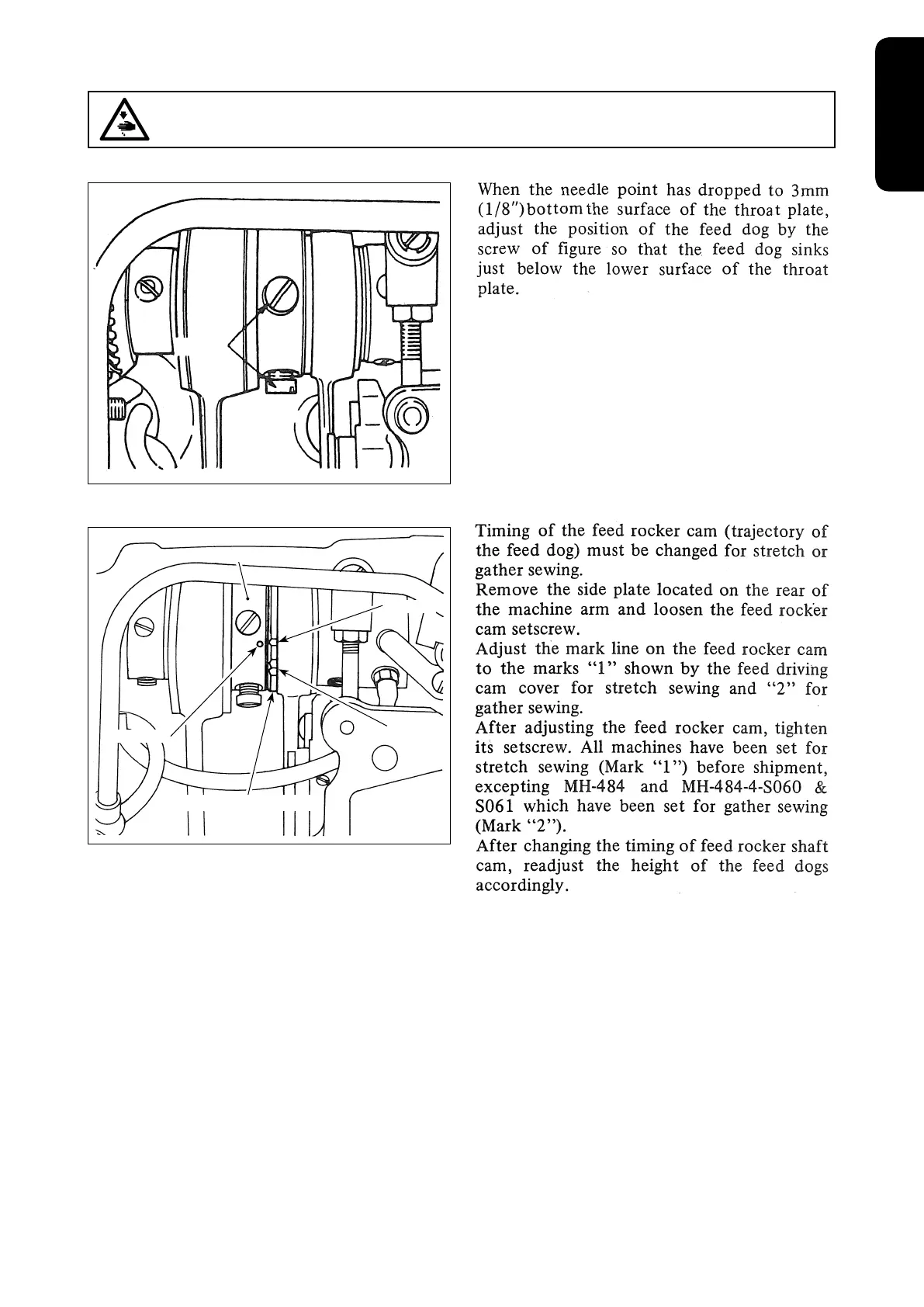

17. ADJUSTING THE FEED TIMING
Screw
[MH-481, MH-481-4, MH-481-5]
[MH-484, MH-484-4, MH-484-5]
Mark line
Feed locker cam
Feed driving cam cover
Mark ”1”
Mark ”2”
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be
sure that the motor has totally stopped rotating in prior.
