– 11 –
ENGLISH
Feed rocker shaft
15. HEIGHT AND ANGLE OF THE PRESSER FOOT
Presser bar clamp screw

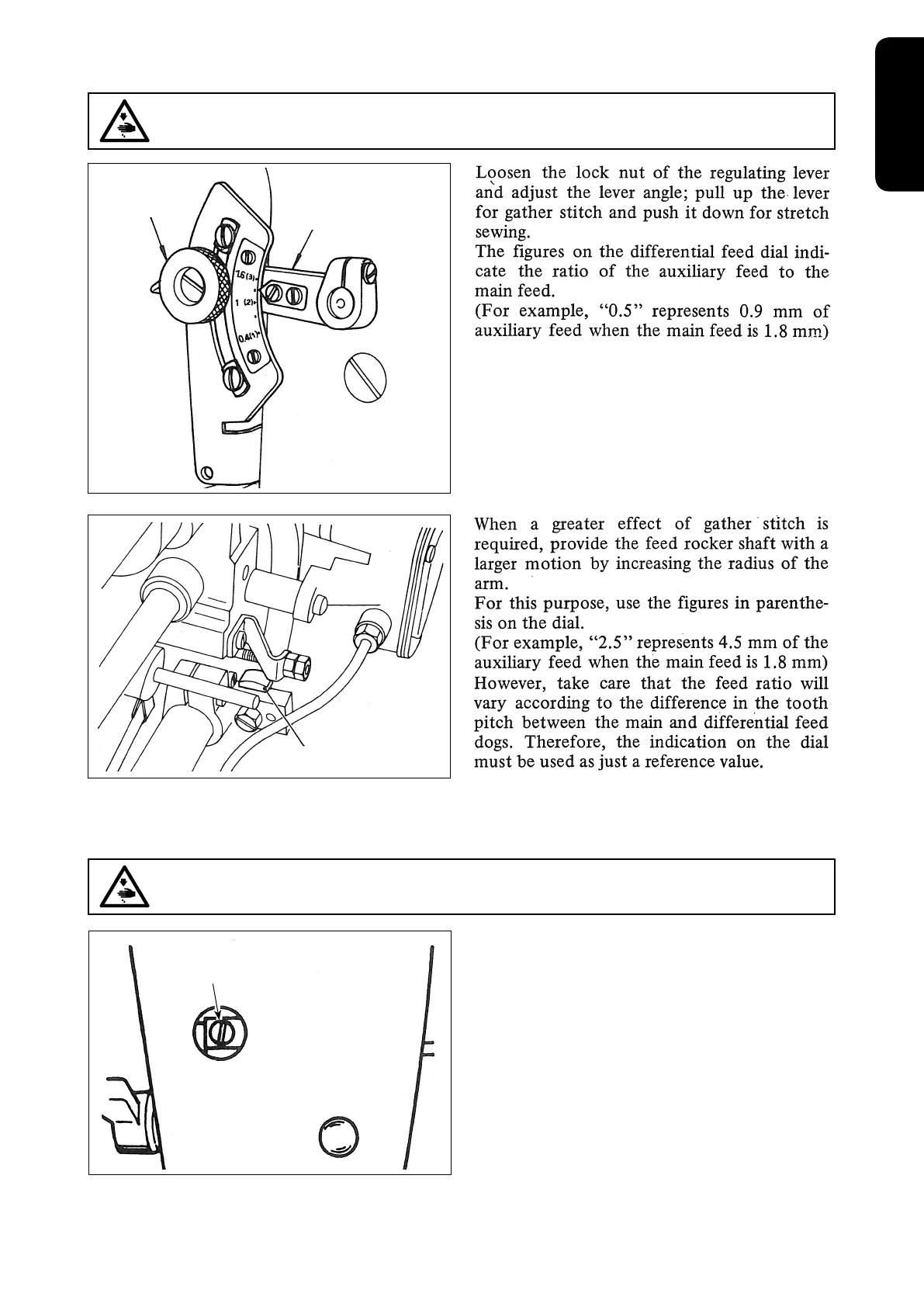

14. DIFFERENTIAL FEED ADJUSTMENT (MH-484, MH-484-4, MH-484-5)
Rock nut
Regulating lever
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be
sure that the motor has totally stopped rotating in prior.
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be
sure that the motor has totally stopped rotating in prior.
When the height or the direction of the presser bar is to
be changed due to the exchange of presser foot:
1. Remove the rubber plug of the face plate.
2. From this hole, adjust by loosening the presser bar
clamping screw.
3. After the adjustment, securely tighten the set screw.
To Next Page
