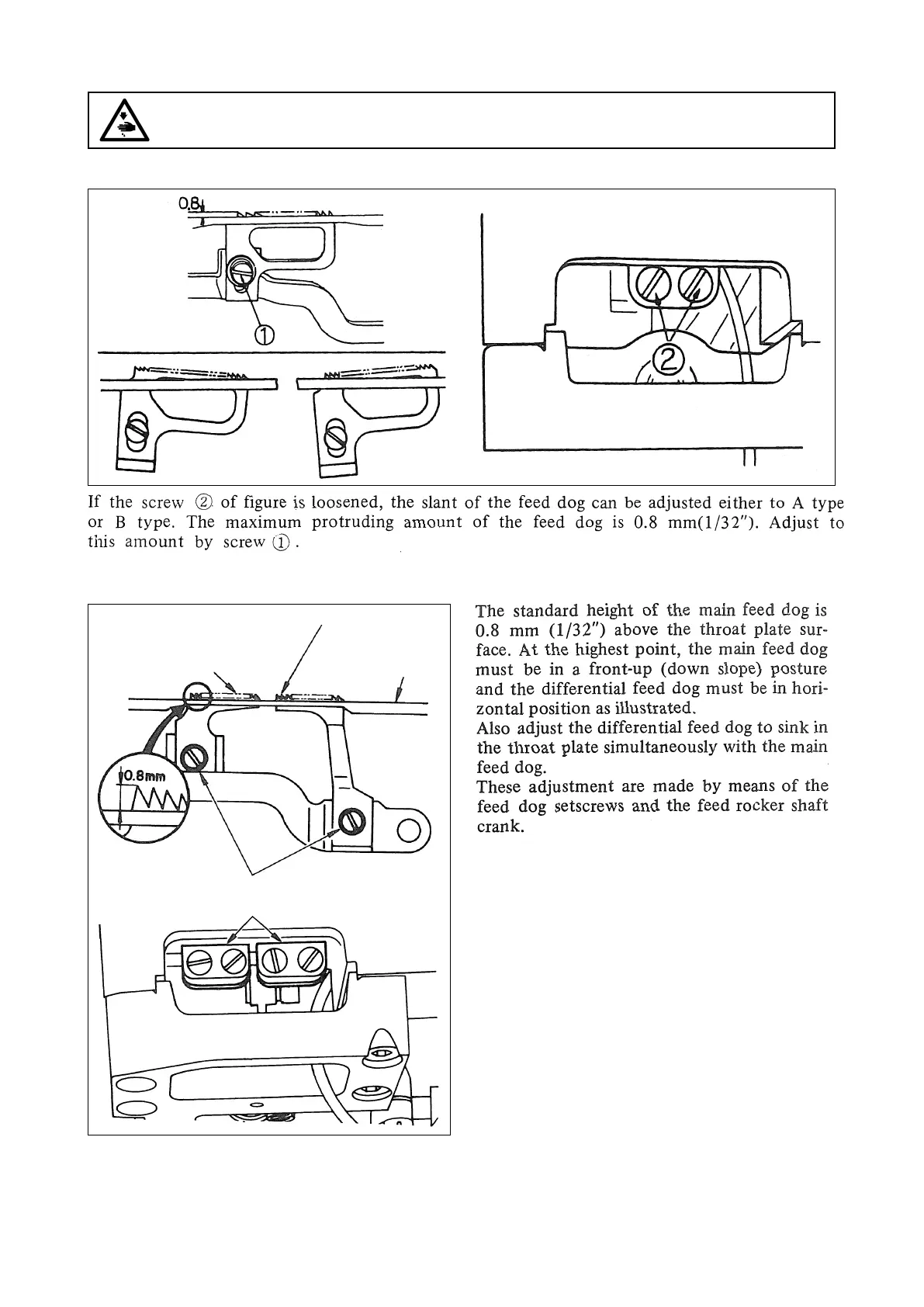

16. ATTACHING THE FEED DOG
[MH-481, MH-481-4, MH-481-5]
[MH-484, MH-484-4, MH-484-5]
Main feed dog
Differential feed god
Throat plate
Feed dog set screw
Feed rocket shaft crank
B type
Standard
A type
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be
sure that the motor has totally stopped rotating in prior.
