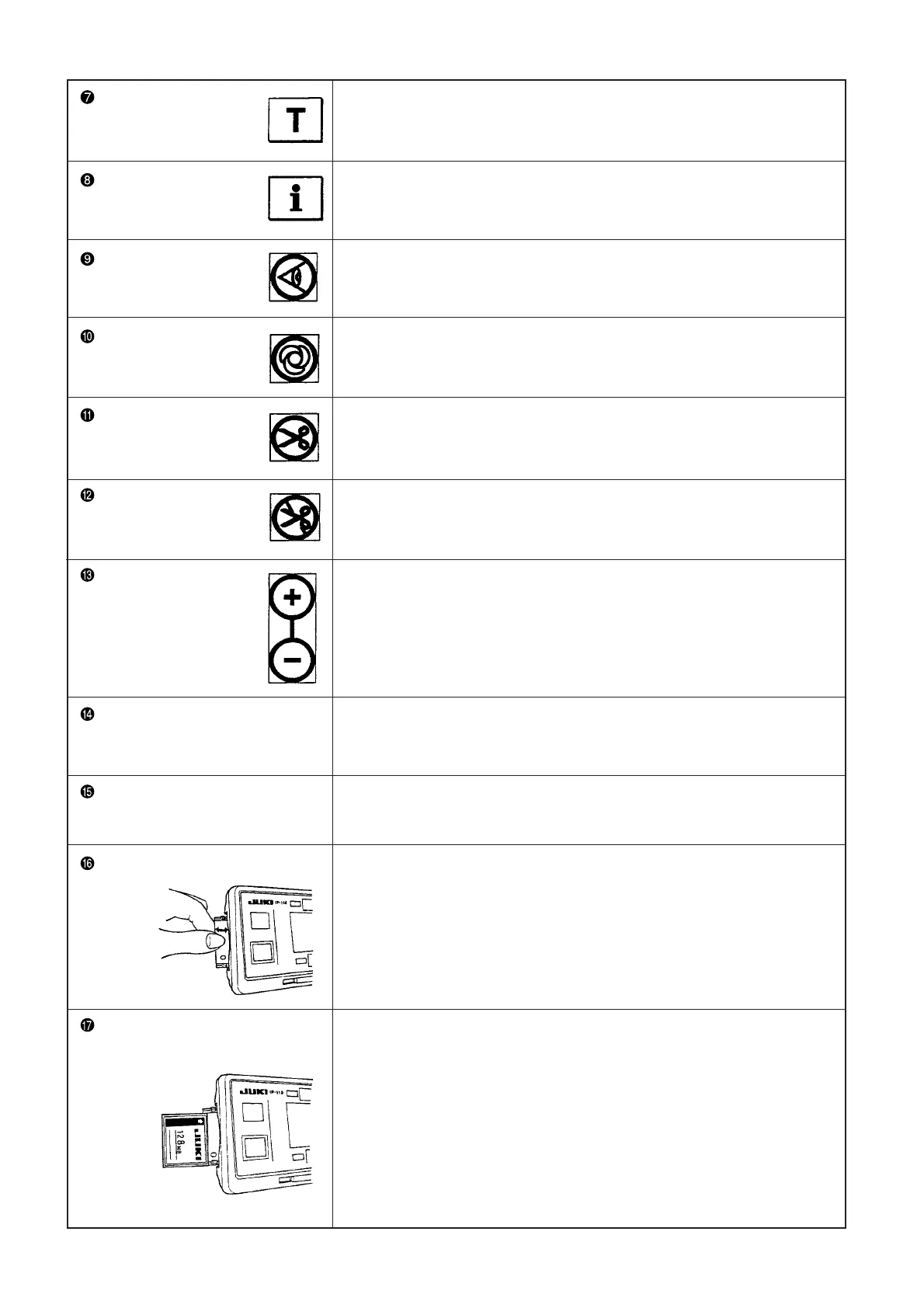

Teaching switch This is the switch to set the setting of the number of stitches with the
value of number of stitches which has been actually sewn.
Information switch This is the switch to perform various function settings.
Material edge sensor Rendered effective when the material edge sensor is installed on the machine.
switch Used for selecting whether or not the material edge sensor is used during sewing.
One-shot stitching When this switch is set to effective at the time of program stitching, the
switch sewing machine automatically operates up to the specified number of
stitches.
With/without automatic When this switch is set to effective at the time of program stitching, the
thread trimmer switch sewing machine automatically performs thread trimming when the speci-
fied number of stitches has been completed.
Thread trimming This switch prohibits all thread trimmings.
prohibiting switch * This switch cannot be used with the sewing machine which is not provided
with the automatic thread trimming device.
Counter value setting This is the switch to set the value of bobbin thread counter of No. of pcs. counter.
switch
Max. speed limitation variable When moving the resistor in the left direction, max. speed is limited.
resistor
Power display lamp This lamp lights up when the power switch is turned ON.
Media slot cover This is the cover for media inserting opening.
To open the cover, place your finger on the notch located on the side of the cover
as shown in the figure and push the cover in the direction of left slanting rear.
* There are some functions that are not able to be operated with the cover opened.
Do not close the cover unless compact flash (TM) is completely inserted.
Media slot To set compact flash (TM), place the label face of the compact flash (TM) to the
(Media inserting opening) front and insert the part that has a small hole (place the notch of the edge to the
rear) to the panel.
To remove the compact flash (TM), hold it between your fingers and draw
it out.
*When the inserting direction of the compact flash (TM) is wrong, the
panel and the compact flash (TM) may be damaged. Do not insert any-
thing other than the compact flash (TM).
